12U Hinged Open Frame Wall-Mount Server Rack - 22 in. Deep
Wall-mount your server or networking equipment with a hinged rack design for easy access and maintenance

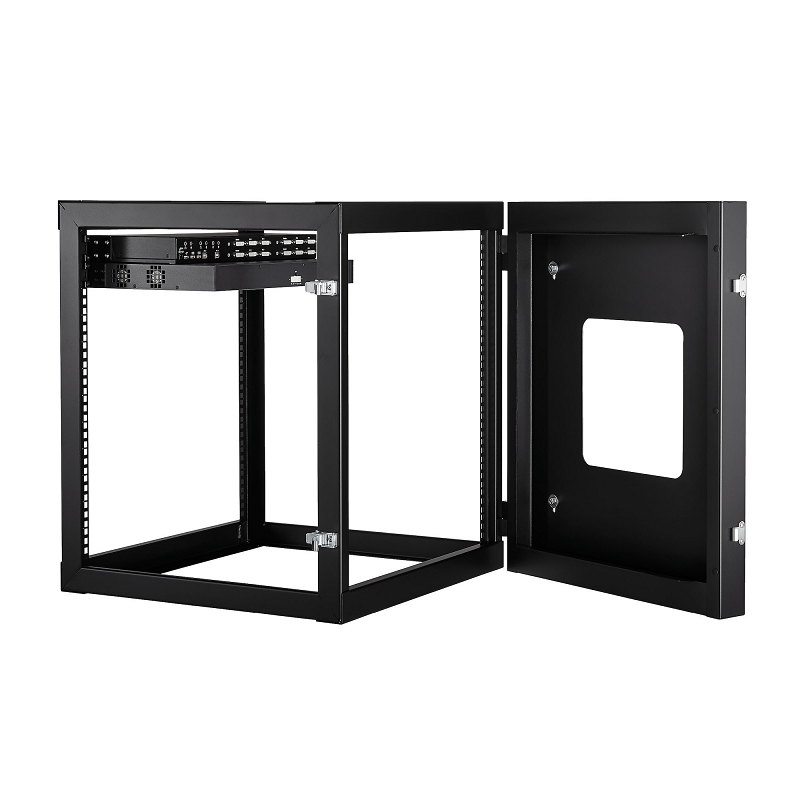

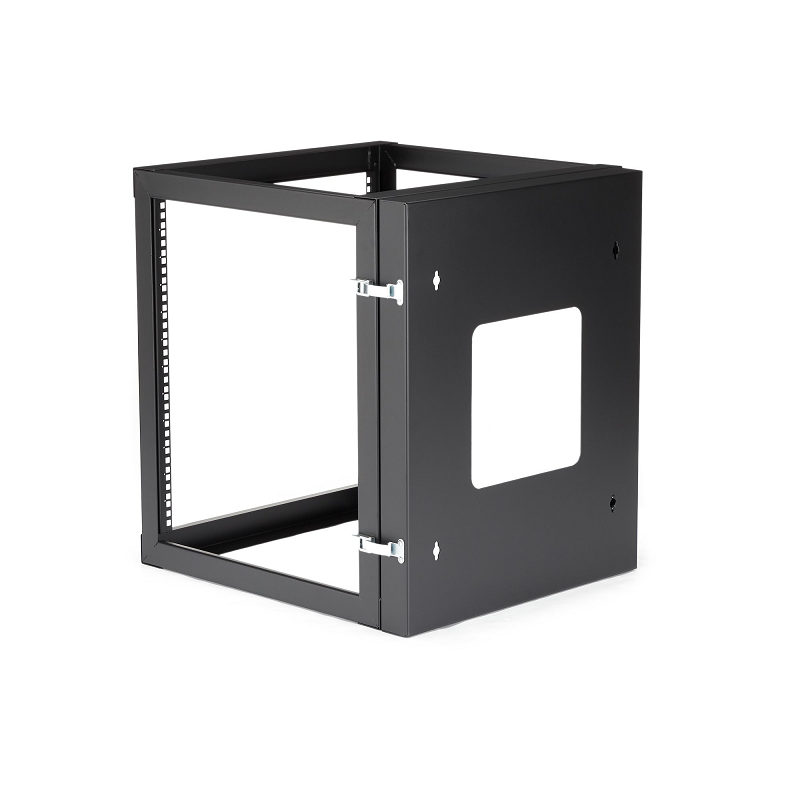

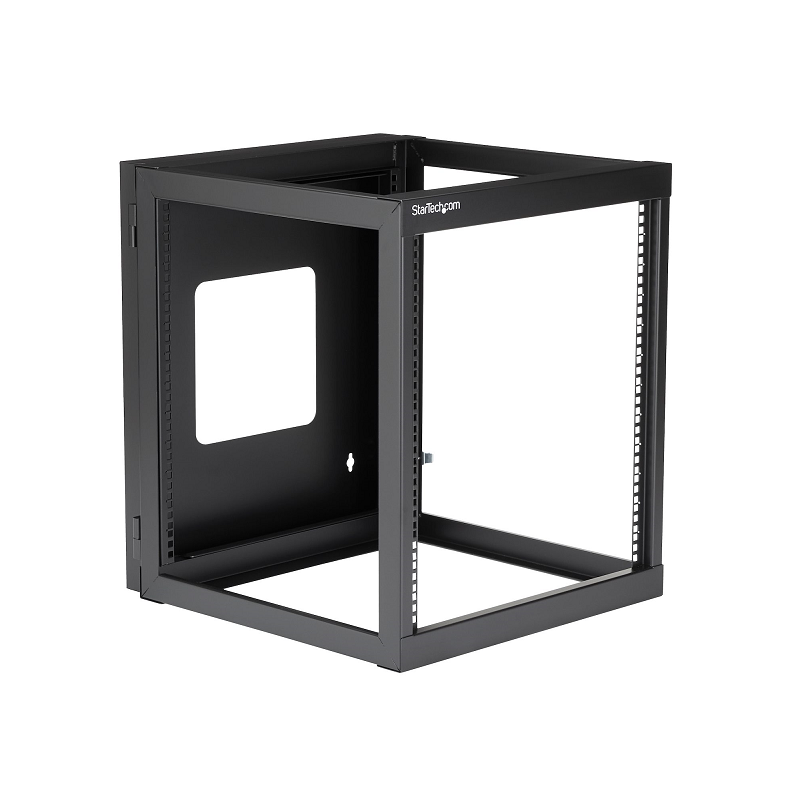

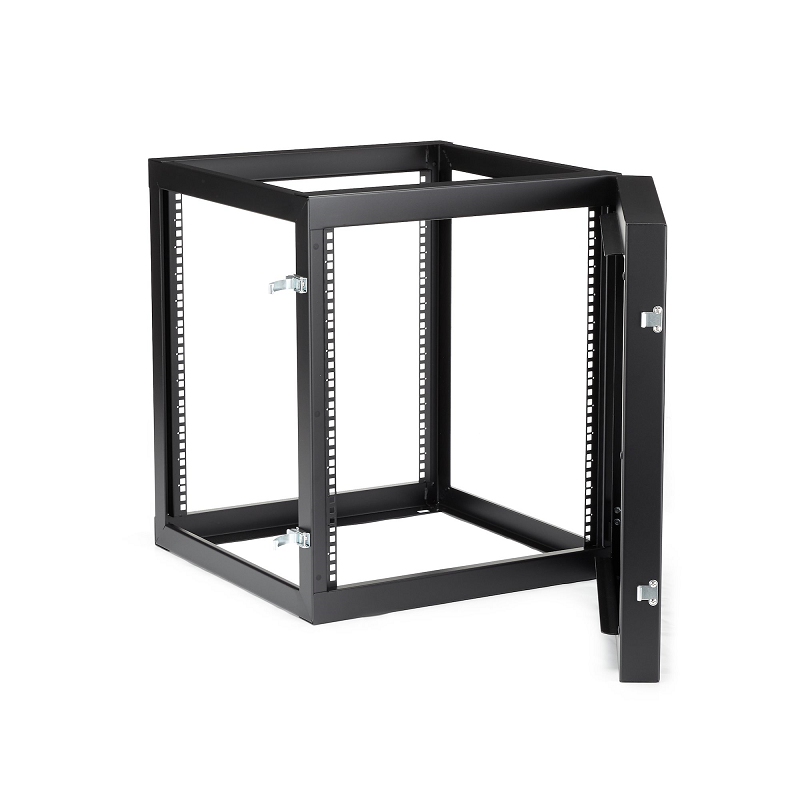

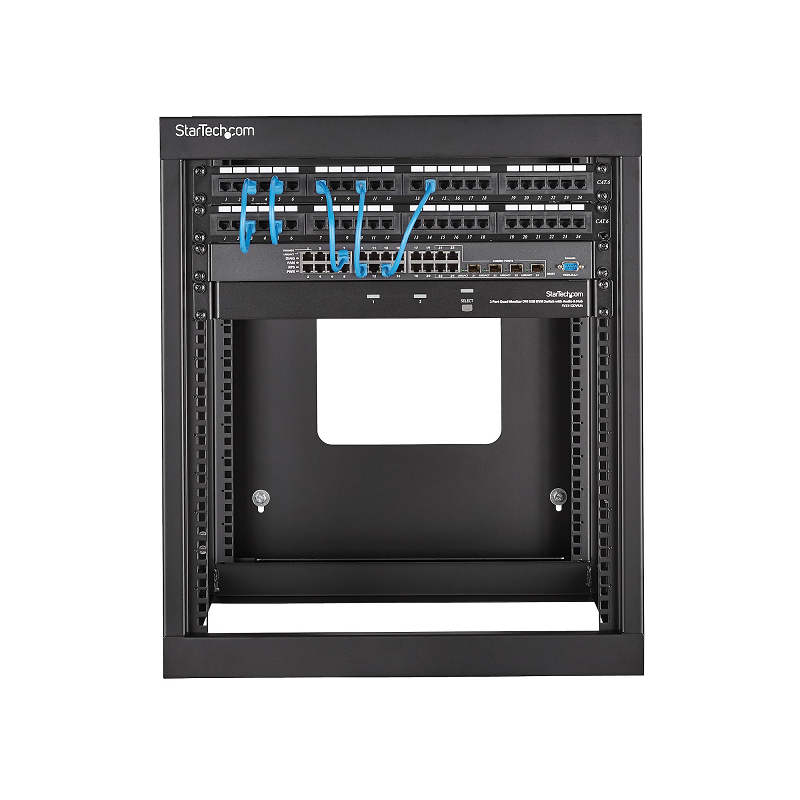

The RK1219WALLOH 12U 22in Depth Hinged Open Frame Wall Mount Server Rack lets you wall mount your (19-inch wide) servers, A/V or network equipment and features a hinged rack design that allows the entire frame to swing open for easy installation and maintenance of your equipment.

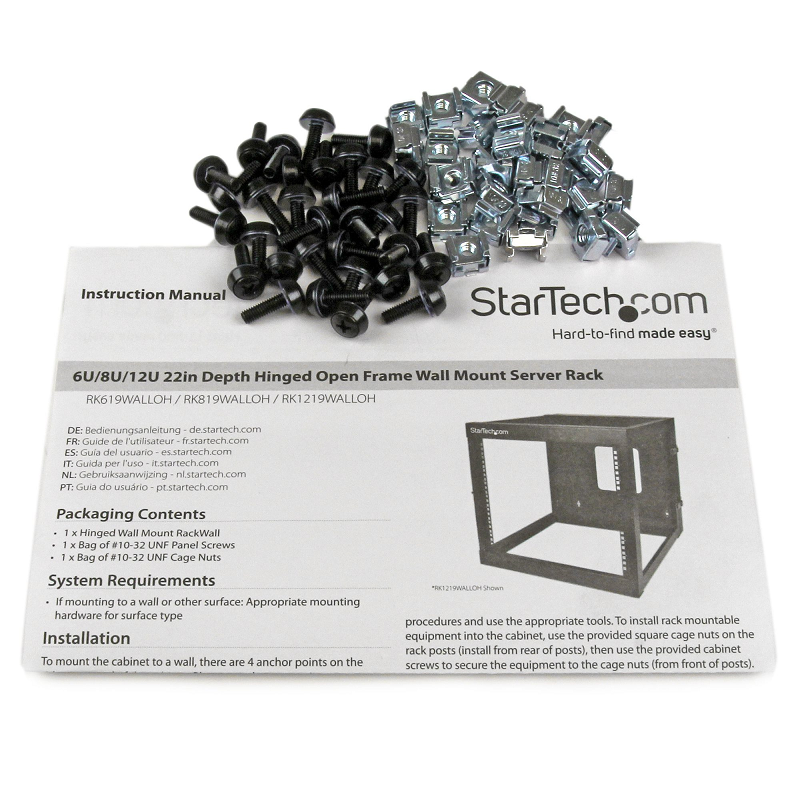

The 12U wallmount rack offers a 4 post design for additional support of your equipment, storing a maximum weight capacity of 63 kg (140 lbs). Constructed of high-quality SPCC cold-rolled steel for strength and durability, the open frame wallmount server rack allows for maximum airflow, and ships complete with all of the rack screws and cage nuts required to mount your equipment, saving the expense of purchasing them separately.
Backed by a StarTech.com Lifetime warranty.
Features | |
Key lock | No |
Frame type | Open |
Design | 4-post |
Rack capacity | 12U |
Castor wheels | No |
Adjustable mounting rails | No |
Cable management | No |
Mounting hole shape | Square |
Front door key lock | No |
Type | Wall mounted rack |
Maximum weight capacity | 63.4 kg |
Material | Steel |
Product colour | Black |
Certification | RoHS, CE, UL, TAA |
Technical details | |
Type | Wall mounted rack |
Compliance industry standards | EIA-310-D, EIA RS310-D |
Rack capacity | 12U |
Weight & dimensions | |
Width | 556 mm |
Height | 647 mm |
Depth | 600 mm |
Weight | 18 kg |
Inner width | 505 mm |
Mounting depth (max) | 50.7 cm |
Maximum weight capacity | 63.4 kg |
Packaging data | |
Package width | 635 mm |
Package height | 718 mm |
Package depth | 660 mm |
Package weight | 20.7 kg |
Manual | Yes |
Nuts included | Yes |
Number of nuts | 48 |
Screws included | Yes |
Number of screws | 48 |
Full specification and details can be found in the PDF file
An instruction manual can be found in the PDF file

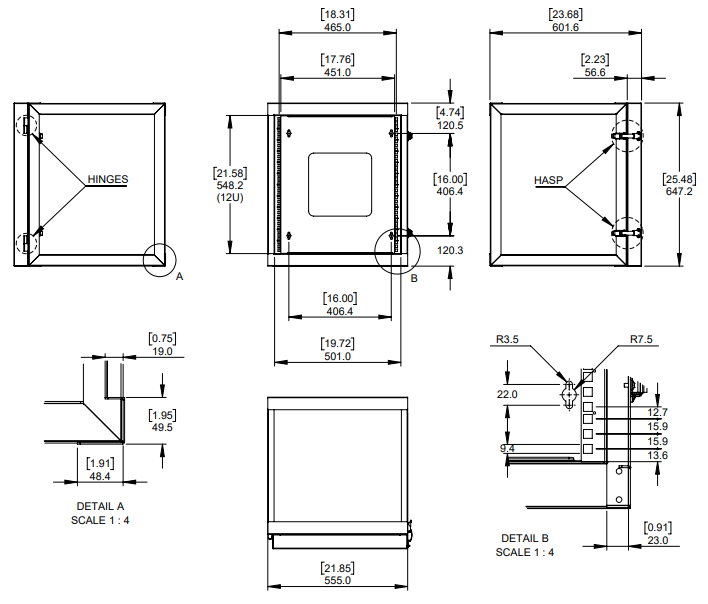

A product diagram can be found in the PDF file
