| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FESV831DVIU |
| Manufacturer No: | SV831DVIU |
| Delivery: | In Stock: Next Day |
 |

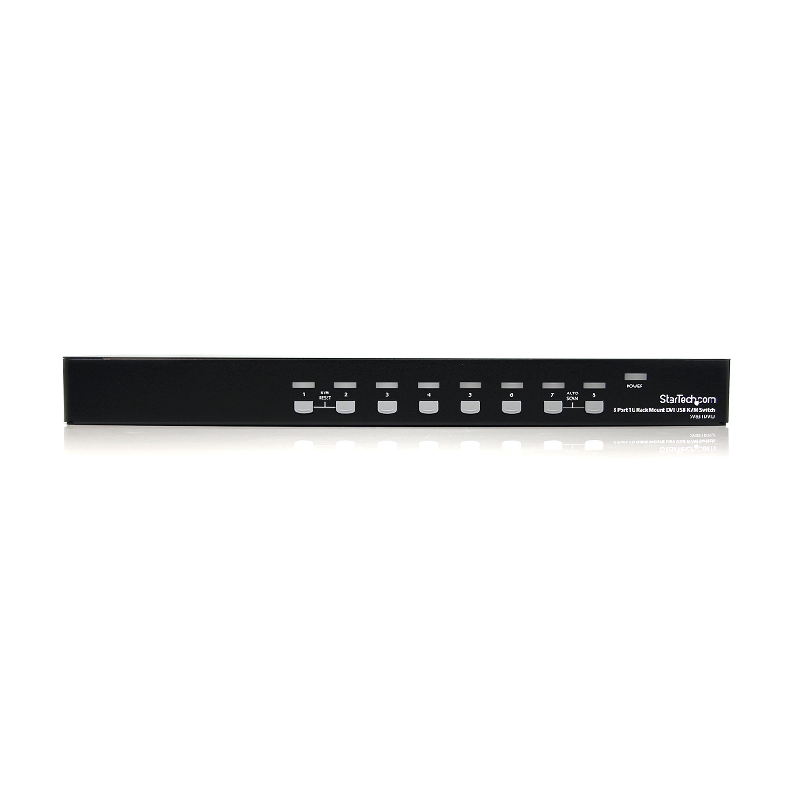

8 Port 1U Rackmount DVI USB KVM Switch
Control up to 8 USB computers with DVI or HDMI® video, from one keyboard, mouse and monitor

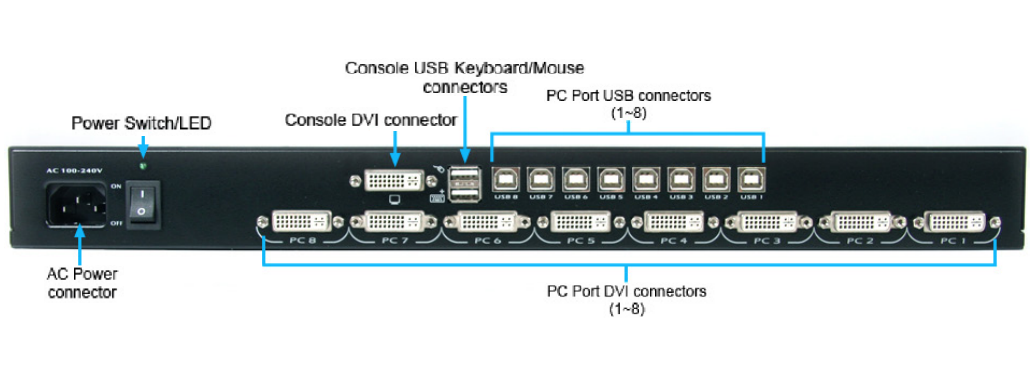

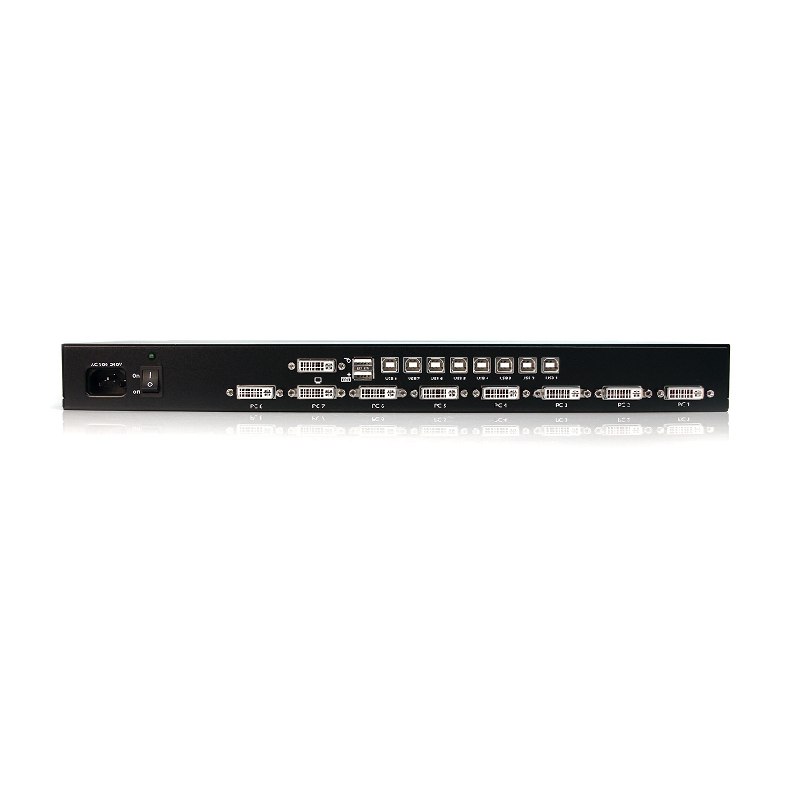

The SV831DVIU 8-Port 1U Rack Mount DVI USB KVM Switch lets you control up to 8 USB-connected computers (each with DVI or HDMI display output) from a single keyboard, mouse and monitor.

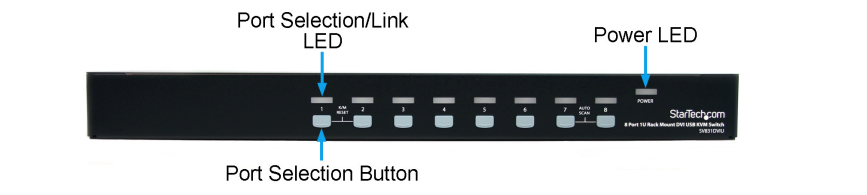

The KVM switch offers maximum control, allowing you to switch computers using hot-key commands or front panel push-buttons. Supporting digital resolutions up to 1920x1200 via DVI or HDMI connection (using DVI to HDMI adapter - see accessories), the KVM provides the high resolutions recommended for newer displays, allowing you to take full advantage of your monitor/screen capability.
A perfect addition to any server room or software test lab, this 8-port switch can be rack-mounted into 1U of cabinet space.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
Note: This KVM supports digital signals only, and cannot be used with DVI-to-VGA adapters.
| Technical details | |
| Product colour | Black |
| Rack mounting | Yes |
| LED indicators | Yes |
| LED indicators | Yes |
| IP control | Yes |
| Sustainability certificates | RoHS |
| Video | |
| Maximum resolution | 1920 x 1200 pixels |
| Maximum analog resolution | 1920 x 1200 pixels |
| Ports & interfaces | |
| Number of computers controlled | 8 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-I |
| Audio connections | No |
| USB 2.0 ports quantity | 10 |
| Performance | |
| Daisy chain | No |
| Maximum resolution | 1920 x 1200 pixels |
| Maximum analog resolution | 1920 x 1200 pixels |
| Design | |
| Mean time between failures (MTBF) | 45254 h |
| Product colour | Black |
| Rack mounting | Yes |
| LED indicators | Yes |
| Hot keys | Yes |
| Certification | CE, FCC |
| Rack capacity | 1U |
| Housing material | Steel |
| Power | |
| Input current | 1.8 A |
| Output current | 4 A |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, UK, US |
| Output voltage | 12 V |
| AC input voltage | 100-240 V |
| External power adapter | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80 % |
| Weight & dimensions | |
| Width | 438 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Weight | 3.5 kg |
| Packaging data | |
| Package width | 265 mm |
| Package depth | 595 mm |
| Package height | 90 mm |
| Package weight | 3.77 kg |
| Manual | Yes |

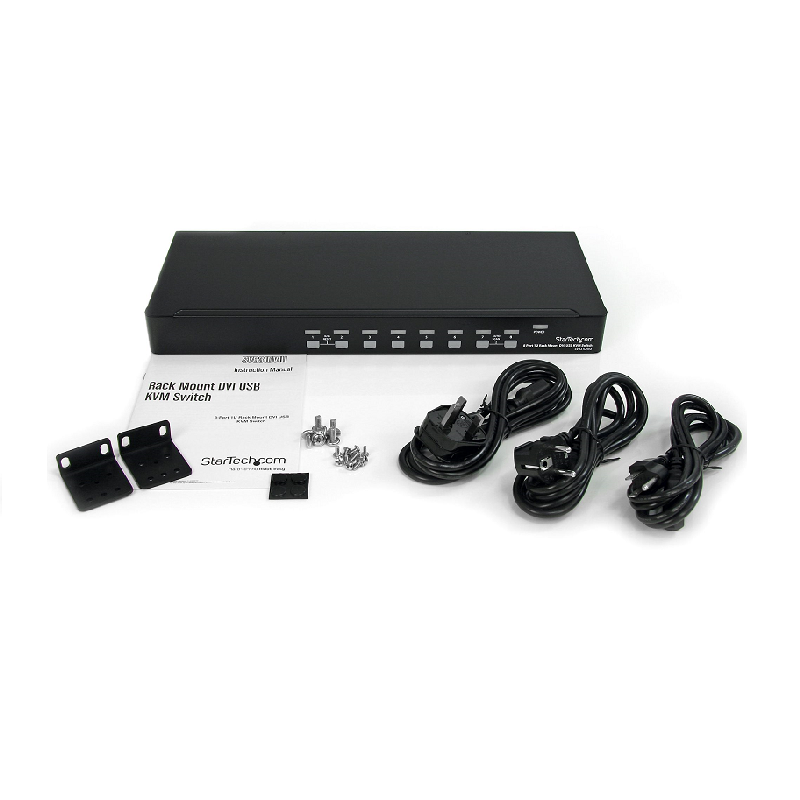

| Rack mount kit | Yes |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
A product diagram can be found in the PDF file
