Rackmount KVM Console HD 1080p - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF
Control your server or KVM switch from a centralized HD KVM console

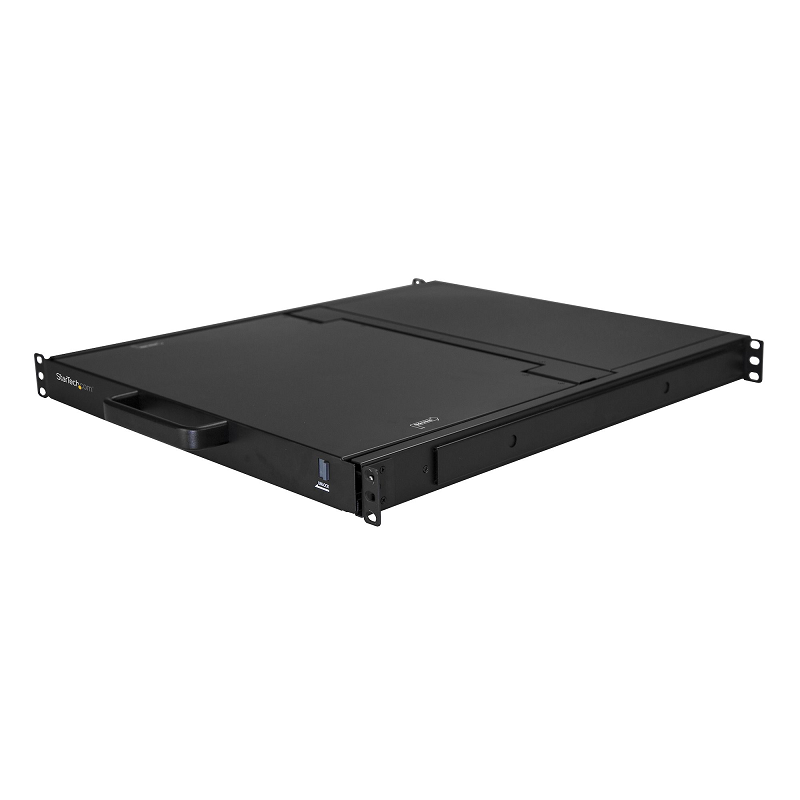

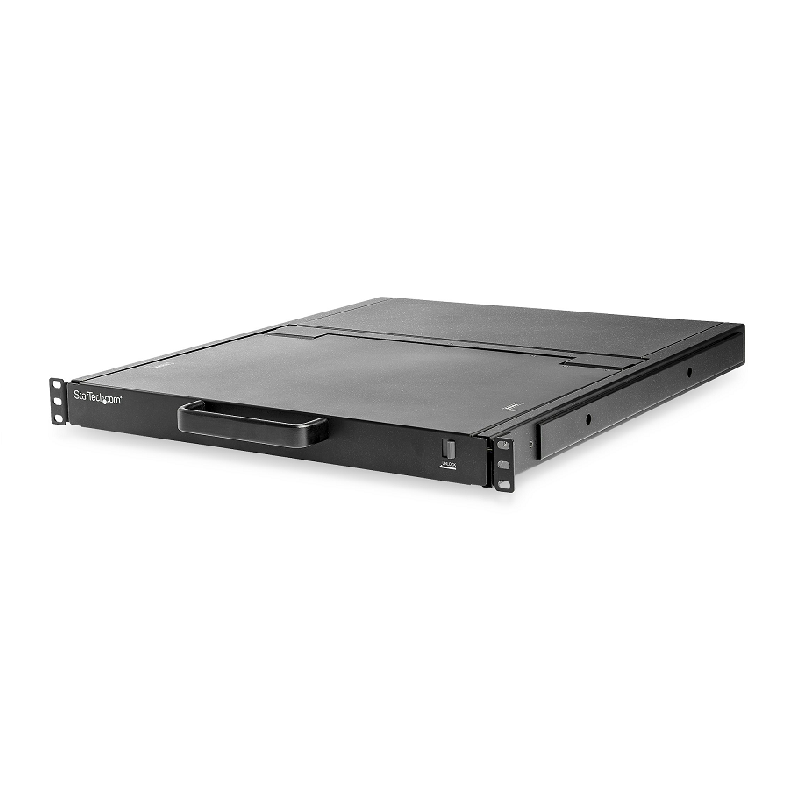

Providing centralized control of your single PC or dozens of servers, this HD rackmount KVM console also gives you easy access to and visibility of your system while it’s mounted in a server rack or cabinet. Connected to your servers through a separate KVM switch (sold separately), the LCD console installs into 1U of rack-space, offering a space-efficient solution for complete console control.
The 1080p KVM console’s monitor is 17.3” and LED back-lit, for low power consumption. It supports high-definition resolutions up to 1920x1080 providing sharper video performance. This HD console also provides more screen space, helping you to run multiple applications on the same screen, increasing your productivity.

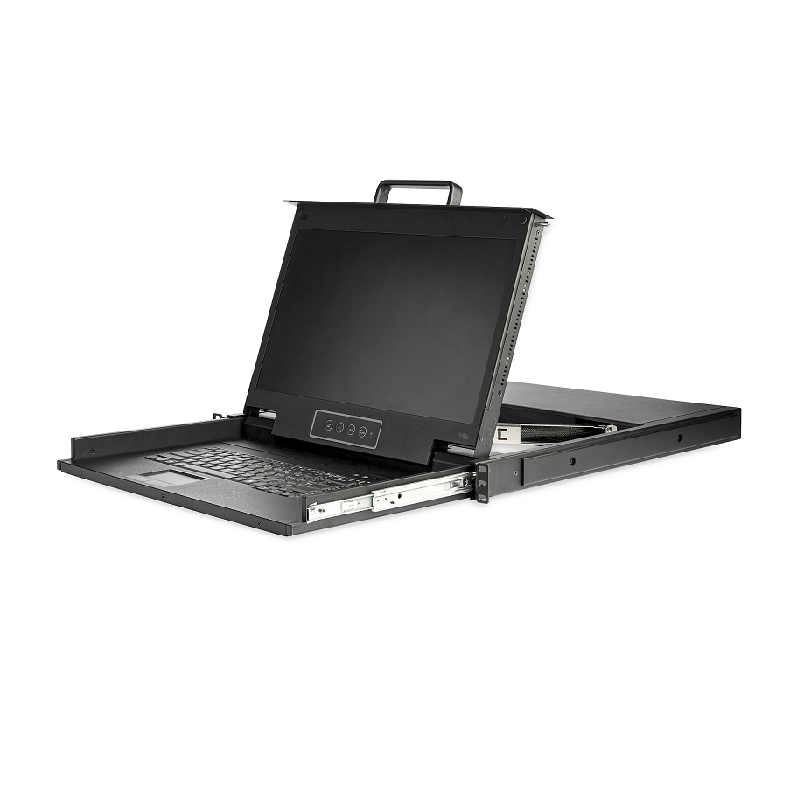

The rack-mount LCD console slides out from 1U of rack space, enabling you to easily monitor and control a single server or multiple servers when connected through a KVM switch. The rackmount VGA KVM features a handle that makes it easy to slide the console in and out of the server rack, keeping your area organized and clutter-free.

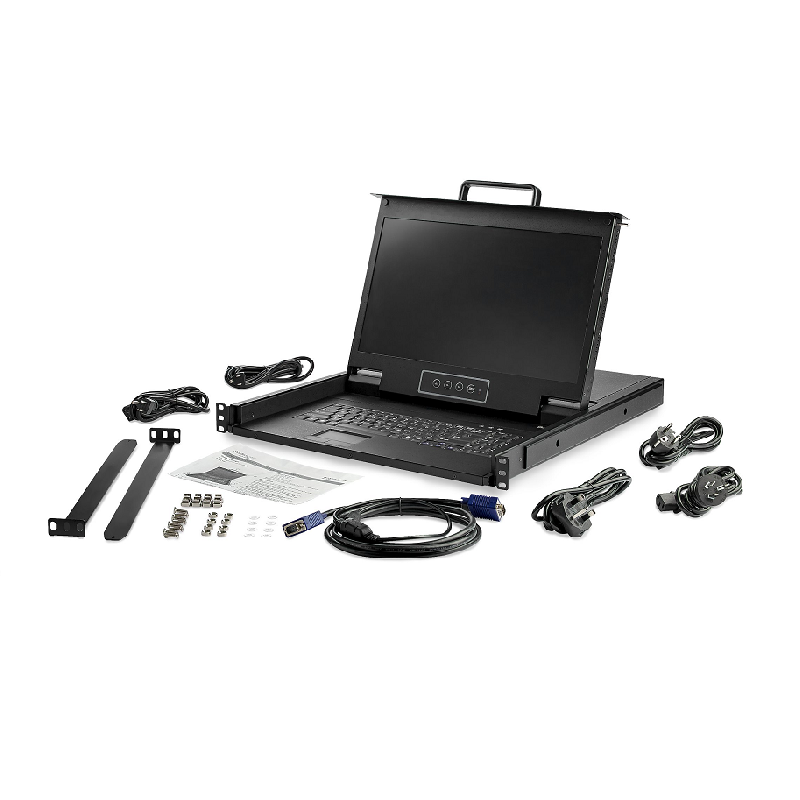

This single-port KVM console comes with everything you need to set up:
• 1 Audio Cable
• 1 Set of KVM Cables (VGA)
• 2 Rear Mounting Brackets
• M5 Cage Nuts and Screws

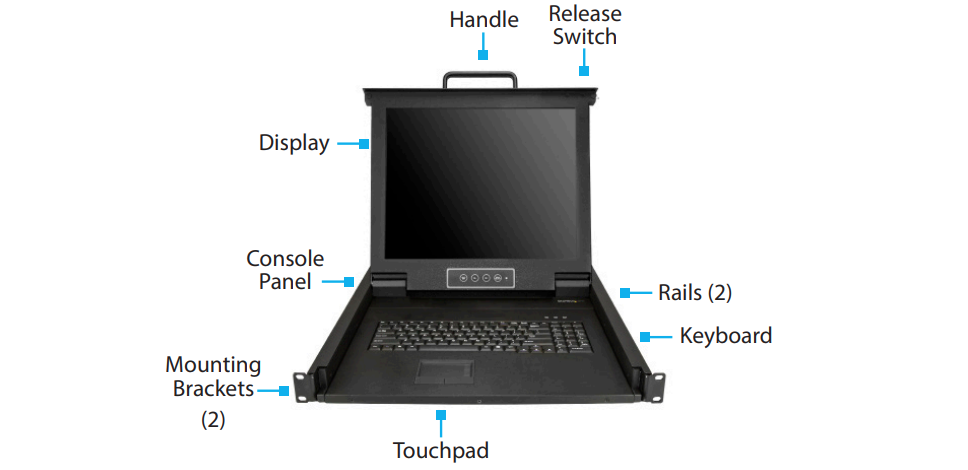

This KVM console provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in keyboard and a touchpad for intuitive control, as well as a high-definition LCD display.
StarTech.com offers a wide selection of KVM consoles to help you access your systems more efficiently without the expense and clutter of extra peripherals. This rackmount KVM console is backed by a 2-year warranty and free lifetime technical support.
Display | |
Display number of colours | 262144 colours |
Display type | LCD |
Display | TFT LCD |
Display diagonal | 43.9 cm (17.3") |
Viewing angle, vertical | 170° |
Viewing angle, horizontal | 170° |
Pixel pitch | 0.1989 x 0.1989 mm |
Display resolution | 1920 x 1080 pixels |
Display brightness | 300 cd/m² |
Contrast ratio (typical) | 800:1 |
Aspect ratio | 16:9 |
Colour depth | 6 bit |
Technical details | |
Daisy chain | No |
LED indicators | Power, Status |
Rack mounting | Yes |
Rack capacity | 1U |
Operating relative humidity (H-H) | 10 - 80 % |
Mean time between failures (MTBF) | 50000 h |
Material | Steel |
Product colour | Black |
Cables included | KVM |
IP control | No |
Audio support | No |
Cable length | 1.8 m |
Sustainability certificates | RoHS |
Power | |
AC adapter input voltage | 100 - 240 V |
Input current | 1.5 A |
Power consumption (typical) | 13 W |
Operational conditions | |
Storage temperature (T-T) | -20 - 60 °C |
Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions | |
Width | 483 mm |
Depth | 43 mm |
Height | 565 mm |
Weight | 11.2 kg |
Mounting depth (min) | 51 cm |
Mounting depth (max) | 85 cm |
Packaging data | |
Package width | 615 mm |
Package depth | 765 mm |
Package height | 185 mm |
Package weight | 16 kg |
Quick installation guide | Yes |
Screws included | Yes |
Number of screws | 8 |
Cage nuts included | Yes |
Number of cage nuts | 8 |
Cables included | KVM |
Included power plug types | ANZ, EU, JP, NA, UK |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
A user quick start guide can be found in the PDF file
