Product Code: | |
Options: | |
Qty: | |
Unit Price: | £ |
8 Port Rackmount KVM Console w/ 6ft Cables - Integrated KVM Switch w/ 17" LCD Monitor - Fully Featured 1U LCD KVM Drawer- OSD KVM - Durable 50,000 MTBF - USB + VGA Support
KVM Console | 1U | VGA | 1280x1024 | Cables & Mounting Hardware Included
Providing centralized control of up to eight servers, this 8-port rackmount KVM console gives you easy access to your systems. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.

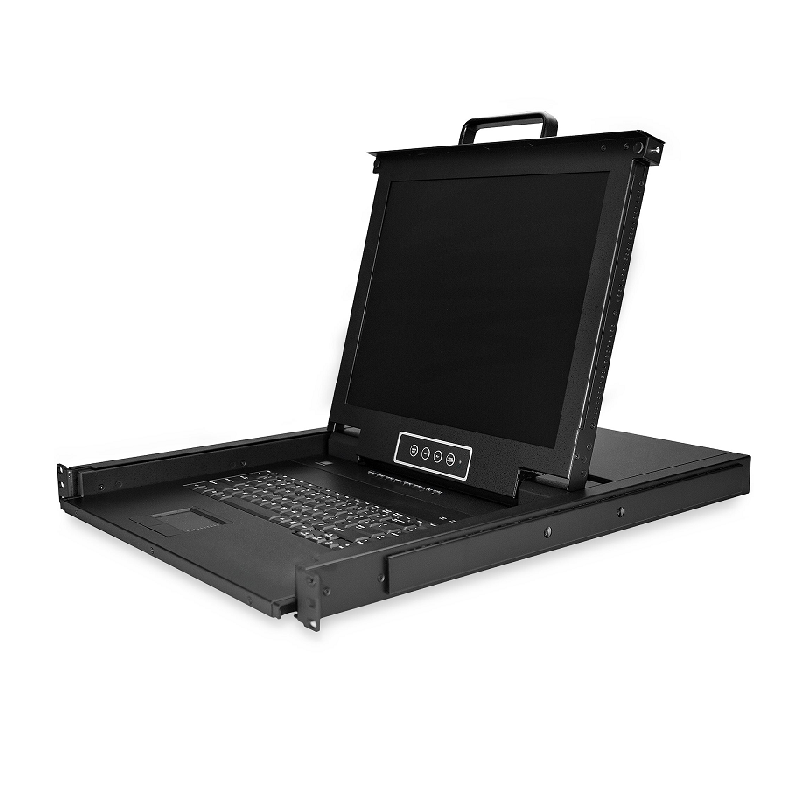

The 1U rackmount console features a built-in keyboard, a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.

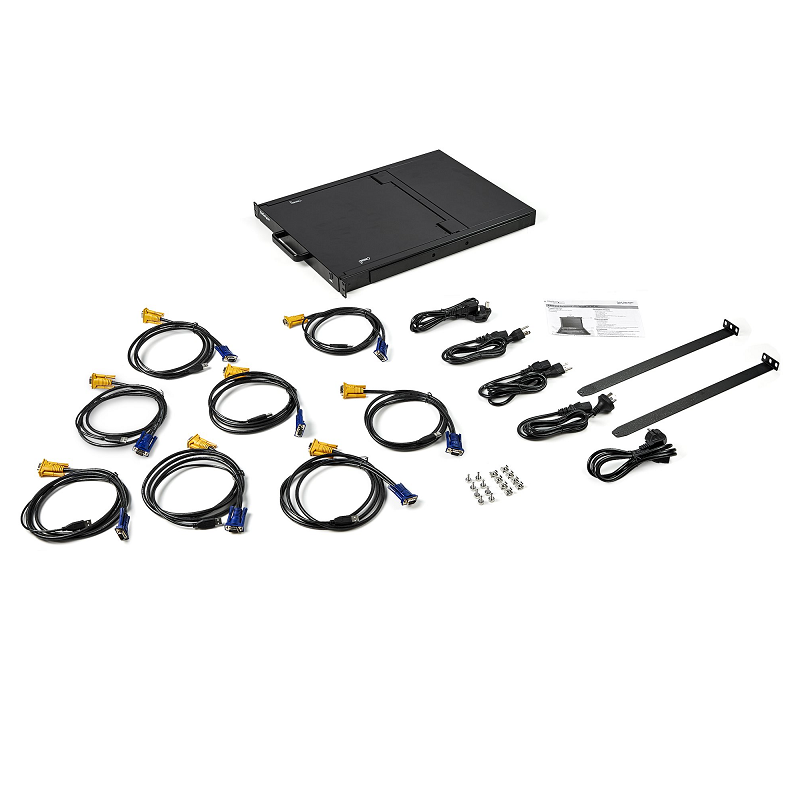

This 8-port KVM console comes with everything you need to set up right out of the box:
• 8 VGA KVM Cables
• Mounting Rails
• M5 Cage Nuts and Screws
With direct access to eight systems or servers, the 8-port KVM module gives you the flexibility you need to easily integrate the console into your existing server infrastructure.
Rack consoles provide convenient, rack-mounted control options for single servers or the entire server room. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. The RKCONS1708K is backed by a StarTech.com 2-year warranty and free lifetime technical support.

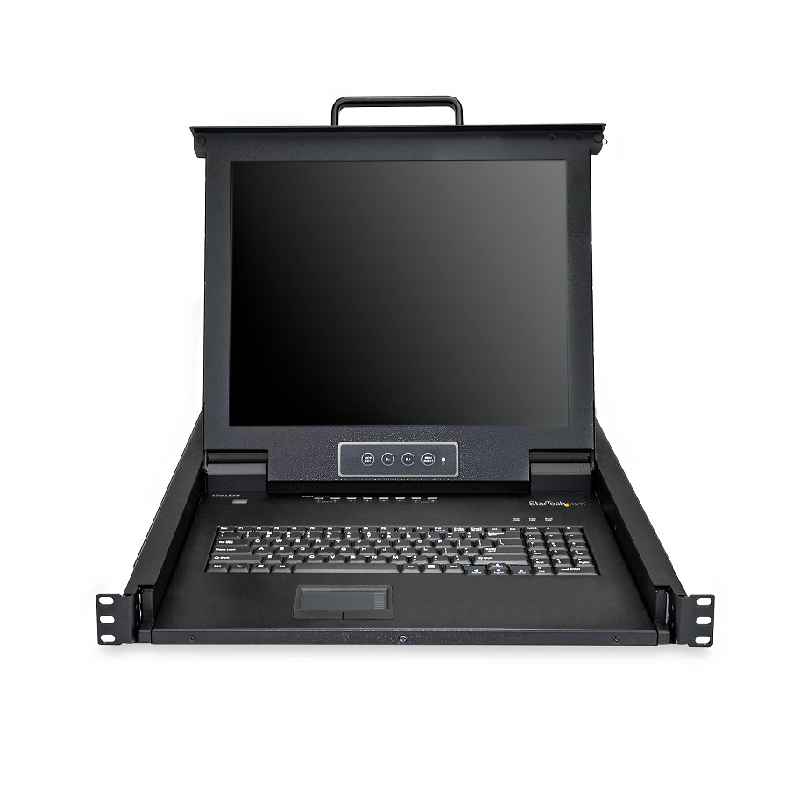

1. Mounting Bracket x 2
2. Current Port
3. Port Select Buttons/LEDs 8
4. Display
5. Handle
6. Release Switch
7. Display Menu Buttons
8. Keyboard LEDs
9. Rails x 2
10. Touch pad

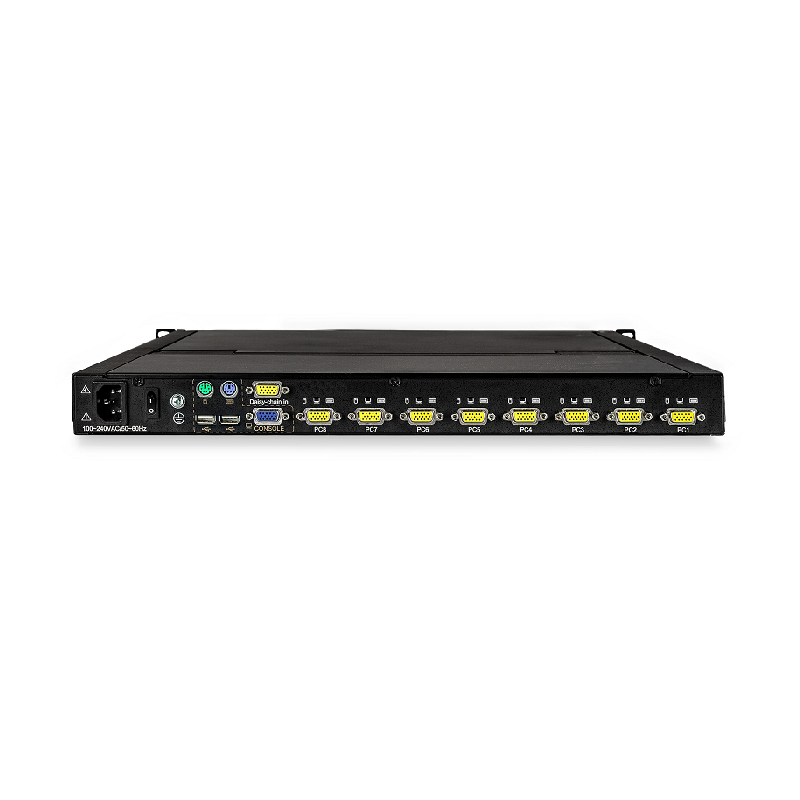

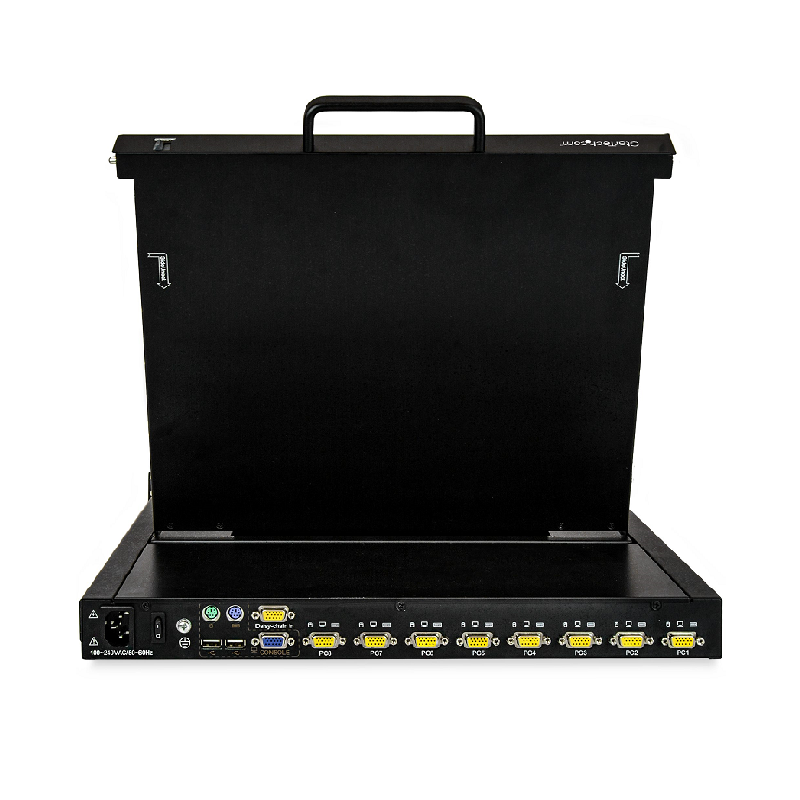

1. Power Switch
2. PS2 Mouse and Keyboard Ports
3. Daisy Chain Port (not supported)
4. Power Connection Port
5. Ground Connection Screw
6. USB Mouse and Keyboard Ports
7. Console Monitor Port
8. Host Port x 8
Display | |
Response time | 5 ms |
Display number of colours | 16.78 million colours |
Display type | LCD |
Display | TFT LCD |
Display diagonal | 43.2 cm (17") |
Viewing angle, vertical | 160° |
Viewing angle, horizontal | 170° |
Pixel pitch | 0.264 x 0.264 mm |
On Screen Display (OSD) | Yes |
Display resolution | 1280 x 1024 pixels |
Display brightness | 250 cd/m² |
Contrast ratio (typical) | 1000:1 |
Aspect ratio | 5:4 |
Technical details | |
Key lock | No |
Daisy chain | No |
LED indicators | Yes |
Rack mounting | Yes |
Rack capacity | 1U |
Operating relative humidity (H-H) | 10 - 80 % |
Mean time between failures (MTBF) | 50000 h |
Material | Steel |
Product colour | Black |
Cables included | KVM |
IP control | No |
Sustainability certificates | CE, RoHS, UL ECOLOGO |
Ports & interfaces | |
Video port type | VGA |
Mouse port type | PS/2 |
Keyboard port type | PS/2 |
USB 2.0 Type-A ports quantity | 2 |
VGA (D-Sub) ports quantity | 8 |
Power | |
AC adapter input voltage | 100 - 240 V |
Input current | 1.5 A |
Power consumption (typical) | 13 W |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions | |
Width | 448 mm |
Depth | 43 mm |
Height | 619 mm |
Weight | 17 kg |
Mounting depth (min) | 56 cm |
Mounting depth (max) | 90 cm |
Packaging data | |
Package width | 76 mm |
Package depth | 617 mm |
Package height | 182 mm |
Package weight | 19.7 kg |
Manual | Yes |
Screws included | Yes |
Number of screws | 8 |
Cage nuts included | Yes |
Number of cage nuts | 8 |
Cables included | KVM |
Included power plug types | ANZ, EU, JP, NA, UK |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
A user quick start guide can be found in the PDF file
