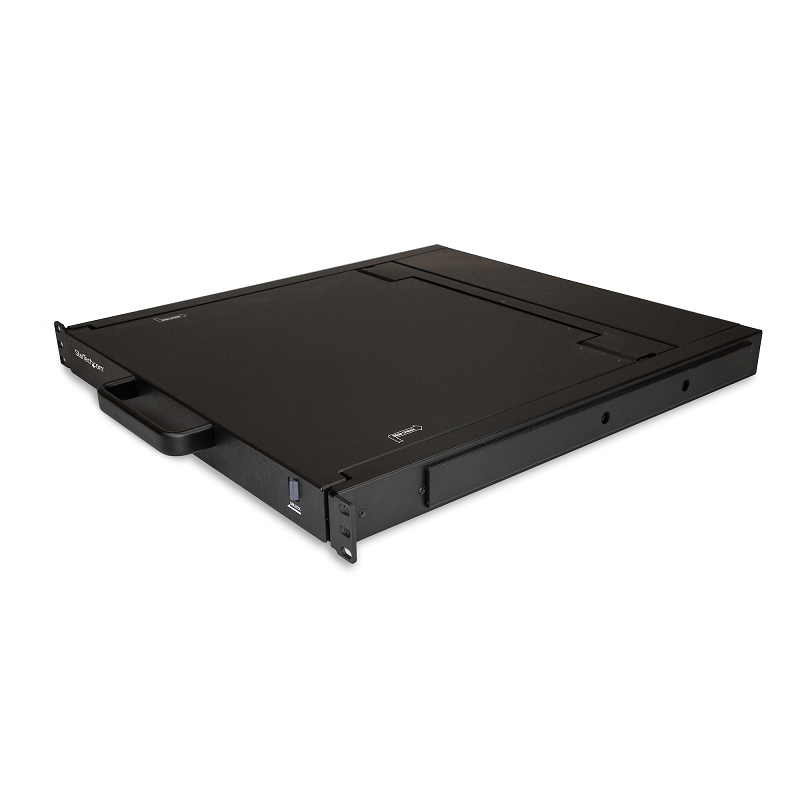

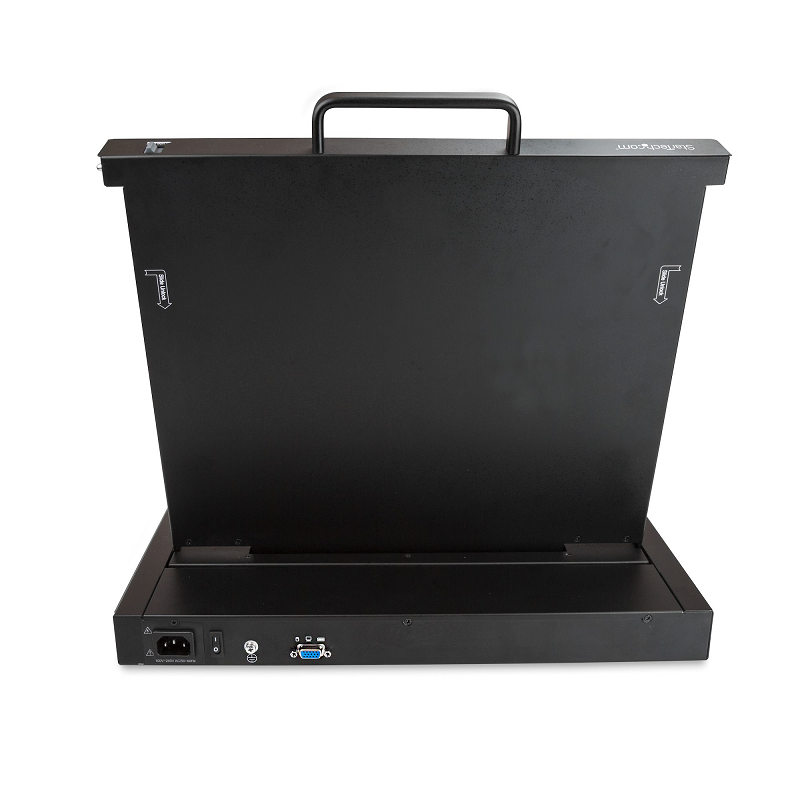

Rackmount KVM Console - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured Universal 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF
KVM Console | 1U | VGA | 1280x1024 | Cable & Mounting Hardware Included
Providing centralized control of your PC, server, or KVM switch, this single-port rackmount KVM console?gives you?easy access to?your connected system. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.

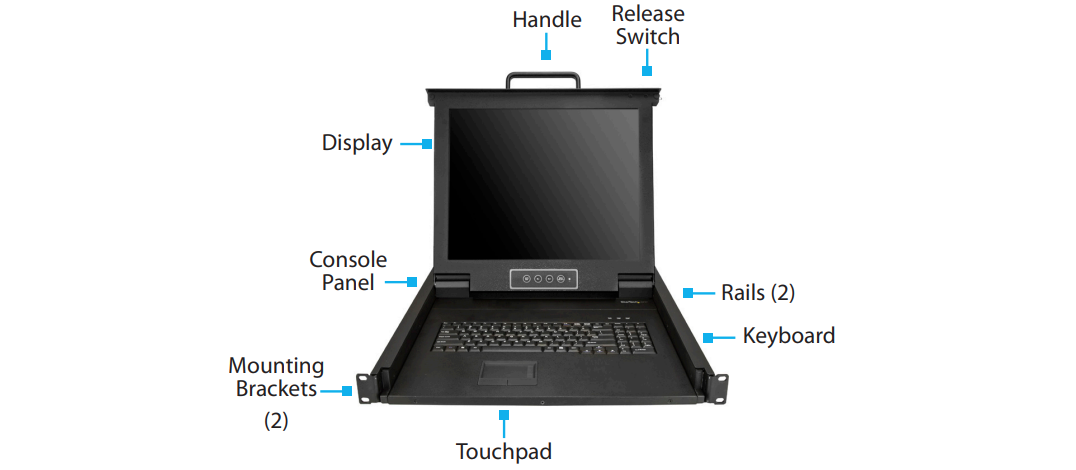

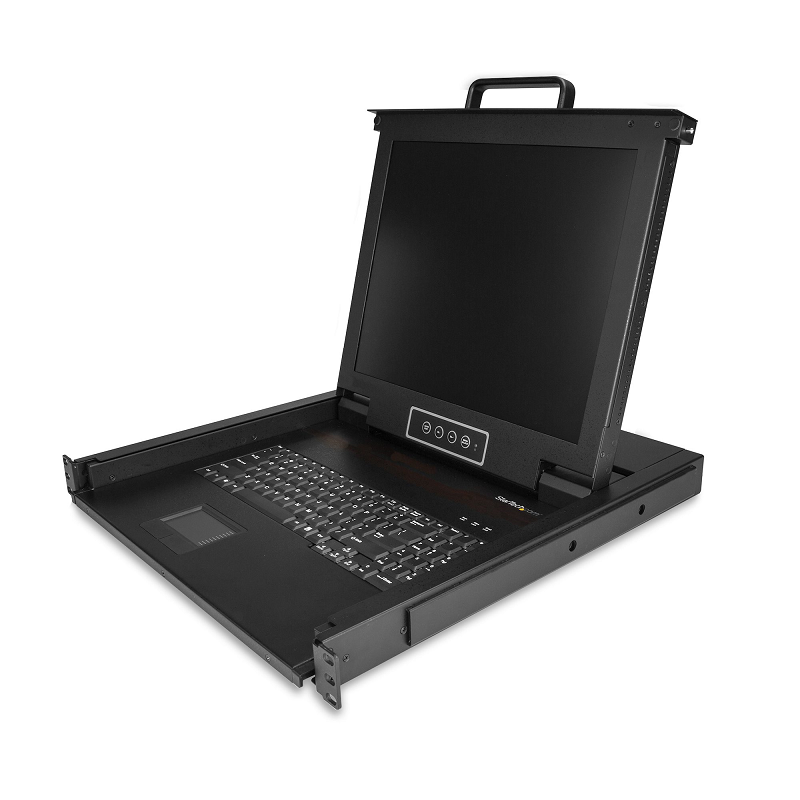

The 1U rackmount console features a built-in keyboard, a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.

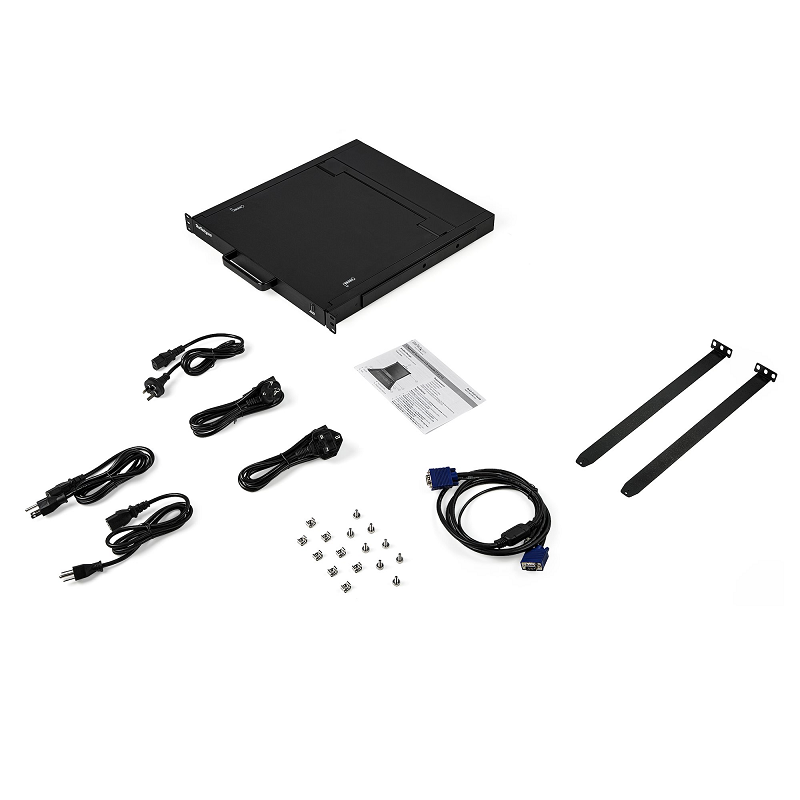

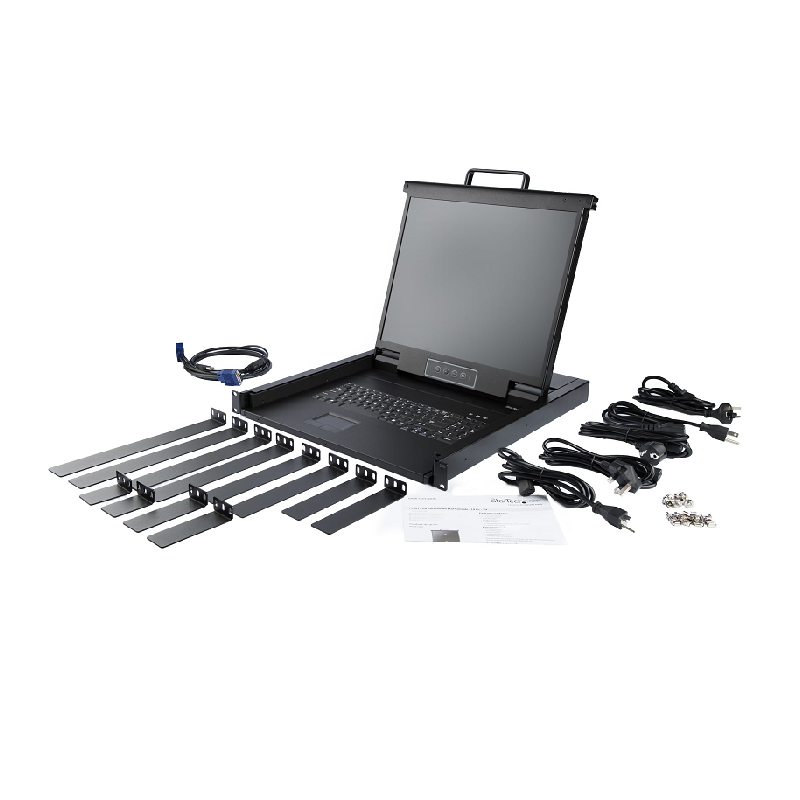

This?single-port?KVM console?includes everything?you need to set up right out of the box:?
• 1 VGA KVM Cable
• Mounting Rails
• M5 Cage Nuts and Screws
The rack console features a single-port KVM module, which can be connected directly to a server or PC, or to a KVM switch for access to multiple systems. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.

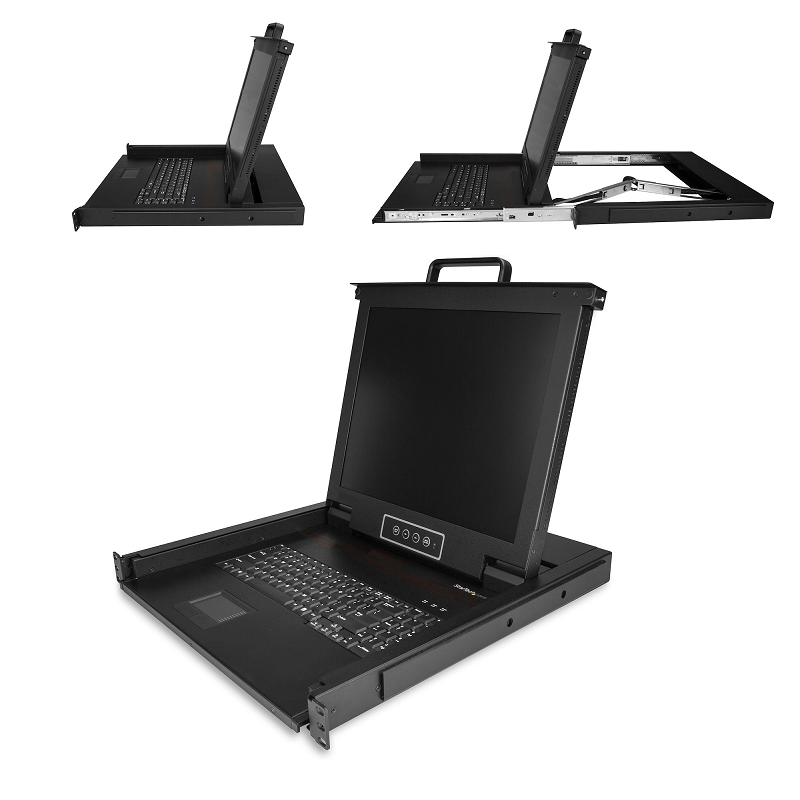

Rack consoles provide convenient, rack-mounted control options for single servers or entire server rooms. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. RKCONS1701 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Display | |
Response time | 5 ms |
Display number of colours | 16.78 million colours |
Display type | LCD |
Display diagonal | 43.2 cm (17") |
Viewing angle, vertical | 160° |
Viewing angle, horizontal | 170° |
Pixel pitch | 0.264 x 0.264 mm |
Display resolution | 1280 x 1024 pixels |
Display brightness | 250 cd/m² |
Contrast ratio (typical) | 1000:1 |
Aspect ratio | 5:4 |
Colour depth | 8 bit |
Technical details | |
Key lock | No |
Daisy chain | No |
LED indicators | Power, Status |
Rack mounting | Yes |
Rack capacity | 1U |
Operating relative humidity (H-H) | 10 - 80 % |
Mean time between failures (MTBF) | 50000 h |
Material | Steel |
Cables included | KVM |
IP control | No |
Cable length | 1.82 m |
Sustainability certificates | RoHS |

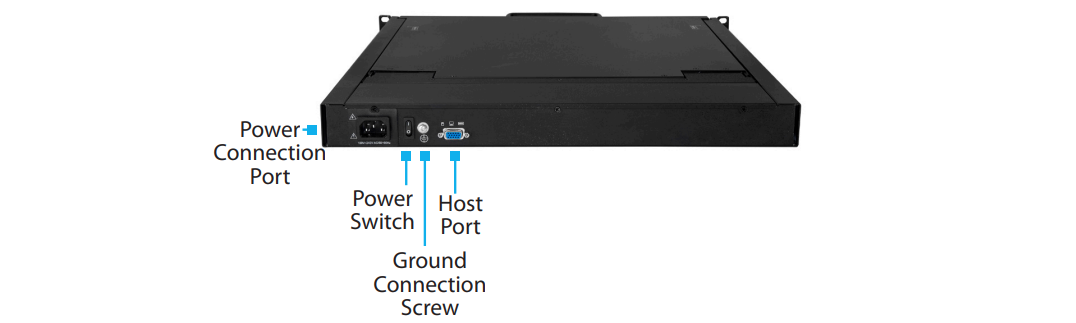

Ports & interfaces | |
Video port type | VGA |
Mouse port type | USB |
Keyboard port type | USB |
Power | |
AC adapter input voltage | 100 - 240 V |
Input current | 1.5 A |
Power consumption (typical) | 13 W |
Operational conditions | |
Storage temperature (T-T) | -20 - 60 °C |
Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions | |
Width | 448 mm |
Depth | 42.5 mm |
Height | 471 mm |
Weight | 11.6 kg |
Mounting depth (min) | 45 cm |
Mounting depth (max) | 79 cm |
Packaging data | |
Package width | 615 mm |
Package depth | 765 mm |
Package height | 185 mm |
Package weight | 17.1 kg |
Quick installation guide | Yes |
Screws included | Yes |
Number of screws | 8 |
Cage nuts included | Yes |
Number of cage nuts | 8 |
Mounting brackets included | Yes |
Rack mount kit | Yes |
Cables included | KVM |
Included power plug types | ANZ, EU, JP, NA, UK |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
A user quick start guide can be found in the PDF file
