| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FES322M225R |
| Manufacturer No: | S322M225R |
| Delivery: | In Stock: Next Day |
 |

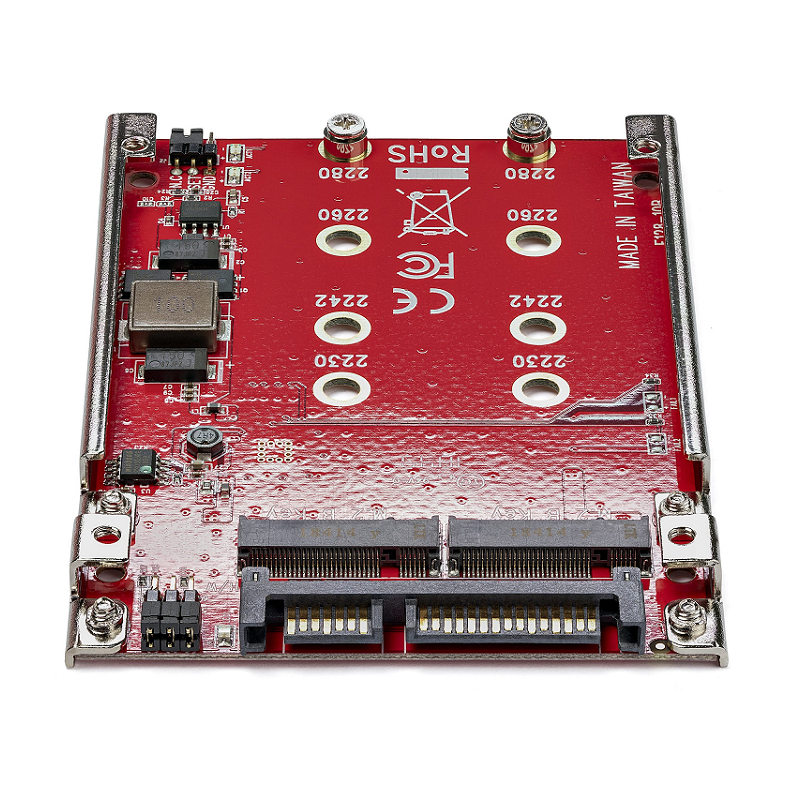

Dual-Slot M.2 Drive to SATA Adapter for 2.5" Drive Bay - RAID
Create high-performance storage with configurable RAID, by installing two M.2 SATA SSDs into a 2.5” SATA interface
Boost your system performance by enhancing the capacity, speed and security of your data storage. This two-drive M.2 to SATA adapter lets you install two M.2 SATA drives instead of a SATA platter drive, in a single 2.5” drive bay, and increase your storage options by configuring a powerful RAID array.
The dual M.2 to SATA adapter supports multiple RAID modes, including RAID 0, 1, or spanning, helping you to achieve greater SSD capacity or data redundancy, depending on your selected RAID mode. The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independently of one another.
The M.2 SATA SSD adapter lets you utilize the full potential of your SATA III controller. Using M.2 SATA SSDs in place of a platter drive reduces your data transfer bottlenecks, giving you file transfer speeds of up to 6Gbps.
The M.2 NGFF SATA RAID adapter also provides TRIM support to enhance the stability and performance of your M.2 NGFF SSDs.

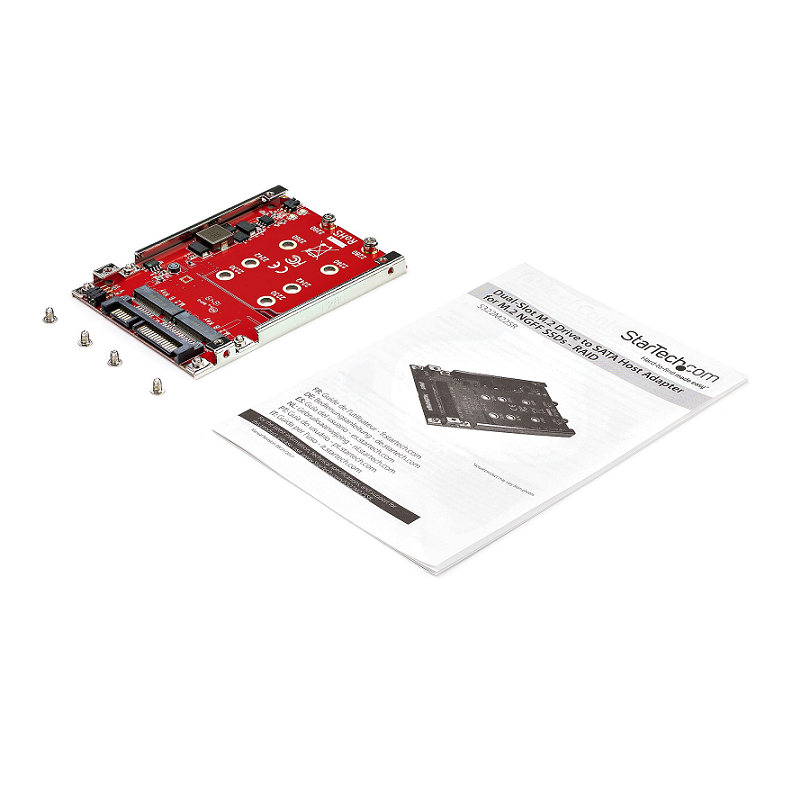

This open-frame adapter is easy to install as it comes with all the necessary installation hardware and doesn’t require any extra software or drivers, to get you up and running quickly.
The S322M225R is backed by a StarTech.com 2-year warranty and free lifetime technical support.

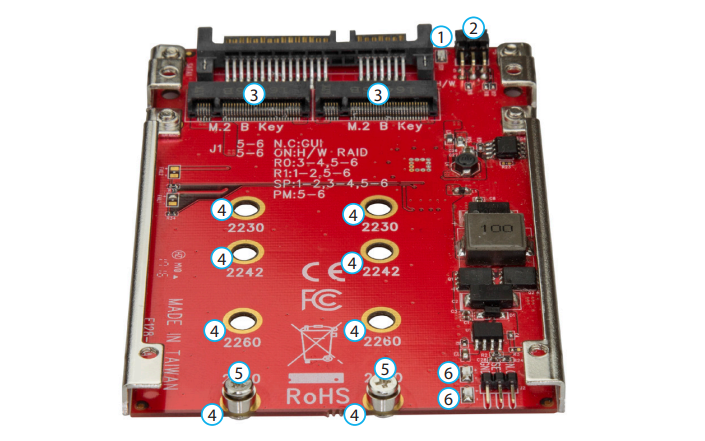

1. Power LED
2. RAID jumper switches
3. M.2 NGFF key B connectors
4. Drive installation holes (8 total)
5. Drive-mounting hardware
6. Activity/link LEDs
| Ports & interfaces | |
| Internal | Yes |
| Port multiplier | Yes |
| Output interface | M.2 |
| SATA revision | 3.0 |
| Host interface | SATA |
| Number of M.2 (B) slots | 2 |
| Number of SSDs supported | 2 |
| Techncial details | |
| Plug and Play | Yes |
| Chipset | ASMedia - ASM1092R |
| RAID levels | 0,1,BIG,JBOD |
| Data transfer rate (max) | 6 Gbit/s |
| Sustainability certificates | RoHS |
| Performance | |
| Port multiplier | Yes |
| Hot-swap | No |
| Plug and Play | Yes |
| Chipset | ASMedia - ASM1092R |
| RAID levels | 0,1,BIG,JBOD |
| Data transfer rate (max) | 6 Gbit/s |
| Product colour | Red |
| TRIM support | Yes |
| S.M.A.R.T. support | Yes |
| Design | |
| Hot-swap | No |
| Easy to install | Yes |
| Internal | Yes |
| Product colour | Red |
| Certification | CE, FCC, REACH, TAA |
| Features | |
| Plug and Play | Yes |
| Chipset | ASMedia - ASM1092R |
| RAID level | 0, 1, BIG, JBOD |
| Data transfer rate (max) | 6 Gbit/s |
| TRIM support | Yes |
| S.M.A.R.T. support | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 15 - 90 % |
| Weight & dimensions | |
| Width | 70 mm |
| Depth | 100 mm |
| Height | 7 mm |
| Weight | 41 g |
| Packaging data | |
| Package width | 172 mm |
| Package depth | 142 mm |
| Package height | 30 mm |
| Package weight | 110 g |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Screws included | Yes |
Full specification and details can be found in the PDF file
A quick start guide can be found in the PDF file
