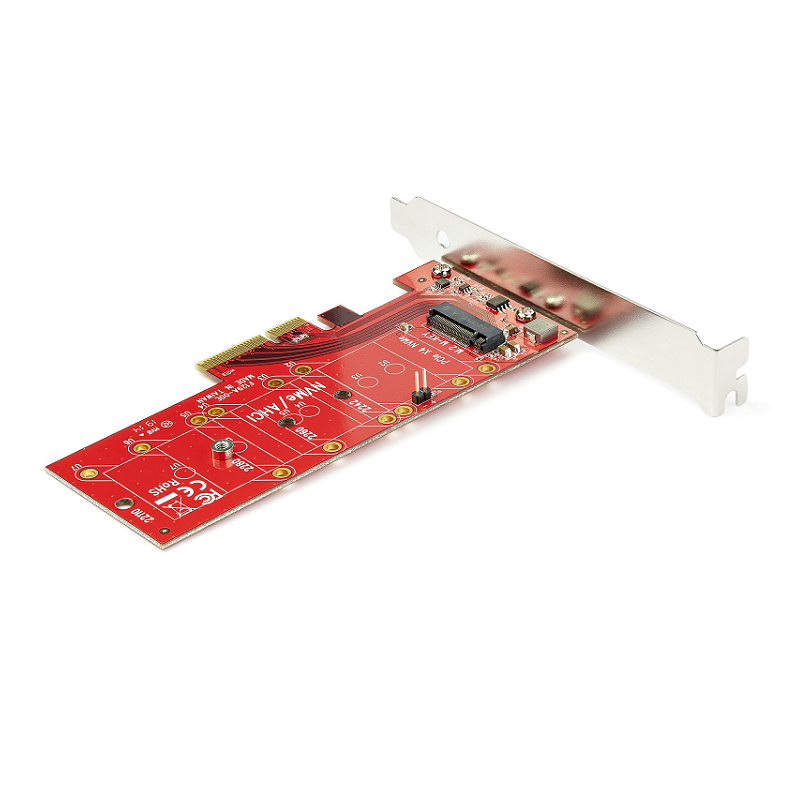

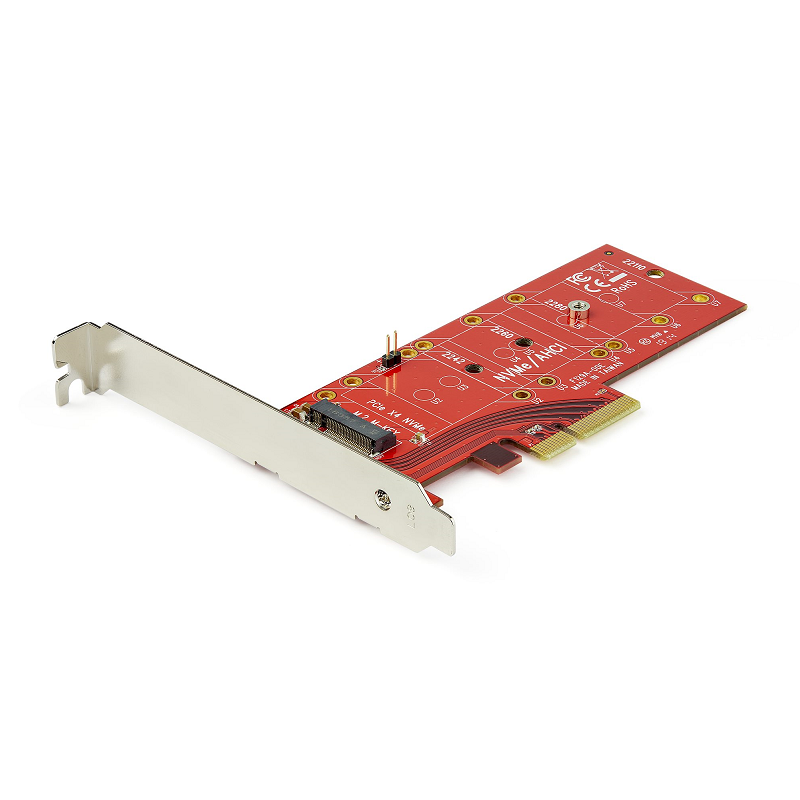

x4 PCI Express 3.0 to M.2 PCIe NVMe SSD Adapter
Connect a PCIe M.2 SSD (NVMe or AHCI) to your computer through PCI Express for ultra-fast data access
Get ultra-fast data access by adding a PCIe M.2 SSD to your existing computer. This adapter lets you add a high-speed, 4-lane M.2 SSD (PCIe-based), such as a Samsung 950 Pro or Samsung SM 951, to a PC with an available x4 PCI Express expansion slot. You can mount the PCIe M.2 drive directly onto the adapter, giving you an easy and convenient way to improve your system performance and expand overall internal storage.
The expansion card lets you take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives. The adapter connects directly to your computer motherboard to support an M.2 PCIe-based SSD (NVMe or AHCI) through ultra-fast x4 PCIe. The adapter is compatible with PCIe 3.0 motherboards and is also backward compatible with PCIe 2.0 and PCIe 1.0. With the M.2 PCIe based drive in place, the adapter gives your computer a significant speed boost.

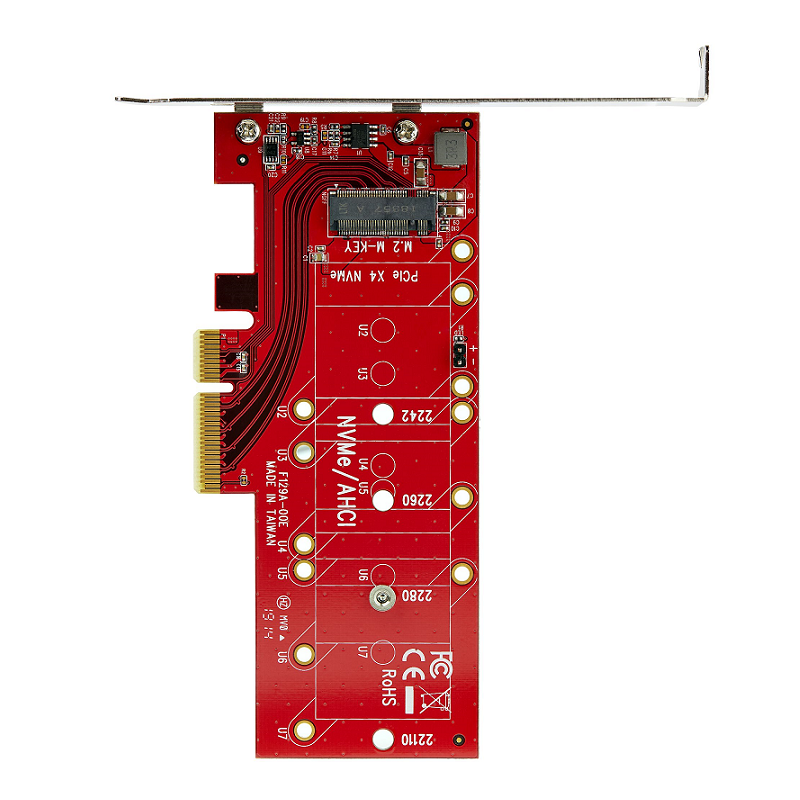

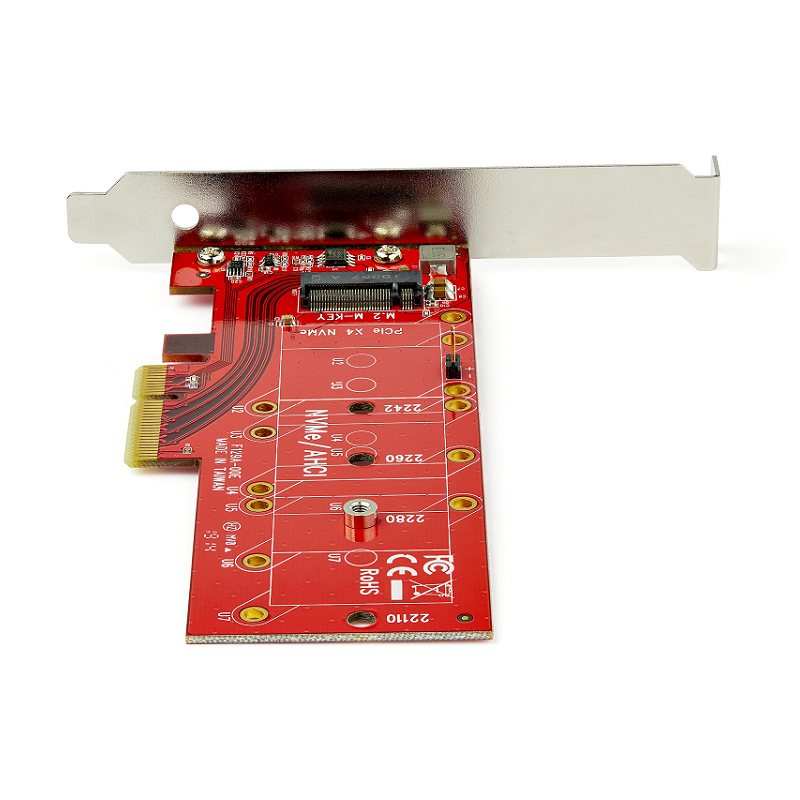

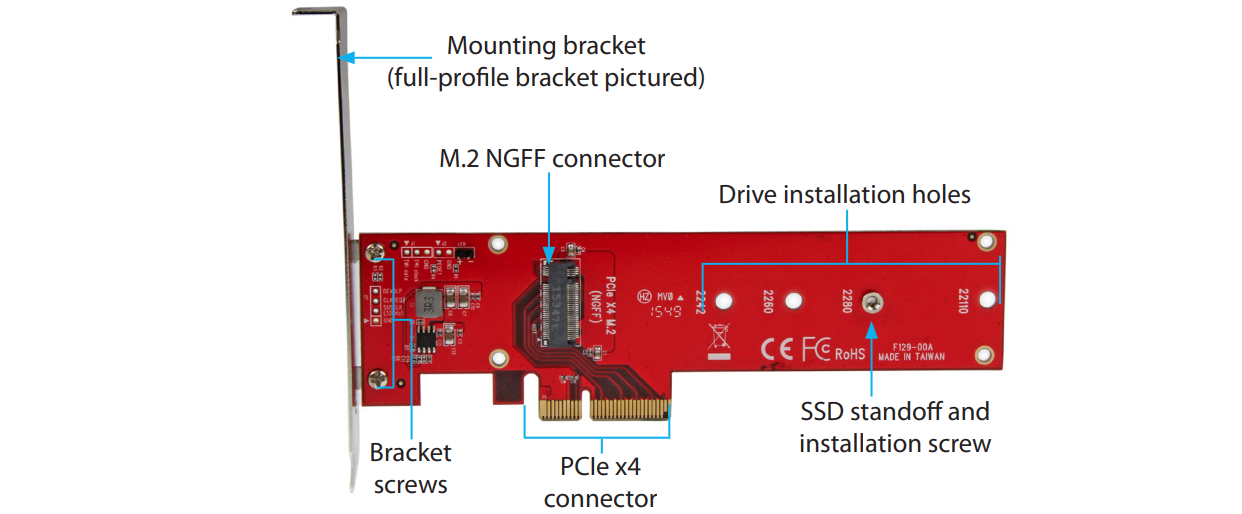

The adapter supports PCIe 3.0 x4 NVMe (M Key) and PCIe-AHCI M.2 SSDs including 2242, 2260, 2280, and 22110 drives. The expansion slot adapter supports the most common drive sizes including 110 mm, 80 mm, 60 mm and 42 mm.

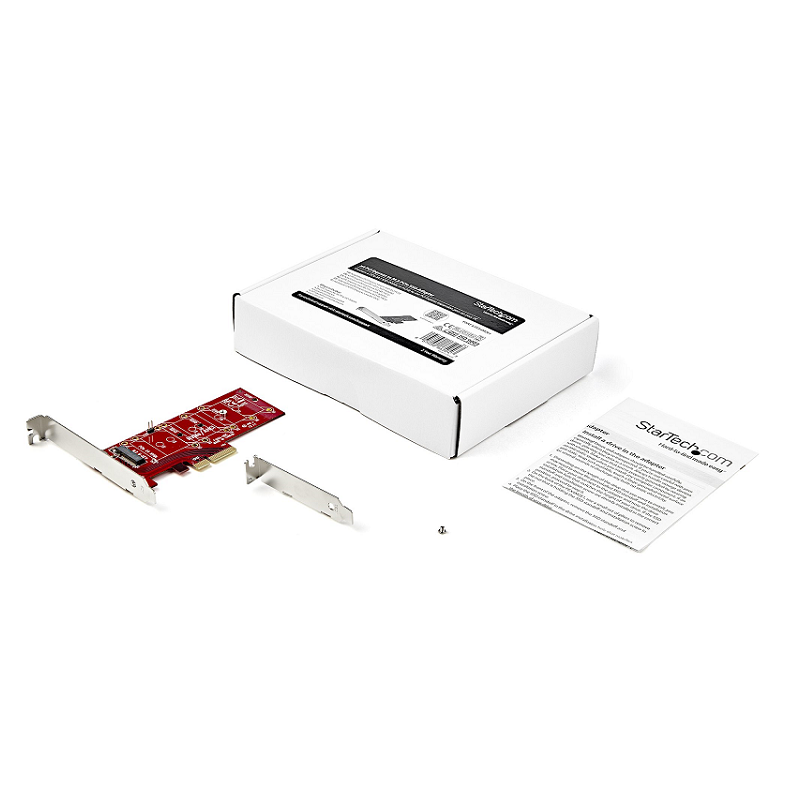

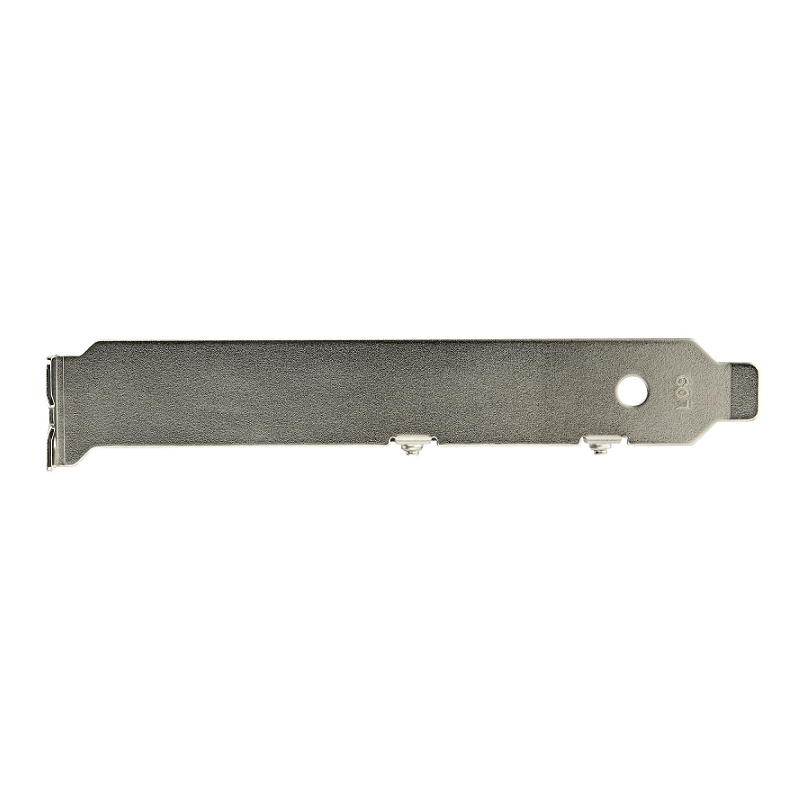

The expansion card is equipped with a full-profile bracket and includes a half-height/low-profile bracket, for installation in small form-factor computers.
The PEX4M2E1 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Ports & interfaces | |
Internal | Yes |
Output interface | M.2 |
Host interface | PCIe |
Expansion card form factor | Full-height / Low-profile |
Technical details | |
Plug and Play | Yes |
Sustainability certificates | RoHS |
Design | |
Hot-swap | No |
Internal | Yes |
Product colour | Red |
Certification | CE, FCC, REACH, TAA |
LED indicators | Yes |
Operational conditions | |
Operating temperature (T-T) | 5 - 50 °C |
Storage temperature (T-T) | -25 - 70 °C |
Operating relative humidity (H-H) | 15 - 90 % |
Weight & dimensions | |
Width | 121 mm |
Depth | 179 mm |
Height | 184 mm |
Weight | 47 g |
Packaging data | |
Package width | 219 mm |
Package depth | 159 mm |
Package height | 46 mm |
Package weight | 151 g |
Mounting brackets included | Yes |
Quick installation guide | Yes |
Full specification and details can be found in the PDF file
An instruction manual can be found in the PDF file

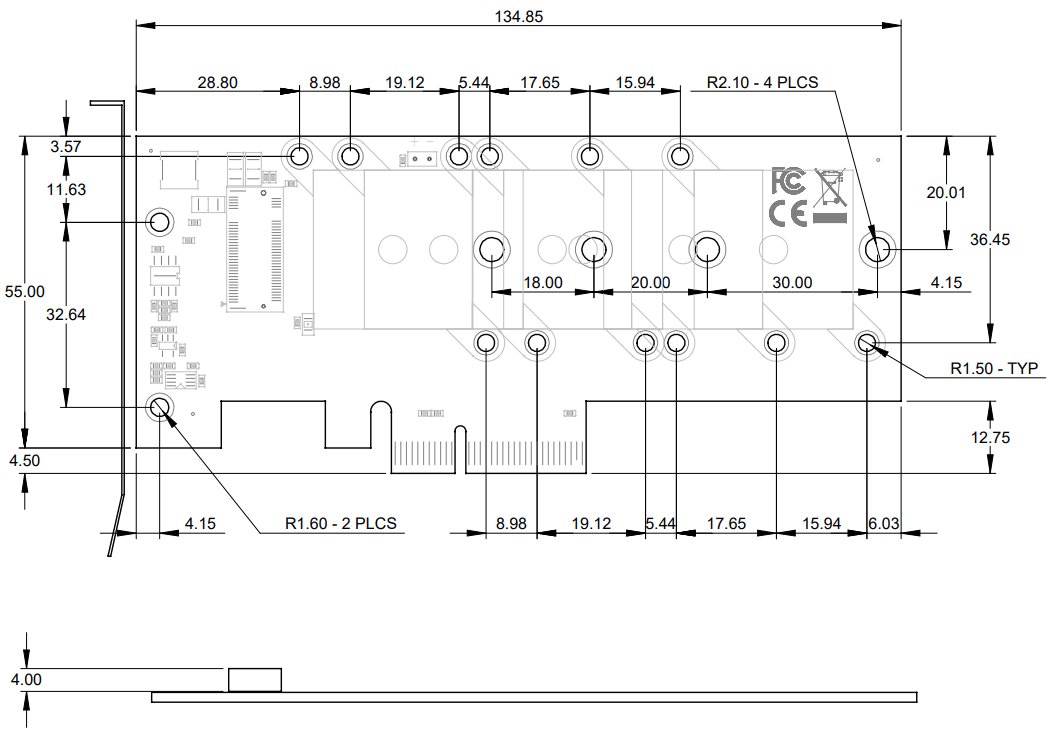

A product drawing can be found in the PDF file
