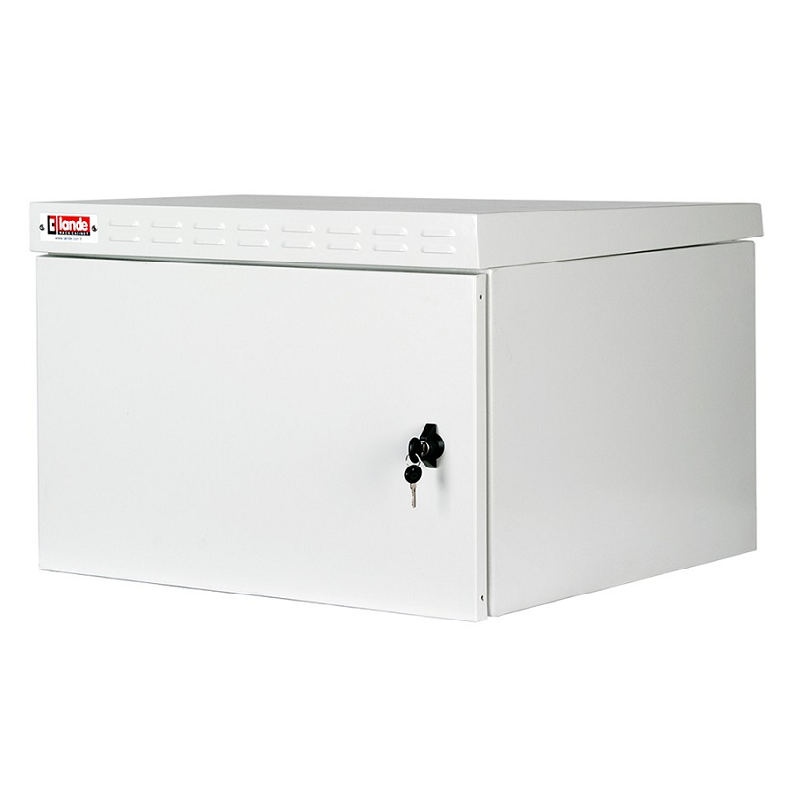

Lande 7U 19inch External SAFEbox-B IP55 Cabinet

Lande 7U IP55 Safebox-B

This Lande range of IP55 Wall Mounting Cabinets are designed for use within industrial applications, warehouses and outdoor areas to provide protection against dust and water ingress, (rain, slush, snow). With the addition of a fan & filter integration, this area of the enclosure provides IP54 protection.

The SAFEBOX-B IP55 Outdoor Cabinets are designed for industrial applications. Based on EN 60529 provided IP55 protection class against dust and water ingress. With fan and filter integration, enclosure provides IP54 protection against dust and water. Enclosure provides protection against extraneous objects (things that might fall in, dust carried by wind) and water (rain, slush, snow, blush) which might damage the internal equipment.

Key Features:

• Monoblock welded construction, with polyester type powder coating (RAL7035 Light Grey)

• Size - 7U, width 600mm and depth 450mm or 600mm

• 7U models contain single point turn locking system. The lock systems accommodate a central cylinder lock which unlocks with a cylindrical key

• All models fitted with 1 set of 19" mounting rails

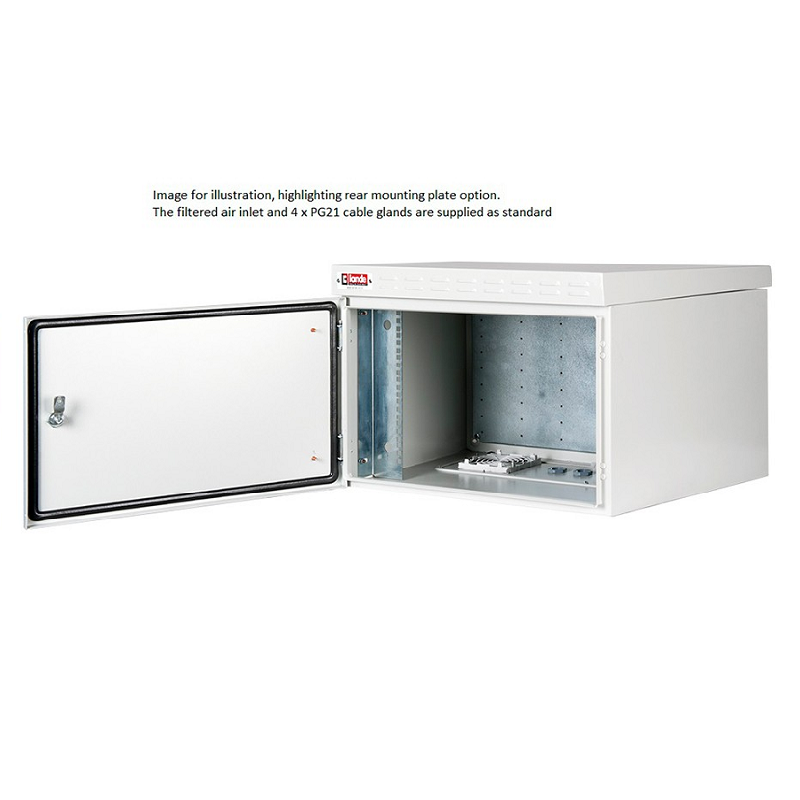

• As standard, the base of the cabinet is equipped with a filtered air inlet

• The base of the cabinet is equipped with 4x PG21 cable entry compatible blind plugs

• Top part is also filtered for passive ventilation and hot air exhaust. As required these filters can be replaced with a thermostat switched single fan

• All models have a roof canopy with gasket for dust and liquid protection

• Wall mounted brackets are included. Note that mounting screws are not, as this is subject to the site mounting area

• A single earth grounding cable between the main body and door is included

• Metal front door with IP55 sealing gasket

• Maximum load capacity is upto 300kg mounted on the wall, or 800kg on the ground

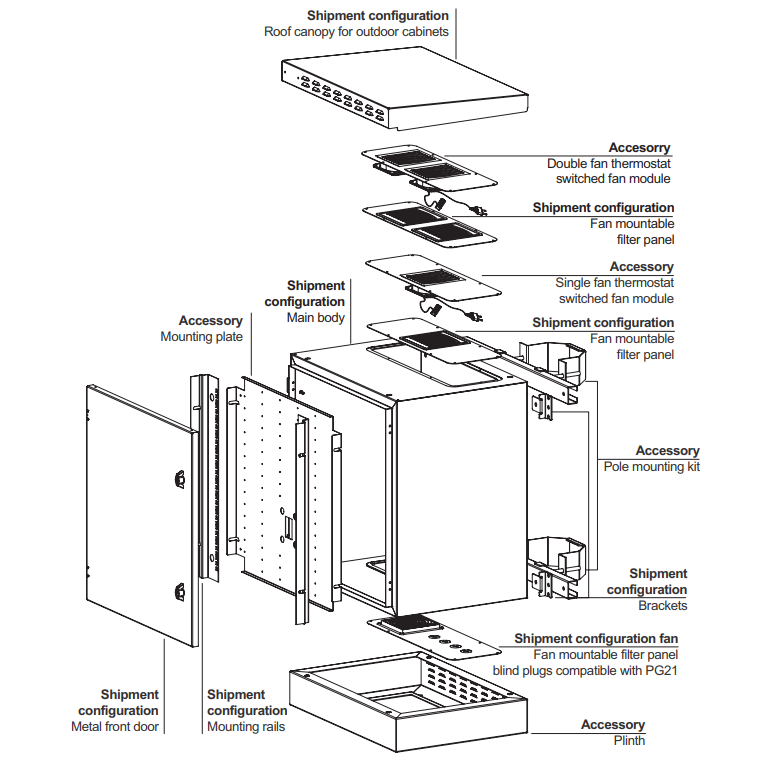

• Accessories include, rear mounting plates, fans plus options for pole mounting and plinths if siting on the ground

Installation:
