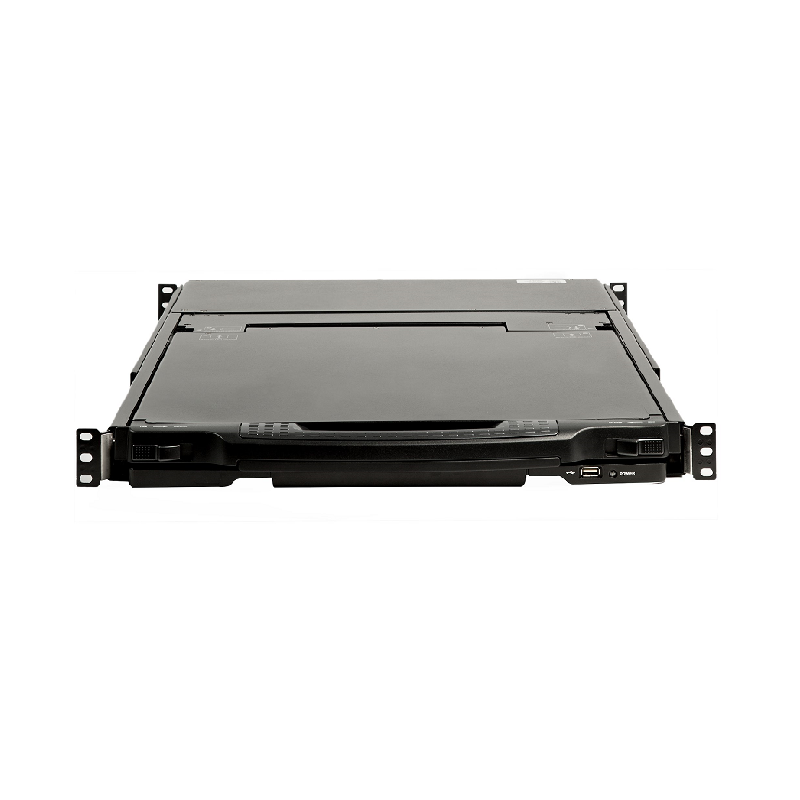

Dual Rail Rackmount KVM Console HD 1080p - Single Port DVI/VGA KVM w/17" LCD Monitor for Server Rack - Fully Featured 1U LCD KVM Drawer w/Cables - USB Support - 44230 MTBF
1080p Display | 17 Inch | 1U | DVI & VGA Interface | Cables Included
Providing centralized control of your single PC or dozens of servers, this dual rail rackmount KVM console also gives you easy access to and visibility of your system while it’s mounted in a server rack or cabinet.

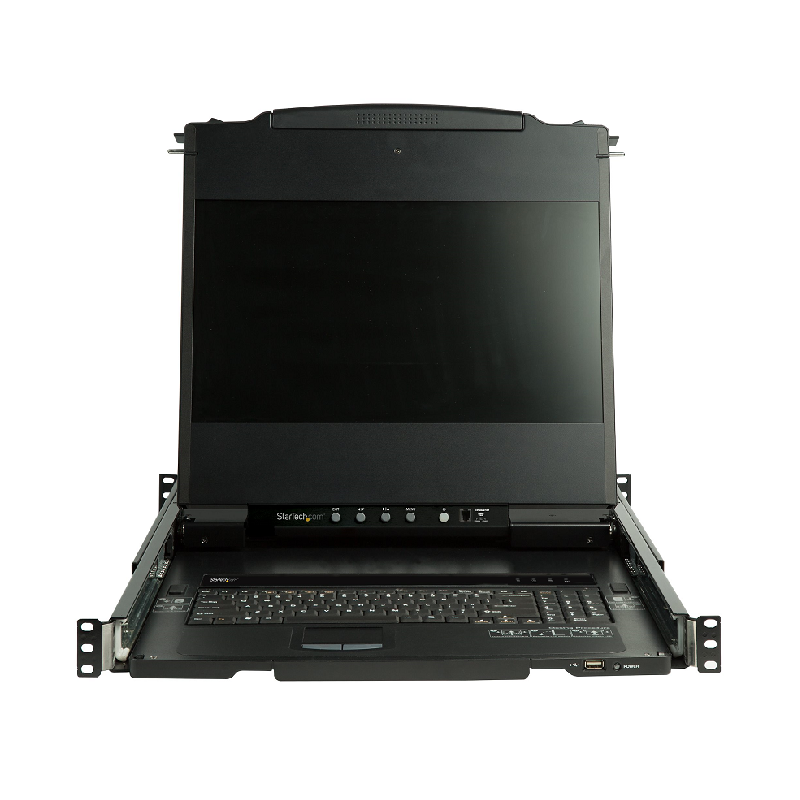

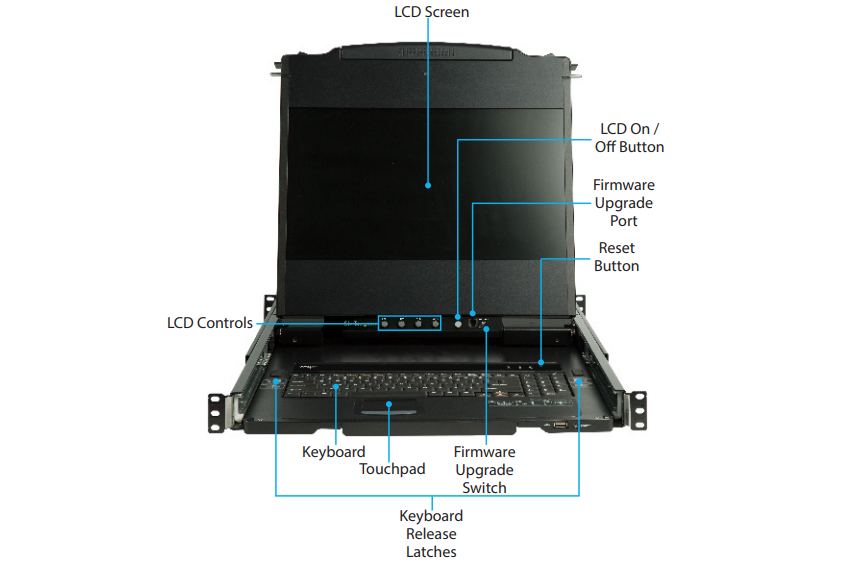

The dual rail KVM console design maximizes space in your datacenter’s rack cabinets by allowing the LCD monitor and the keyboard/mouse to move separately from each other. You can tuck the keyboard away while the display stays active, allowing you to conveniently monitor your computer through closed glass or mesh rack cabinet doors.
The 1080p KVM console is 17.3” and LED back-lit, for low power consumption. It supports high definition resolutions up to 1920x1080 providing sharper video performance.
Whether you are running a multi-port KVM with an analog display or a single port KVM with a high definition display, this DVI/ VGA KVM console can support both signals.

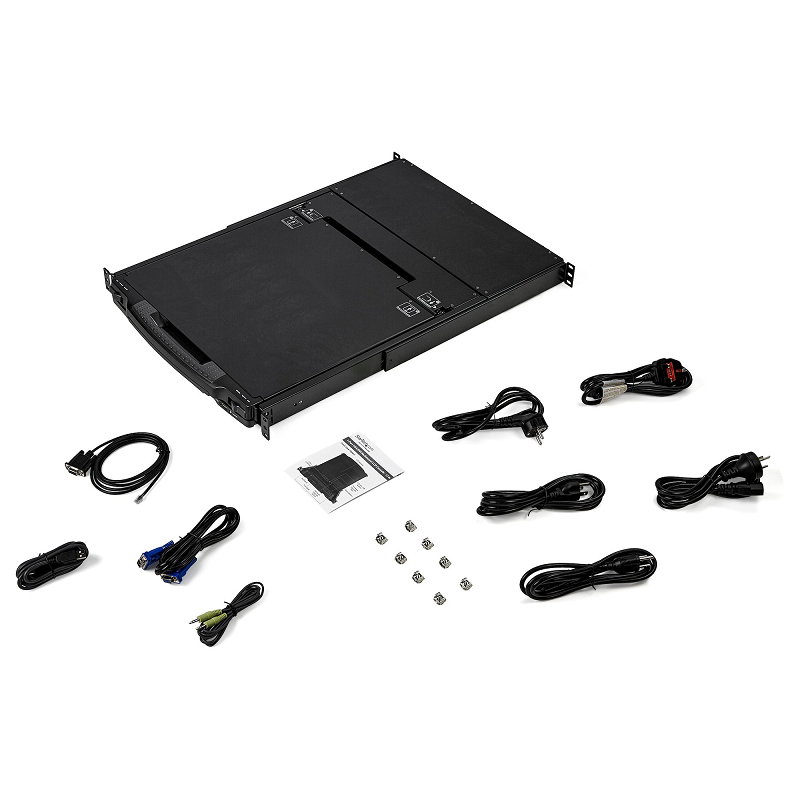

This KVM console comes with everything you need to set up:
• 1 Audio Cable
• 1 Set of KVM Cables (USB/VGA)

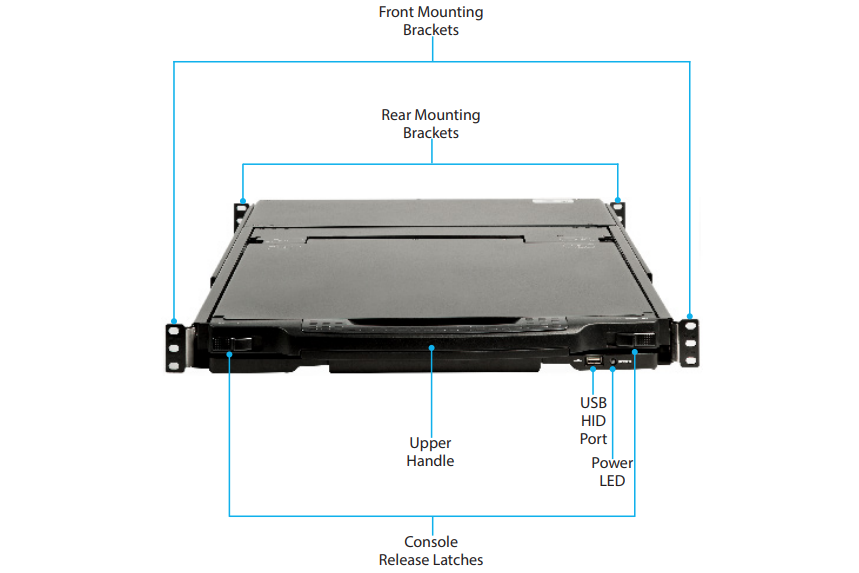

• 2 Rear Mounting Brackets
• M5 Cage Nuts and Screws
Once your KVM console is mounted to your rack, you can use the USB port on the front to easily connect any USB compatible peripheral such as a fingerprint scanner or mousethumb drive.
StarTech.com offers a wide selection of KVM consoles to help you access your systems more efficiently without the expense and clutter of extra peripherals. This dual rail KVM console is backed by a 2-year warranty and free lifetime technical support.
Display | |
Response time | 8 ms |
Display number of colours | 262144 colours |
Display type | LCD |
Display | TFT LCD |
Display diagonal | 43.9 cm (17.3") |
Viewing angle, vertical | 120° |
Viewing angle, horizontal | 140° |
Pixel pitch | 0.199 x 0.199 mm |
On Screen Display (OSD) | No |
Display resolution | 1920 x 1080 pixels |
Display brightness | 250 cd/m² |
Contrast ratio (typical) | 650:1 |
Aspect ratio | 16:9 |
Supported resolutions | 1024 x 576, 1152 x 648, 1280 x 720, 1366 x 76, 1600 x 900, 1920 x 1080 |
Technical details | |
LED indicators | Yes |
Rack mounting | Yes |
Rack capacity | 1U |
Operating relative humidity (H-H) | 0 - 80 % |
Mean time between failures (MTBF) | 44230 h |
Material | Steel |
Product colour | Black |
Cables included | Audio (3.5mm), KVM |
Sustainability certificates | RoHS |

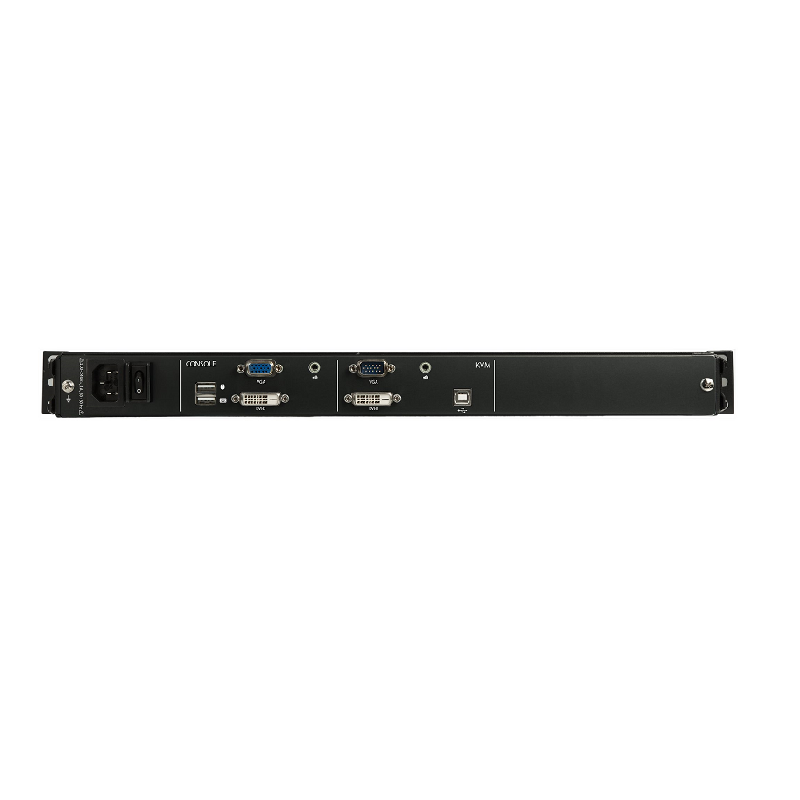

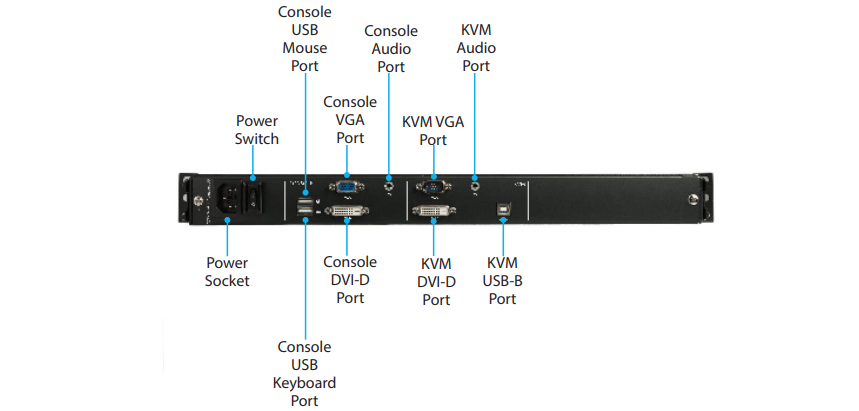

Ports & interfaces | |
Video port type | DVI/VGA |
Mouse port type | USB |
Keyboard port type | USB |
USB 2.0 Type-A ports quantity | 2 |
3.5 mm (1/8-inch) out | Yes |
3.5 mm (1/8-inch) in | Yes |
DVI connector type | DVI-D |
DVI output ports | 1 |
DVI input ports | 1 |
USB 2.0 Type-B ports quantity | 1 |
Power | |
AC adapter input voltage | 100 - 240 V |
Input current | 1 A |
Power consumption (typical) | 19.4 W |
Operational conditions | |
Storage temperature (T-T) | -20 - 60 °C |
Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions | |
Width | 480 mm |
Depth | 727 mm |
Height | 44 mm |
Weight | 13.6 kg |
Mounting depth (min) | 65 cm |
Mounting depth (max) | 100 cm |
Packaging data | |
Package width | 680 mm |
Package depth | 840 mm |
Package height | 133 mm |
Package weight | 18.9 kg |
Quick installation guide | Yes |
Screws included | Yes |
Number of screws | 8 |
Cage nuts included | Yes |
Number of cage nuts | 8 |
Mounting brackets included | Yes |
Cables included | Audio (3.5mm), KVM |
Included power plug types | ANZ, EU, JP, NA, UK |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
A user quick start guide can be found in the PDF file
A product diagram can be found in the PDF file
