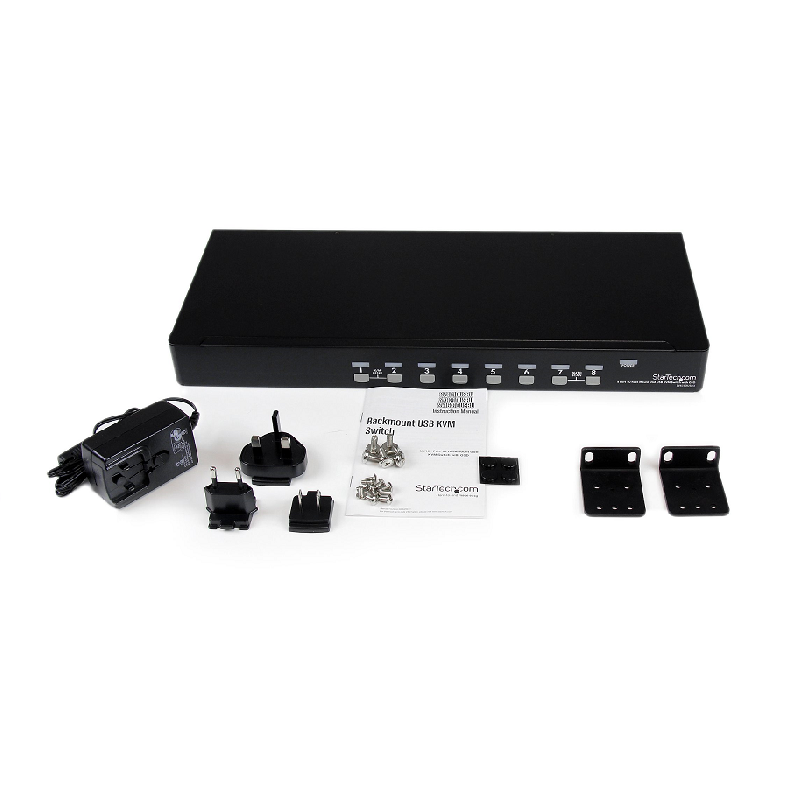

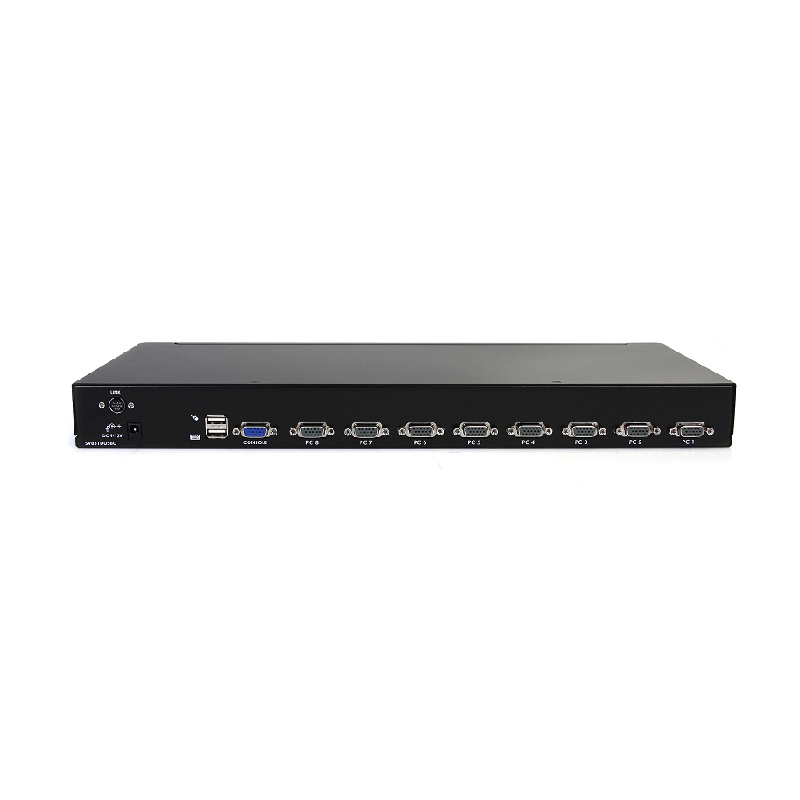

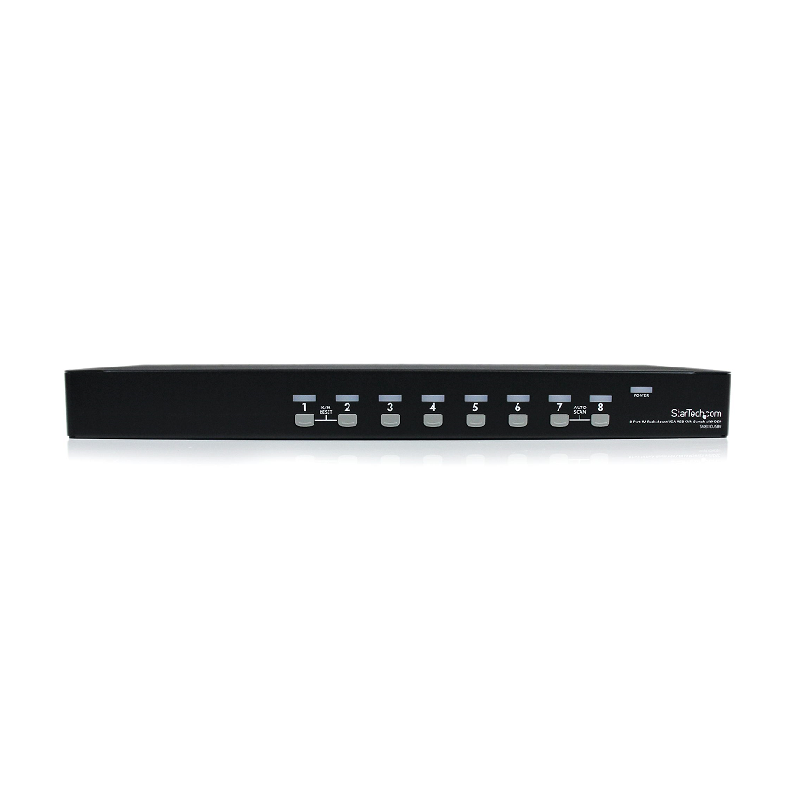

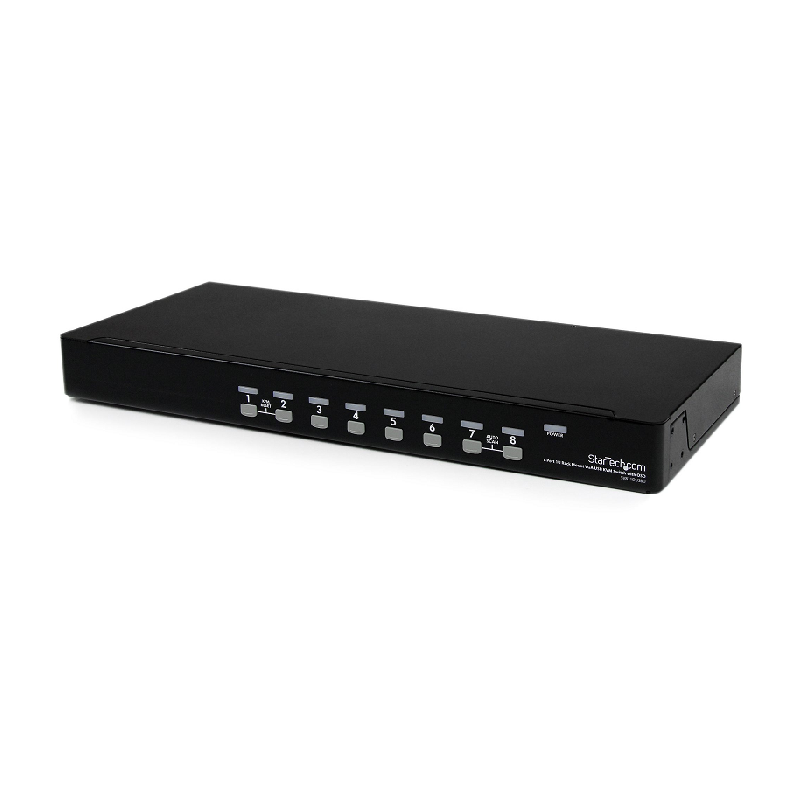

8 Port 1U Rackmount USB KVM Switch with OSD
Control up to 8 VGA and USB computers from a single keyboard, mouse and monitor
The SV831DUSBU 8 Port 1U Rack Mount USB KVM Switch with OSD offers a dependable computer management tool that allows you to control up to 8 USB-connected computers from a single keyboard, mouse and monitor.
The KVM switch offers maximum control, allowing you to switch computers using hotkey commands or front panel push-buttons, and offers added configuration options and convenience through an On Screen Display (OSD).
A suitable addition to server room operations, the 8 port switch can be rack mounted into 1U of cabinet space, and can be cascaded with multiple KVM switches to deliver control of up to 64 computers from this single switch.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
Technical details | |
Product colour | Black |
Rack mounting | Yes |
Plug and Play | Yes |
On Screen Display (OSD) | Yes |
LED indicators | Yes |
IP control | No |
Audio support | No |
Sustainability certificates | RoHS |
Ports & interfaces | |
Console USB ports quantity | 2 |
Console ports | USB A, VGA (D-Sub) |
Number of computers controlled | 8 |
Keyboard port type | USB |
Mouse port type | USB |
Video port type | USB |
Audio connections | No |
VGA (D-Sub) ports quantity | 9 |
DC-in jack | Yes |
Performance | |
Daisy chain | Yes |
Plug and Play | Yes |
Maximum resolution | 1920 x 1440 pixels |
Design | |
Mean time between failures (MTBF) | 150000 h |
Product colour | Black |
Rack mounting | Yes |
LED indicators | Yes |
Certification | CE, FCC, TAA, REACH |
Rack capacity | 1U |
Housing material | Steel |
Display | |
Built-in display | No |
On Screen Display (OSD) | Yes |
Power | |
Input current | 0.8 A |
Output current | 1.5 A |
Power plug type | Type M |
Compatible power plug types | EU, UK, US |
Output voltage | 12 V |
AC input voltage | 100 - 240 V |
Operational conditions | |
Operating temperature (T-T) | 5 - 40 °C |
Storage temperature (T-T) | -20 - 60 °C |
Operating relative humidity (H-H) | 0 - 80 % |
Other features | |
Connectivity technology | Wired |
Power requirements | 110 - 240 V AC |
Ports quantity | 8 |
IP control | No |
Audio support | No |
Weight & dimensions | |
Width | 540 mm |
Depth | 180 mm |
Height | 45 mm |
Weight | 2.9 kg |
Packaging data | |
Package width | 89 mm |
Package depth | 573 mm |
Package height | 268 mm |
Package weight | 3.3 kg |
Manual | Yes |
Rubber feet | Yes |
AC adapter included | Yes |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
