4 Port Professional VGA USB KVM Switch with Hub
Control up to 4 PC or Mac® computers from a single keyboard, mouse and monitor and share any USB device between all connected computers
The SV431USB 4 Port rack mountable VGA USB KVM Switch with Hub offers simple control of up to four computers from a single monitor/display and USB peripheral set (keyboard, mouse).
The USB KVM switch features an integrated 4 port USB hub, allowing you to share connected USB peripherals between the four controlled PC/Mac computers as though the devices were connected directly.

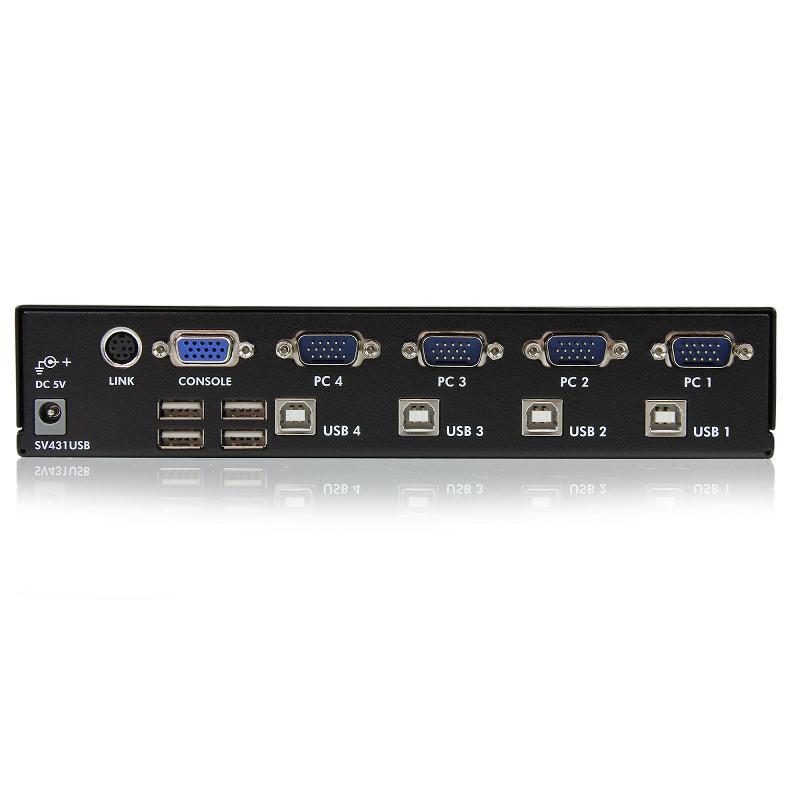

Offering convenient placement and installation options, the KVM switch features a 1U rack-mountable form factor and rear port connection to master and slave computers, allowing you to make the necessary device connections without disrupting your workspace.
A cross-platform solution, the KVM switch supports high resolution applications at up to 1920x1440 and provides a smooth operating experience when controlling mixed (Windows/Mac OS/Linux) environments.
This product is TAA compliant and backed by a Startech.com 3 year warranty with free lifetime technical support.
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
| Technical details | |
| Product colour | Black |
| Rack mounting | Yes |
| Scan interval | 3, 8, 15, 30 s |
| On Screen Display (OSD) | No |
| Number of users | 1 user(s) |
| Hot keys | No |
| IP control | No |
| Sustainability certificates | RoHS |
| Performance | |
| Maximum cable length | 5 m |
| Daisy chain | No |
| Maximum resolution | 1920 x 1440 pixels |
| Scan interval | 3, 8, 15, 30 s |
| Number of users | 1 user(s) |
| Video | |
| Maximum resolution | 1920 x 1440 pixels |
| Ports & interfaces | |
| Console USB ports quantity | 4 |
| Console ports | USB A, VGA (D-Sub) |
| USB connector type | USB Type-A |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| Audio connections | No |
| DC-in jack | Yes |
| Design | |
| Mean time between failure (MTBF) | 82506 h |
| Maximum cable length | 5 m |
| Product colour | Black |
| Rack mounting | Yes |
| Hot keys | No |
| Certification | CE, FCC, REACH, TAA, cUR |
| Rack capacity | 1U |
| Housing material | Steel |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power | |
| Input current | 0.4 A |
| Output current | 2 A |
| Power plug type | Type N |
| Output voltage | 5 V |
| AC input voltage | 110 - 240 V |
| Weight & dimensions | |
| Width | 130 mm |
| Depth | 220 mm |
| Height | 44 mm |
| Weight | 988 g |
| Packaging content | |
| Rubber feet | Yes |
| Manual | Yes |
| Other features | |
| Hot keys | No |
| IP control | No |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file

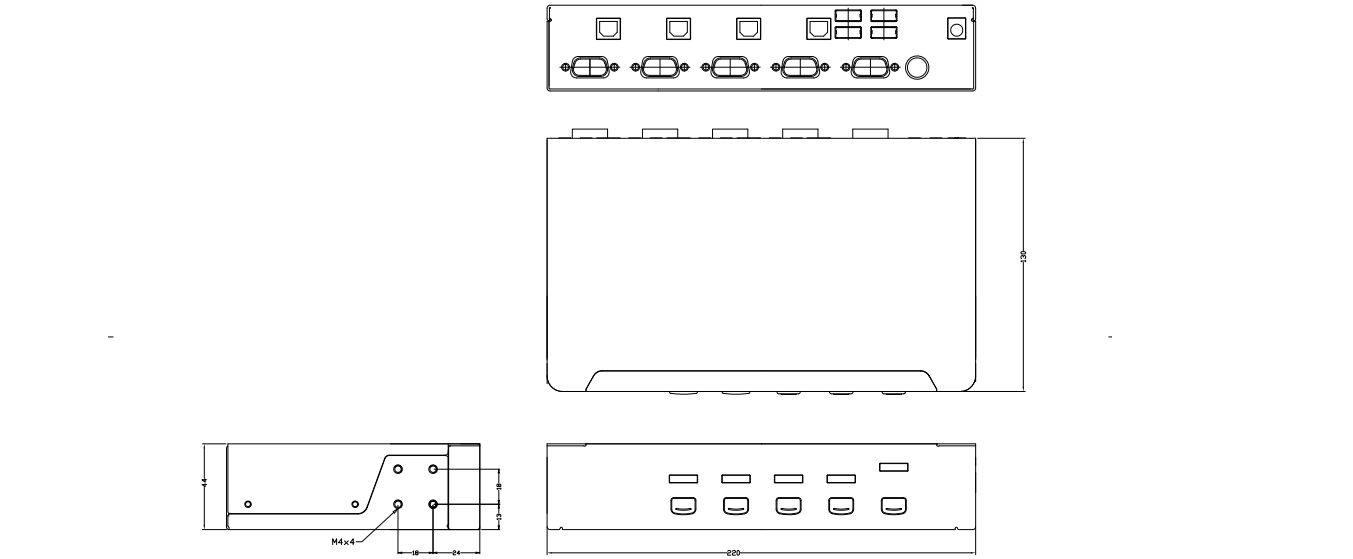

A product diagram can be found in the PDF file
