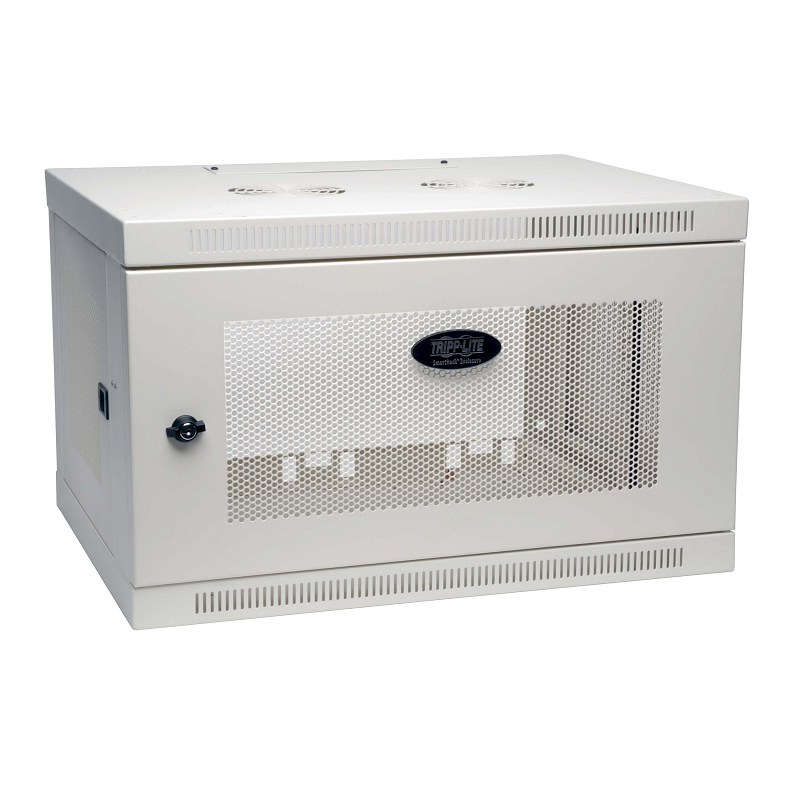

    Tripp Lite SmartRack 6U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet, White
    The SRW6UW is a white 6U Wall-Mount Rack Enclosure Cabinet designed to integrate wall-mounting, easy equipment access, and cable management in IT network applications with limited floor space. Ventilated front door and side panels allow generous airflow to keep equipment operating safely.

    Adjustable front mounting rails have both square mounting holes (default position) and tapped holes to accommodate up to 6U of standard 19" rackmount equipment. Supports up to 200 lbs of equipment. A sturdy wall-mount bracket allows the cabinet to quickly be hung on the wall.

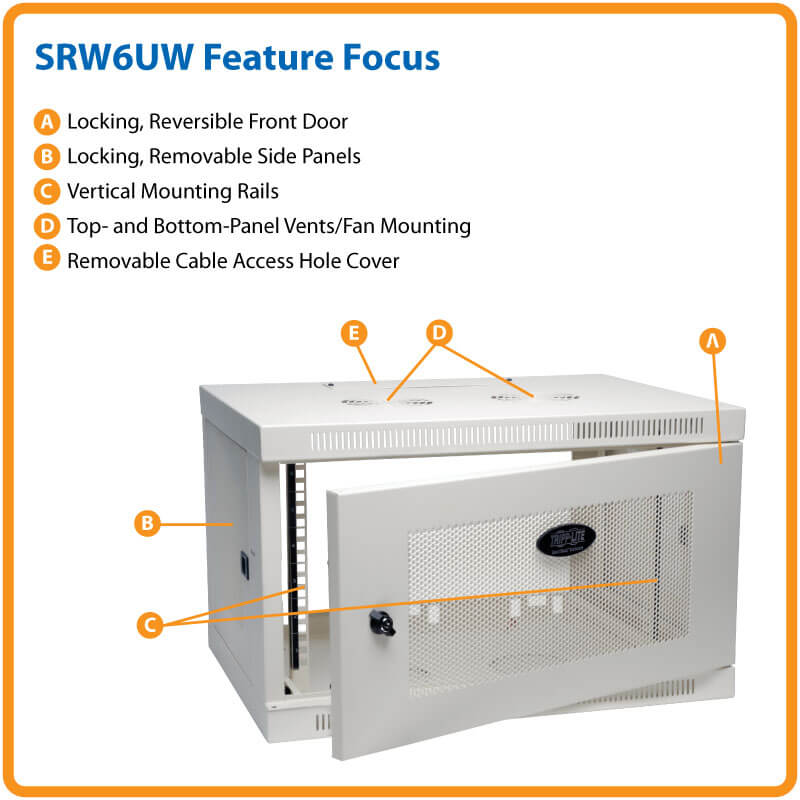

    Key Features

    Saves Valuable Workspace
    • Perfect for network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way
    • Houses EIA-standard 19 in. rack equipment in 6U of space
    • Maximum load capacity of 200 lb.

    Keeps Important Equipment Secure
    • Side panels and front door lock securely to help prevent damage, tampering or theft
    • Vented panels allow generous airflow that keeps equipment cool

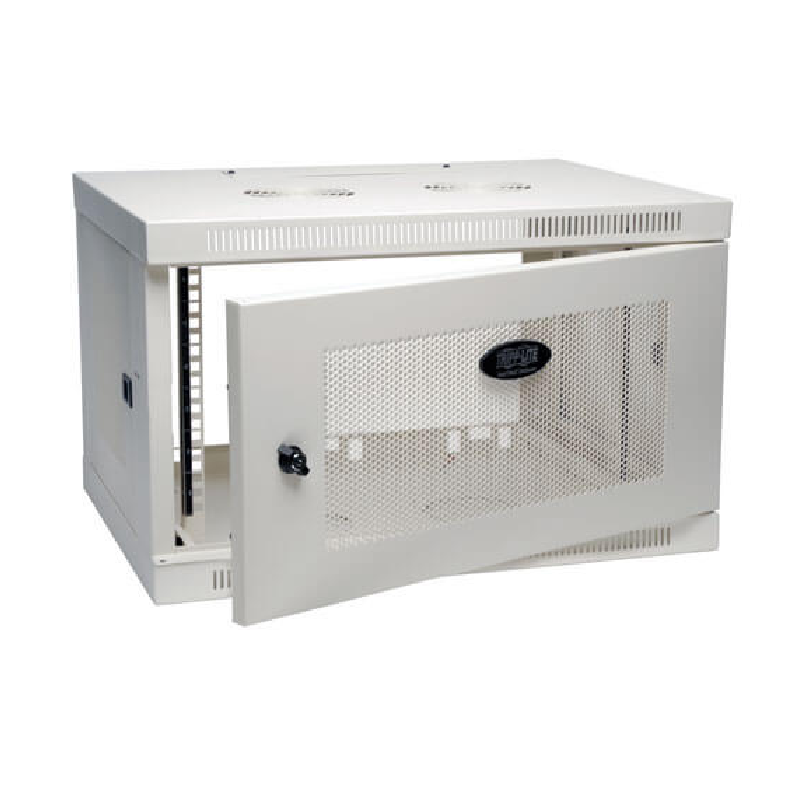

    • Rotate cabinet 180° before mounting to open reversible front door left or right
    • Convenient ports with removable covers allow cable routing through top and bottom

    Easy Enclosure and Equipment Installation
    • Ships fully assembled for quick installation
    • Mounts to wall or rolls on floor with Tripp Lite’s optional SRCASTER caster kit
    • Wall-mounting holes spaced 16 in. apart for standard wall stud placement

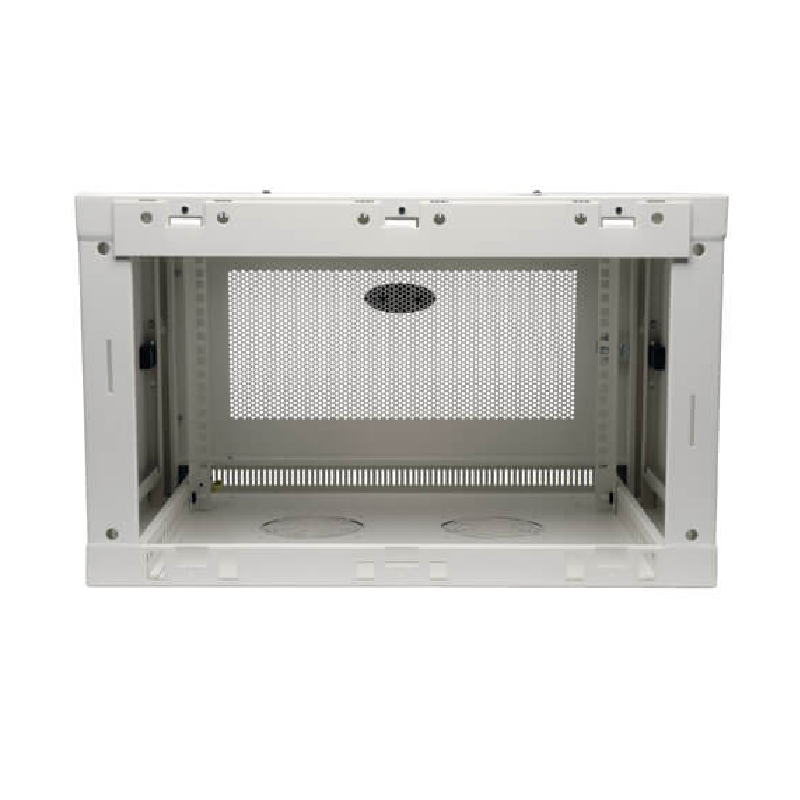

    • Vertical mounting rails adjust in 7/8 in. increments to accommodate equipment up to 16.5 in. deep, such as network switches and patch panels
    • Rails support square-hole or 12-24 threaded-hole mounting
    • Rack spaces numbered for easy reference

    Meets Payment Card Industry Standards
    • Provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance


    This Package Includes

    • SRW6UW SmartRack 6U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet
    • (12) M6 screws
    • (12) M6 cage nuts
    • (12) M6 cup washers
    • (12) 12-24 screws
    • Removable mounting plate
    • (3) Mounting plate screws
    • (2) Keys
    • Owner’s manual
