| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FEET90110SM302 |
| Manufacturer No: | ET90110SM302 |
| Delivery: | In Stock: 7-10 Days |
 |

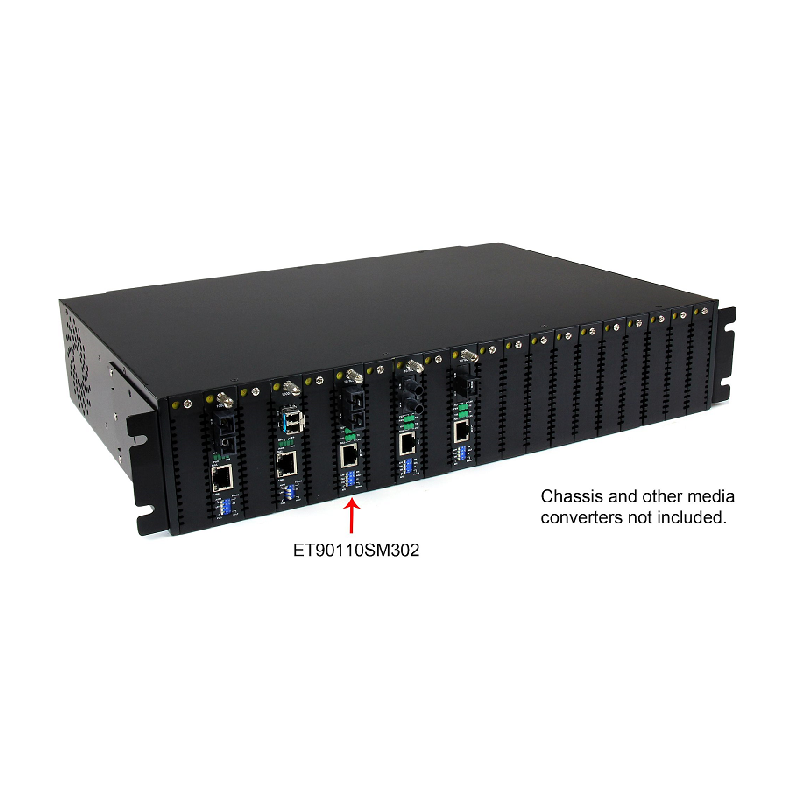

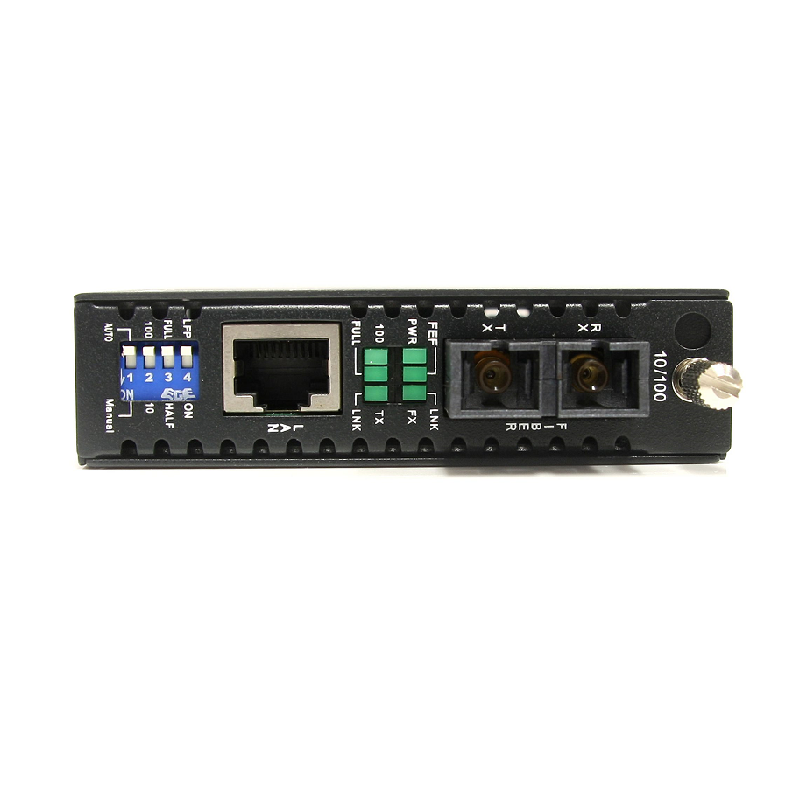

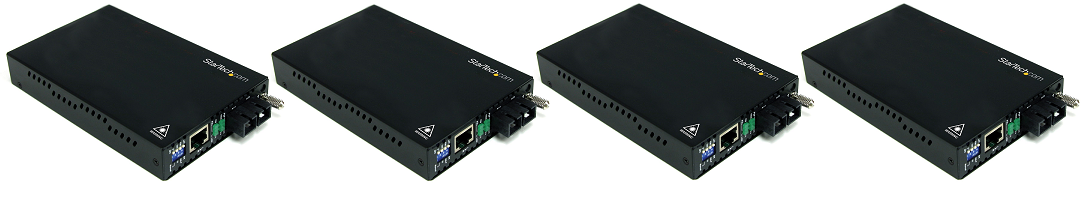

10/100 Mbps Single Mode Fiber Media Converter SC 30 km
Convert and extend a 10/100 Mbps Ethernet connection up to 18.6 miles/30km over Single Mode SC fiber
The ET90110SM302 10/100 Mbps Single Mode Fiber Media Converter SC (30 km) lets you extend a Fast Ethernet network (10/100) over single mode fiber, at distances up to 30 km (18.6 miles).
A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet to fiber solution, with an all-steel chassis, and simple plug-and-play installation with minimal configuration required.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Network | |
| Fiber optic connector | SC |
| Converter input interface | 10Base-T |
| Ethernet LAN data rates | 10, 100 Mbit/s |
| Ethernet interface type | Fast Ethernet |
| Duplex system | Full, Half |
| Converter output interface | 100Base-FX |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 200 Mbit/s |
| Technical details | |
| Wavelength | 1310 nm |
| Maximum transfer distance | 30000 m |
| Fiber mode structure | Single-mode |
| Plug and Play | Yes |
| Internal | No |
| Sustainability certificates | RoHS |
| Performance | |
| Plug and Play | Yes |
| Wavelength | 1310 nm |
| Maximum transfer distance | 30000 m |
| Fiber mode structure | Single-mode |

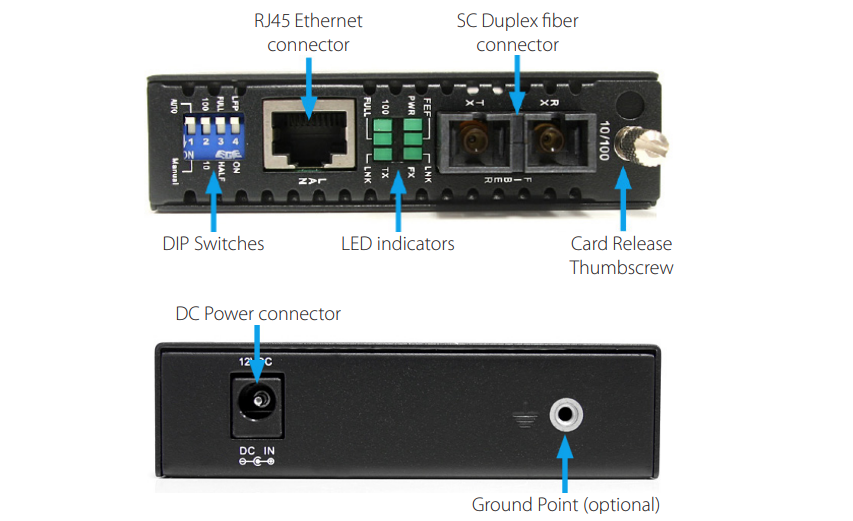

| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |

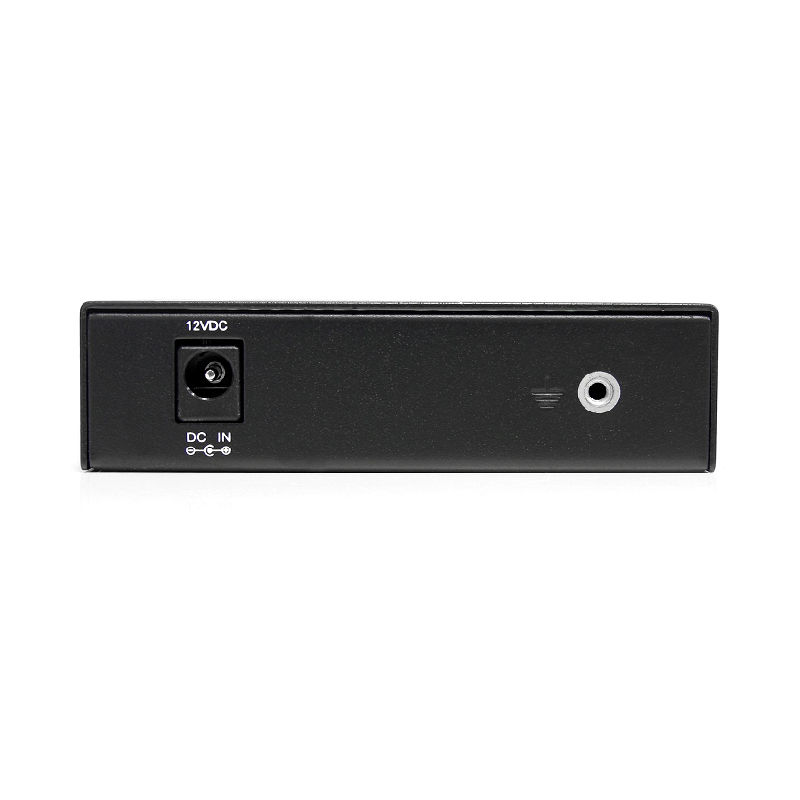

| DC-in jack | Yes |
| Design | |
| Product colour | Black |
| Certification | CE, FCC |
| Internal | No |
| Power | |
| Output voltage | 12 V |
| Output current | 1 A |
| External power adapter | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90 % |
| Weight & dimensions | |
| Width | 95 mm |
| Height | 20 mm |
| Depth | 160 mm |
| Weight | 600 g |
| Packaging data | |
| Package width | 206 mm |
| Package height | 89 mm |
| Package depth | 137 mm |
| Package weight | 766 g |
Full specification and details can be found in the PDF file

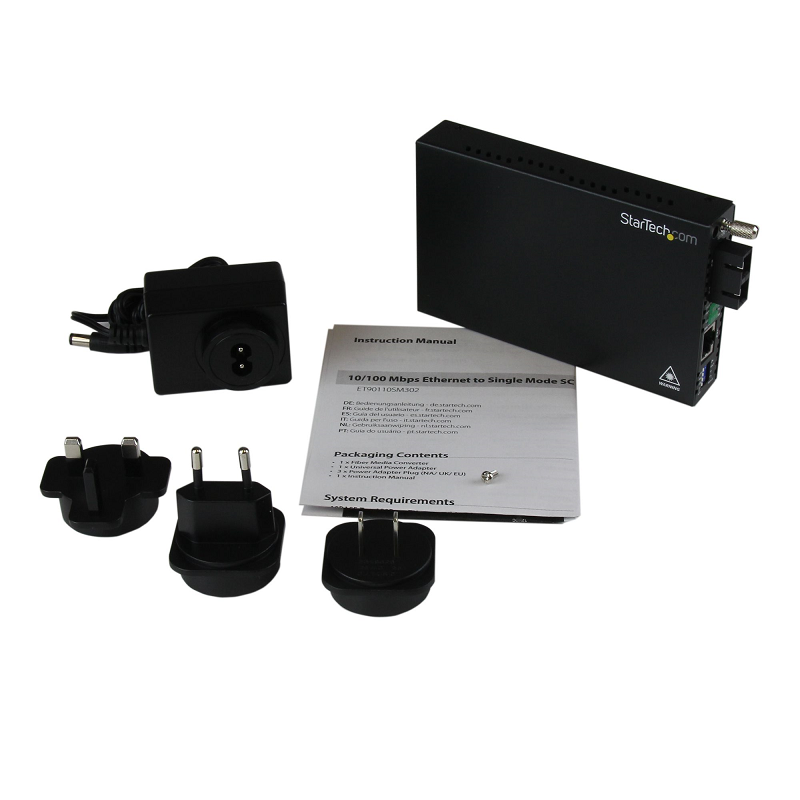

An instruction manual can be found in the PDF file
10/100 Mbps Single Mode Fiber Media Converter SC 30 km
Convert and extend a 10/100 Mbps Ethernet connection up to 18.6 miles/30km over Single Mode SC fiber
The ET90110SM302 10/100 Mbps Single Mode Fiber Media Converter SC (30 km) lets you extend a Fast Ethernet network (10/100) over single mode fiber, at distances up to 30 km (18.6 miles).
A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet to fiber solution, with an all-steel chassis, and simple plug-and-play installation with minimal configuration required.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Network | |
| Fiber optic connector | SC |
| Converter input interface | 10Base-T |
| Ethernet LAN data rates | 10, 100 Mbit/s |
| Ethernet interface type | Fast Ethernet |
| Duplex system | Full, Half |
| Converter output interface | 100Base-FX |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 200 Mbit/s |
| Technical details | |
| Wavelength | 1310 nm |
| Maximum transfer distance | 30000 m |
| Fiber mode structure | Single-mode |
| Plug and Play | Yes |
| Internal | No |
| Sustainability certificates | RoHS |
| Performance | |
| Plug and Play | Yes |
| Wavelength | 1310 nm |
| Maximum transfer distance | 30000 m |
| Fiber mode structure | Single-mode |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| DC-in jack | Yes |
| Design | |
| Product colour | Black |
| Certification | CE, FCC |
| Internal | No |
| Power | |
| Output voltage | 12 V |
| Output current | 1 A |
| External power adapter | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90 % |
| Weight & dimensions | |
| Width | 95 mm |
| Height | 20 mm |
| Depth | 160 mm |
| Weight | 600 g |
| Packaging data | |
| Package width | 206 mm |
| Package height | 89 mm |
| Package depth | 137 mm |
| Package weight | 766 g |
Full specification and details can be found in the PDF file
An instruction manual can be found in the PDF file
Product data is provided by Icecat, we do not warrant the accuracy of the material above.
