StarTech MCMGBSCSM10 GbE to SC Fiber Media Converter - 1000Base-LX - Single-mode - 10 km

Gigabit Ethernet to SC Fiber Media Converter - 1000Base-LX - Single-mode - 10 km

Convert and extend a Gigabit Ethernet connection up to 10 km over single-mode SC fiber

This fiber media converter converts and extends a Gigabit Ethernet (1000 Mbps) network up to 10 km over single-mode fiber on 1000BASE-LX networks.

Extend your GbE network cost-effectively

The fiber media converter provides a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.

Reliable and scalable network connectivity

Supporting a maximum single-mode fiber cable distance of up to 10 km (6.2 mi.), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also delivers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.

The MCMGBSCSM10 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

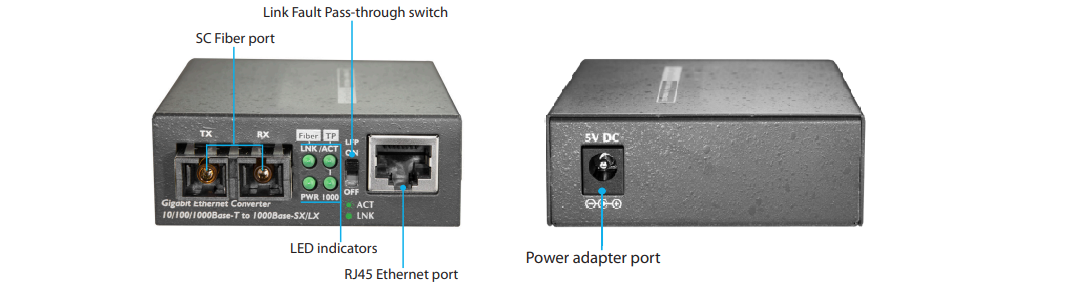

Product Diagram:

Applications:

• Extend an Ethernet connection by up to 10 km (6.2 miles) over a fiber backbone
• Create an economical Ethernet-fiber/copper-fiber link for connecting remote sub-networks to larger fiber-optic networks/backbones
• Converts Ethernet to fiber, and fiber to copper to provide a cost-effective networking solution

Features:

• Converts and extends a Gigabit Ethernet (1000 Mbps) network up to 10 km over single-mode fiber on 1000BASE-LX networks
• Provides a cost-effective Ethernet to fiber/copper to fiber link
• Supports a maximum distance of 10 km over single mode duplex fiber optic cable (SC connection)
• Compact design and wall mountable
• Non-blocking full wire-speed forwarding rate
• Provides DIP switch supporting Link Fault Pass-through function
• LED Indicators for simple Ethernet/fiber network link monitoring
• 1310 nm wavelength
• Supports IEEE 802.1q Tag VLAN pass through

Full specification and details can be found in the PDF file

A user quick start guide can be found in the PDF file

A product diagram can be found in the PDF file
