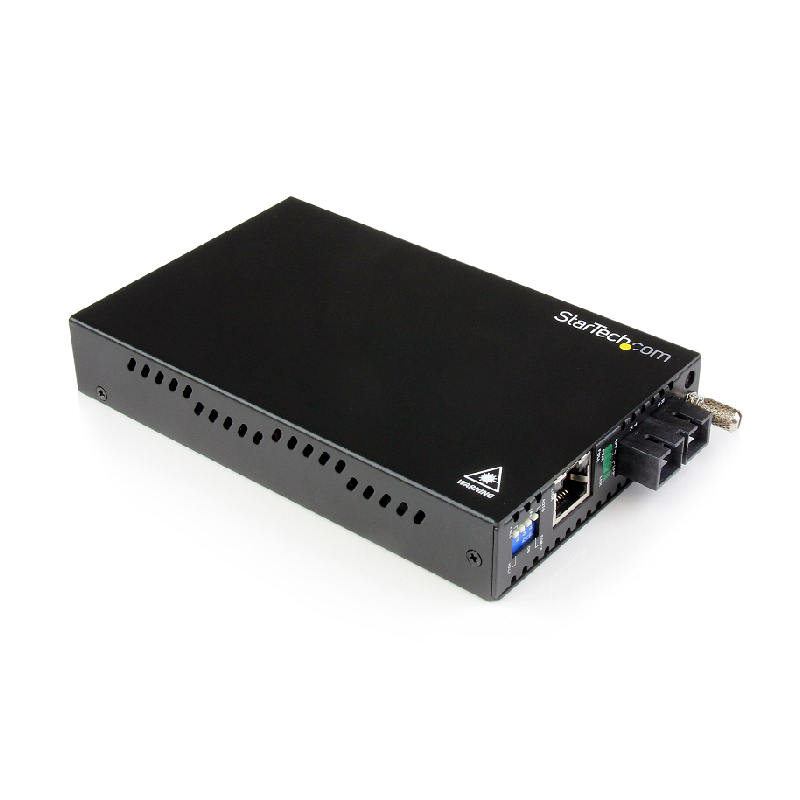

Gigabit Ethernet Single Mode Fiber Media Converter SC 40 km - 1000 Mbps
Convert and extend a Gigabit Ethernet connection up to 24.8 miles/40 km over Single Mode SC fiber
The ET91000SM402 1000 Mbps Gigabit Single Mode Fiber Media Converter SC (40 km) lets you extend a Gigabit Ethernet network over single mode fiber by up to 40km (25 miles).
A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the GbE to SM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to SC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Network | |
| Fiber optic connector | SC |
| Converter input interface | 1000Base-T |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Duplex system | Full, Half |
| Converter output interface | 1000Base-LX, 1000Base-SX |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 2000 Mbit/s |
| Technical details | |
| Wavelength | 1310 nm |
| Maximum transfer distance | 40000 m |
| Fiber mode structure | Single-mode |
| Plug and Play | Yes |
| Internal | No |
| Sustainability certificates | RoHS |
| Performance | |
| Plug and Play | Yes |
| Wavelength | 1310 nm |
| Maximum transfer distance | 40000 m |
| Fiber mode structure | Single-mode |
| Mean time between failures (MTBF) | 65000 h |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| DC-in jack | Yes |
| Design | |
| Product colour | Black |
| Certification | CE, FCC |
| Internal | No |
| Power | |
| Output voltage | 12 V |
| Output current | 1 A |
| Power consumption (typical) | 4 W |
| External power adapter | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90 % |
| Weight & dimensions | |
| Width | 95 mm |
| Height | 20 mm |
| Depth | 160 mm |
| Weight | 600 g |
| Packaging data | |
| Package width | 140 mm |
| Package height | 91 mm |
| Package depth | 205 mm |
| Package weight | 700 g |
Full specification and details can be found in the PDF file
An instruction manual can be found in the PDF file
