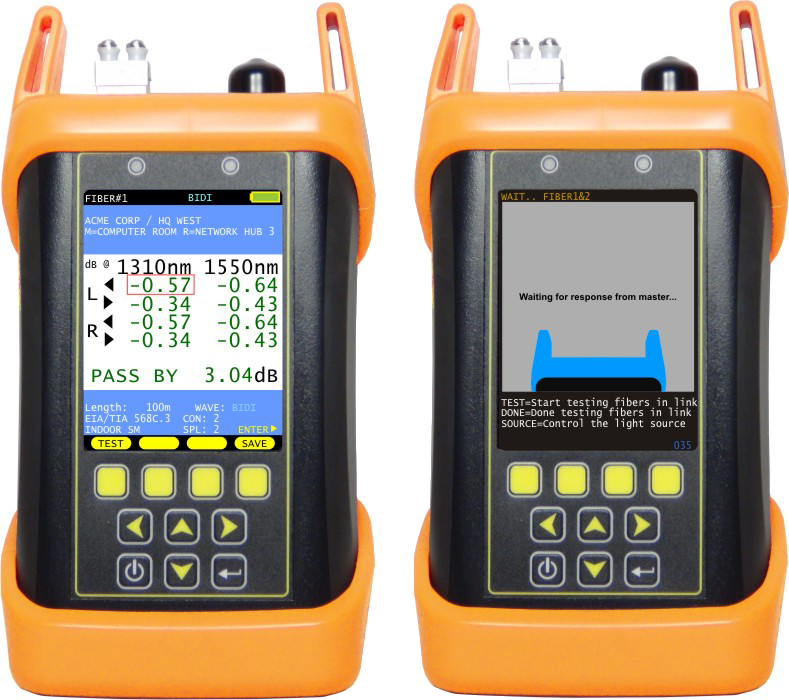

OWL Fiber 7 Master and Remote - Dual Wavelength MultiMode with VFL

Overview

Fiber OWL 7 series bi-directional certifiers are ideal for the fibre optic professional who requires accurate standards-based certification of fibre links (including the configuration of custom standards) and professional certification reports as proof of a job well done.

Each Fiber OWL 7 BIDI certifier comes with a matched set of testers (called a METER and INJECTOR), both of which are N.I.S.T. Traceable.

Each unit includes an OPM port (also called "detector" or "receiver") and a source port.

Each set comes in a hard-shell carrying case and includes protective rubber boots, certificates of NIST-traceability, and a USB flash drive with free OWLView certification software, USB driver, and operation manual.

Each BiDi certifier comes with a matching set of 2 units, a master and remote.

• Certification Reports: Used for long-term cable system warranties and assure clients of a job well done.
• Intuitive Link Wizard: Guides the setup and reference process with helpful tutorial diagrams via the colour LCD.
• Optical Loss Test Set (OLTS): Separate transmit and receive ports allow simultaneous dual-fibre testing.

Testing two fibres at a time:

1. Saves time by testing both fibres in opposite directions simultaneously
2. Allows link length measurement with every test

Fibre OWL 7 BIDI certifiers have two dual-fibre test modes:

PAIR: both fibres in a pair are certified in only one direction
Cabling standards only require fibres to be tested in one direction, so PAIR mode is the fastest way to certify fibre pairs according to cabling standards.

BIDI: both fibres in a pair are certified at two wavelengths in both directions
Bi-directional testing is not required by standards, but many end-users will request BIDI testing anyway. BIDI test mode is more thorough but is also more complicated and time-consuming.

Fibre OWL 7 series testers can also be used as a traditional one-fibre certifier (when used with a separate stand-alone light source), or as a stand-alone optical power meter.

Fibre OWL 7 series bi-directional certifiers are ideal for the fibre optic professional who requires accurate standards-based certification of fibre links (including the configuration of custom standards) and professional certification reports as proof of a job well done.

Each Fiber OWL 7 BIDI certifier comes with a matched set of testers (called a METER and INJECTOR), both of which are N.I.S.T. Traceable.

Each unit includes an OPM port (also called "detector" or "receiver") and a source port.

Each set comes in a hard-shell carrying case and includes protective rubber boots, certificates of NIST-traceability, and a USB flash drive with free OWLView certification software, USB driver, and operation manual.
