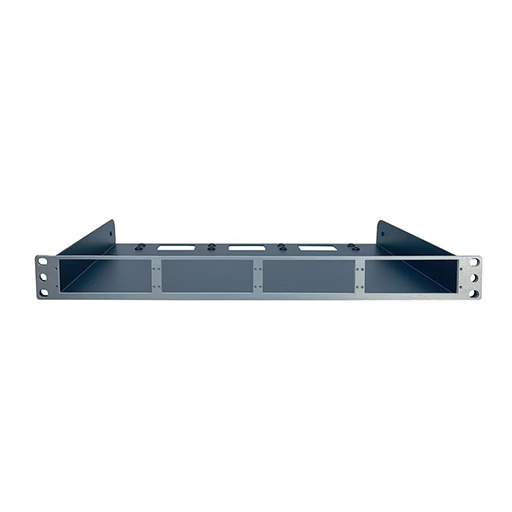

Veracity VRM-TRAY-BASE 1U Rackmount Tray and Fascia

A neatly-designed 1U rackmount tray & fascia allowing high-density rack-mounting of product for up to four VHW-HWPS-B8, four VCS-8P2 (or combination thereof) when used in conjunction with a VPSU-57V-1U-XX (-XX designates country-specific options) at rear.

The Base 8s can be mounted on the elegantly-designed brushed aluminium face plate, providing up to 32 Ethernet over Coax channels. Alternatively, thanks to the innovative design across all product groups, up to four CAMSWITCH 8 Plus Mobile units can also be located in the face plate as well enabling a mix of product in a discreet 1U space. The space-saving rearward mounting of a rack mountable VPSU-57V-1U PSU can also be accommodated, providing for significant power budget across multiple devices.

Key Features of Veracity VRM-TRAY-BASE

• Enables up to 4 LONGSPAN and or HIGHWIRE Base 8 units to be mounted in 1U
• Includes 1U fascia plate with 4 cut-outs for Base 8 units
• Allows up to 32 channels of Veracity network transmission to be mounted in 1U with power supplies at rear

Installation Approach

Designed for straightforward rack installation, the unit provides both front-facing alignment and rear space planning for supporting hardware such as power units. This helps maintain a structured layout while keeping cabling and device access manageable during setup and maintenance.

Use in Security Systems

Commonly used in professional CCTV and IP video deployments, the VRM-TRAY-BASE helps consolidate multiple transmission devices into a single rack position. This makes it suitable for environments where system density, organisation, and ease of servicing are important considerations.
