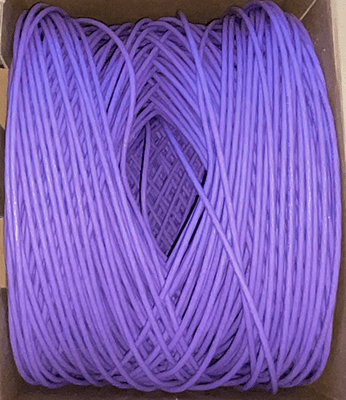

Molex PowerCat 6 U/UTP LS0H Cable Cca Violet 305m Easy Pull Box

Molex PowerCat 6 (C6) 4 Pair U/UTP cable has been designed to support high speed data transmission systems such as Gigabit Ethernet. The cable is part of the PowerCat 6 range of products that are designed to comply with the Category 6 specification.

Features & Advantages

• Category 6 compliant
• Color coded for ease of termination
• Supplied on 305m easy-pull boxes
• RoHS Compliant
• Reaction to Fire Euroclass: Cca-s1a,d1,a1

Technical Information

Mechanical

• Conductor Size: 0.530 ? 0.005mm
• Primary Insulation: Polyethylene
• Sheath Type: LS0H
• External O.D: 6.0 ? 0.3mm
• Sheath Color: Violet RAL4005
• Average NVP%: 65% (nom.)
• Minimum bend radius: 8 x o.d.
• Maximum Pulling force: 100N
• Operating Temperature: -15° to 75°C
• Installation Temperature: 0° to + 50°C

Electrical

• 1.0-250.0MHz Impedance (?): 100 ± 15
• 1.0-250.0MHz Delay Skew (ns/100m): 45
• DC Resistance (?/100m) max: 9.38
• DC Conductor Resistance Unbalance (%): Maximum 5.0
