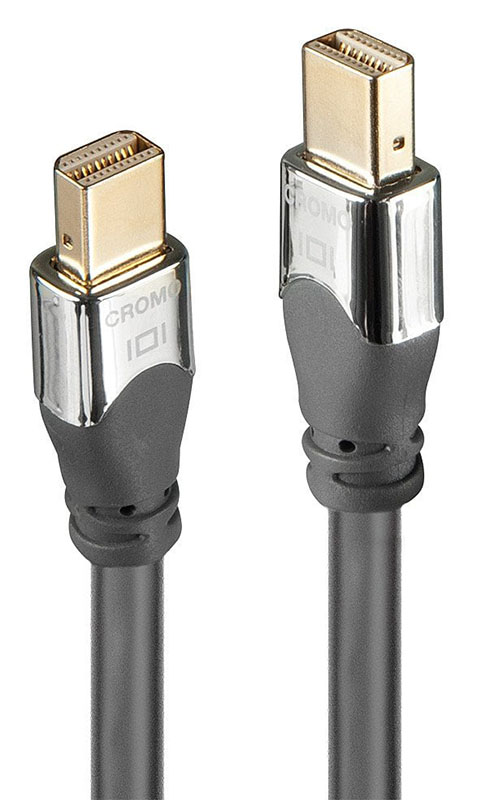

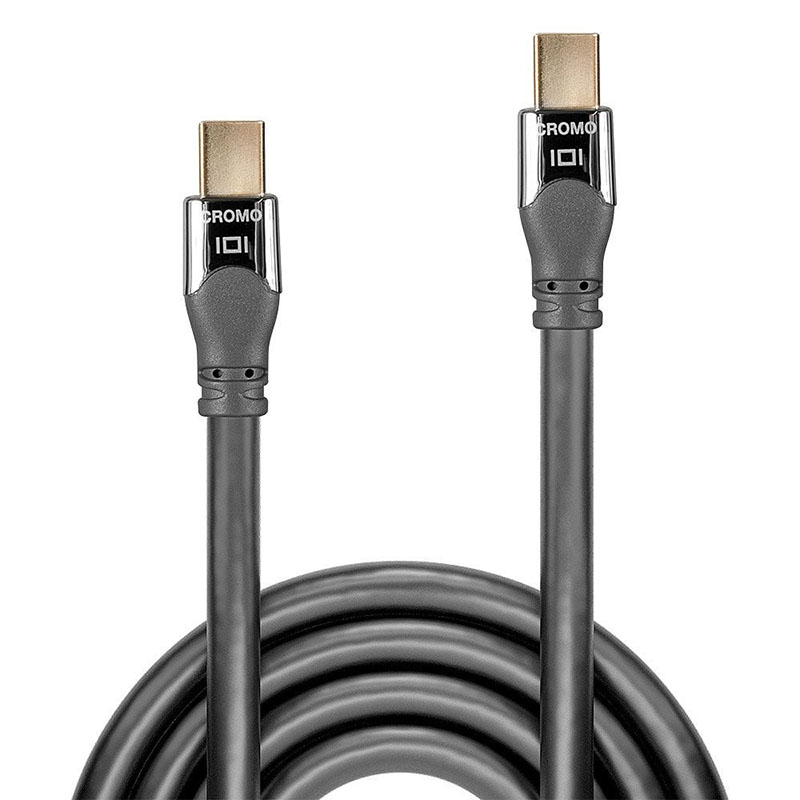

CROMO Mini DisplayPort Cables feature triple shielded construction with 32AWG conductors for premium performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 10bit, including stereoscopic 3D, are supported. CROMO Mini DisplayPort cables are capable of delivering 4:4:4 colour spacing for the most accurate colour representation possible.
CROMO cables feature sleek chrome design ABS housing to complement the aesthetics of style focused commercial and home applications.
CROMO Mini DisplayPort cables are available in lengths: 0.5m, 1m, 2m, 3m and 5m
Features
Technical Information
Connectors | |
Connector A | Mini DisplayPort (Male) |
Connector B | Mini DisplayPort (Male) |
Housing Material | Chromed plated ABS |
Pin Construction | Phosphor Bronze |
Pin Plating | 24K Gold 15µm |
Connector Plating | 24K Gold 3µm |
Dimensions WxDxH (approx.) |
10x32x7mm (0.39x1.26x0.28in) |
Cable Construction | |
Lengths Available | 0.5m, 1m, 2m, 3m and 5m |
Colour | Grey |
Standard | DisplayPort 1.2 |
Jacket Diameter | 5.5mm (0.22in) |
Jacket Material | PVC |
Conductor Material | Tinned Copper |
Conductor Gauge | 32AWG |
Type | Round |
Shielding | Copper Braid 85% |
Specifications | |
Supported Bandwidth | 21.6Gbps |
Maximum Resolution | 4096x2160@60Hz 4:4:4 10bit |
Nominal Attenuation | 300kHz-825MHz <5dB 825MHz-2.475GHz <5dB 2.475GHz-4.125GHz <12dB 4.125GHz-5.1GHz <20dB |
Minimum Bend Radius | 55mm (2.17in) |
Operating Temperature | -20°C - 80°C |
Storage Temperature | -25°C - 85°C |
