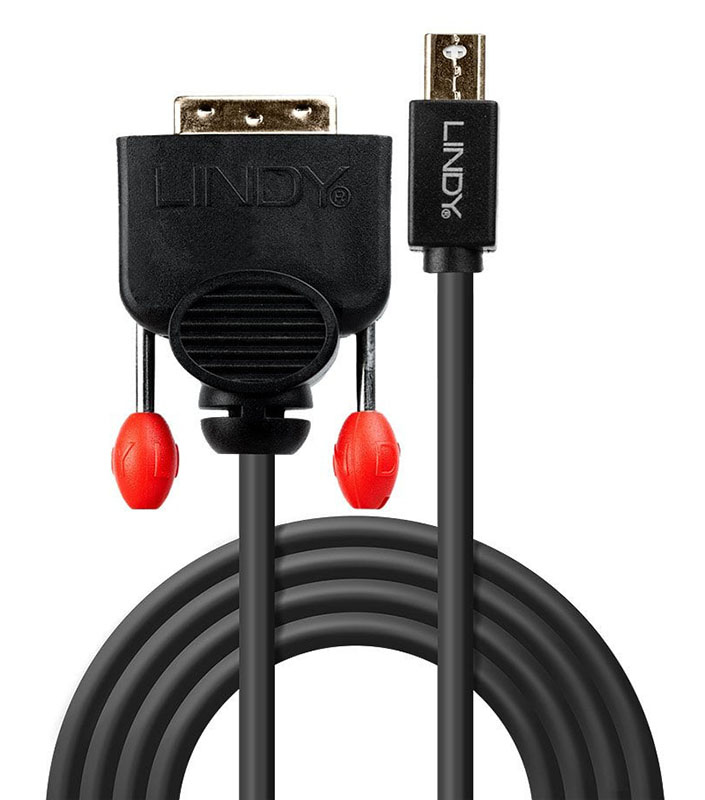

The Lindy Mini DisplayPort to DVI Cable is ideal for connecting a Mini DisplayPort equipped source such as a PC or laptop to a DVI display. It supports high definition video resolutions up to 1920x1200@60Hz.
This cable can also be used to add another display to extend the available desktop workspace and increase productivity, great for use in residential or workplace office setups.
Features
Technical Information
Connectors | |
Connector A | Mini DisplayPort (Male) |
Connector B | DVI-D Male |
Housing Material | PVC |
Pin Construction | Copper |
Pin Plating | Gold plated |
Connector Plating | Gold plated |
Dimensions WxDxH (approx.) |
Mini DisplayPort: 17.8x10.8x7.9mm (0.7x0.43x0.31in) DVI: 46x39.8x15.9mm (1.81x1.57x0.63in) |
Cable Construction | |
Lengths Available | 0.5m, 1m, 2m and 5m |
Colour | Black or White |
Standard | DVI-D (Single Link), DisplayPort 1.1 |
Jacket Diameter | 4.8mm (0.19in) |
Jacket Material | PVC |
Conductor Material | Tinned Copper |
Conductor Gauge | 30AWG |
Type | Round |
Shielding | Aluminum Braid 85% |
Specifications | |
Supported Bandwidth | 1.65Gbps |
Maximum Resolution | 1920x1200@60Hz |
Nominal Attenuation | 100MHz-450MHz 2.44-5.099dB 450MHz-8100MHz 5.094-32.906dB |
Minimum Bend Radius | 50mm (1.97in) |
Operating Temperature | 0°C - 70°C |
Storage Temperature | -10°C - 85°C |
