HPE P68820-421 ProLiant MicroServer Gen11 E-2414

The HPE ProLiant DL320 Gen11 is a compact 1U, single-socket server purpose-built for edge, telco, and SMB environments requiring a balanced mix of performance, scalability, and efficiency. Powered by the latest Intel® Xeon® processors and supporting DDR5 memory and PCIe Gen5 architecture, it delivers next-generation compute and connectivity in a dense form factor designed for constrained spaces.

Key Features

• Single-Socket Performance: Supports Intel® Xeon® E-2400, Intel® Xeon® 6300-series, and Intel® Pentium® Gold processors to match a wide range of workload needs.
• High-Speed DDR5 Memory: Up to 128 GB of memory capacity using four 4400 MT/s DDR5 UDIMMs for improved bandwidth and performance.
• PCIe Gen5 Expansion: Offers two expansion slots with PCIe Gen5 for faster throughput and support for modern add-on devices.
• Compact 1U Design: Space-efficient chassis ideal for edge deployments and infrastructure with limited rack capacity.
• Built-in Remote Management: HPE iLO6 included by default—no activation module required for full remote server management.
• Flexible Storage Options: Supports multiple drive bays for various storage configurations, including M.2 boot support.

What's New

• The latest Intel® Xeon® 6300-series, Intel® Xeon® E-2400, and Intel® Pentium® Gold processors supported.
• Four 4400 MT/s HPE DDR5 UDIMMs, offering 16 GB and 32 GB options, with up to 128 GB total memory capacity.
• Two PCIe expansion slots supporting the latest PCIe 5.0 standard for faster bandwidth.
• Optional M.2 slot enables fast OS boot times (available via optional HPE iLO/M.2/serial port kit).
• Optional serial port support through the dedicated HPE iLO/M.2/serial port option kit.
• Built-in HPE iLO6 remote server management now included—no module or activation key required.

Efficient Design for Space-Conscious Deployments

The HPE ProLiant DL320 Gen11 offers high-density compute power in a 1U rack form factor. This compact design is ideal for telco edge, remote offices, and SMBs where physical space and power usage are constrained.

Next-Gen Performance and Memory Bandwidth

By integrating support for the latest Intel® Xeon® processors and DDR5 memory, the server boosts workload performance across virtualization, file/print, web hosting, and entry-level database applications. The faster memory speeds and improved efficiency help maintain throughput under pressure.

Modern I/O and Expansion Capabilities

With two PCIe Gen5 slots, the DL320 Gen11 supports high-bandwidth network cards, accelerators, or storage controllers. It’s designed for scalable configurations that grow with evolving application demands.

Integrated Management and Security

The server comes standard with HPE iLO6 for remote administration, enhancing provisioning and ongoing system health management. With built-in security features, including Silicon Root of Trust, the DL320 Gen11 aligns with zero-trust infrastructure goals.

I/O Diagram (Front)

Key	Component
1	Four (4) LFF NHP SATA HDD cage
2	Hard drive screws
3	USB 3.2 Gen2 Type-A ports

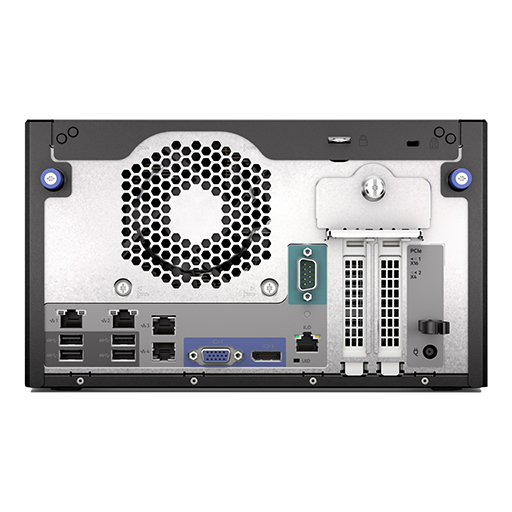

I/O Diagram (Back)

Key	Component
1	Padlock eye
2	Kensington security slot
3	(1) PCIe Gen5 low-profile slot (PCIe5 x16)
4	(1) PCIe Gen4 low-profile slot (PCIe4 x8)
5	Power clip hole (for the power cord clip to firmly secure the power adapter cord)
6	Power jack
7	Serial port (optional, enabled by the dedicated iLO/M.2/serial port kit)
8	iLO dedicated NIC port (optional, enabled by the dedicated iLO/M.2/serial port kit)
9	Display Port 1.1a
10	VGA Port
11	Four (4) NIC ports (NIC1-4 from left, where NIC port #1 supports shared iLO port)
12	Four (4) USB 3.2 Gen1 Type-A ports
