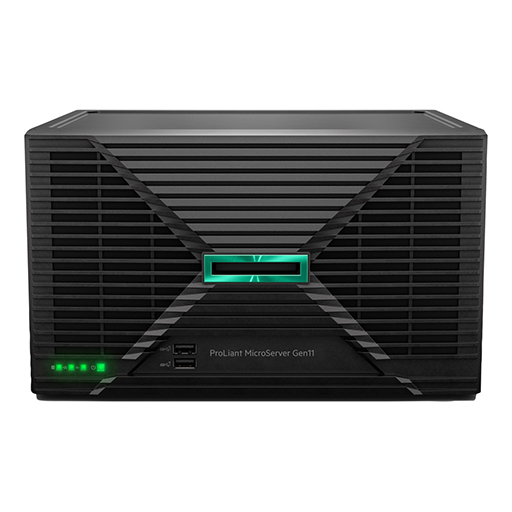

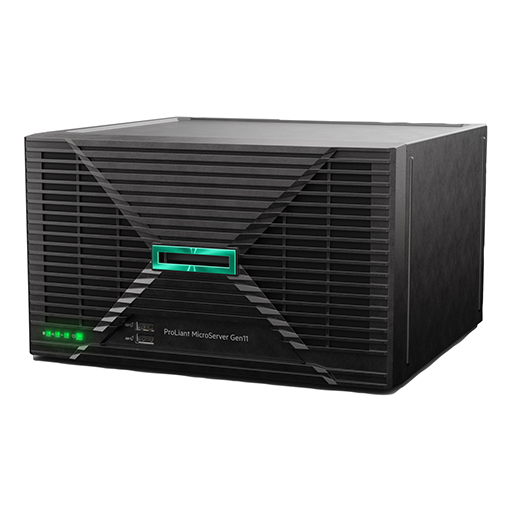

HPE P68819-421 ProLiant MicroServer Gen11 G7400

The HPE ProLiant MicroServer Gen11 G7400 is a compact yet powerful solution designed for small businesses and remote offices that require reliable computing performance in a space-efficient form factor. With its Intel® Xeon® G7400 2-core processor, the server delivers a blend of power and efficiency, perfect for essential tasks like file sharing, data backups, and light virtualization. Combined with scalable storage options and a 180W external power supply, this server is built to handle the demands of modern small-scale operations.

Key Features

• Intel® Xeon® G7400 2-core processor for dependable performance
• Supports up to four LFF drives, offering flexibility for expanding storage
• 180W external power supply for efficient energy consumption
• Compact, space-saving design, ideal for small offices
• Perfect for small businesses and remote offices

What's New

• The latest Intel® Xeon® 6300-series, Intel® Xeon® E-2400, and Intel® Pentium® Gold processors supported.
• Four 4400 MT/s HPE DDR5 UDIMMs, offering 16 GB and 32 GB options, with up to 128 GB total memory capacity.
• Two PCIe expansion slots supporting the latest PCIe 5.0 standard for faster bandwidth.
• Optional M.2 slot enables fast OS boot times (available via optional HPE iLO/M.2/serial port kit).
• Optional serial port support through the dedicated HPE iLO/M.2/serial port option kit.
• Built-in HPE iLO6 remote server management now included—no module or activation key required.

Intel Dualcore Processor

The Intel® Xeon® G7400 2-core processor inside the HPE ProLiant MicroServer Gen11 G7400 delivers solid performance without the high energy demands of larger systems. This processor is well-suited to handle daily tasks and essential business applications, ensuring your server performs optimally without lag or downtime.

Scailable Storage

For businesses that require scalable storage, the ProLiant MicroServer Gen11 G7400 is ready to grow with you. It supports up to four LFF drives, allowing you to customize your storage needs as your business expands. Whether you're storing critical data or backups, the server provides the flexibility to meet your changing requirements.

Energy Efficient Power Supply

Efficiency is at the heart of the HPE ProLiant MicroServer Gen11 G7400, thanks to its 180W external power supply. Not only does it minimize power consumption, but it also reduces operational costs, all while providing the necessary power to run your server smoothly. This energy-efficient design ensures your server stays reliable without inflating your energy bills.

Compact Design and Easy Deployment

Designed for environments with limited space, the HPE ProLiant MicroServer Gen11 G7400’s compact form factor makes it ideal for small offices and remote locations. Whether you’re deploying it in a tight server rack or under a desk, the compact design doesn’t compromise on performance, making it the perfect solution for businesses with space constraints

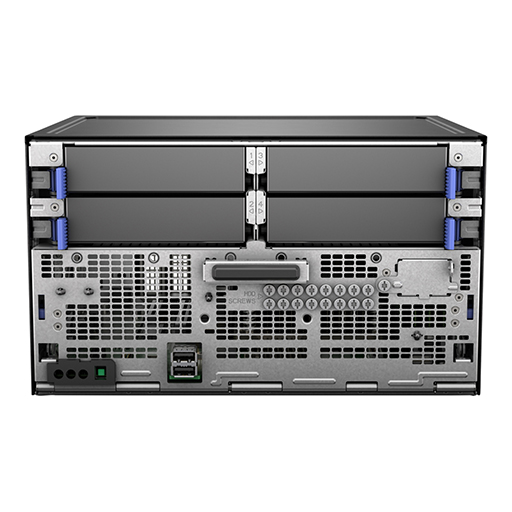

I/O Diagram (Front)

Key	Component
1	Four (4) LFF NHP SATA HDD cage
2	Hard drive screws
3	USB 3.2 Gen2 Type-A ports

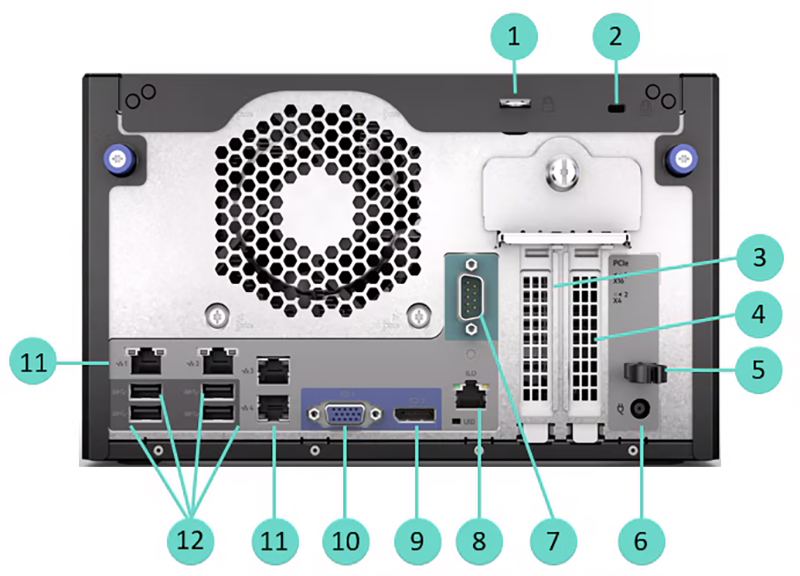

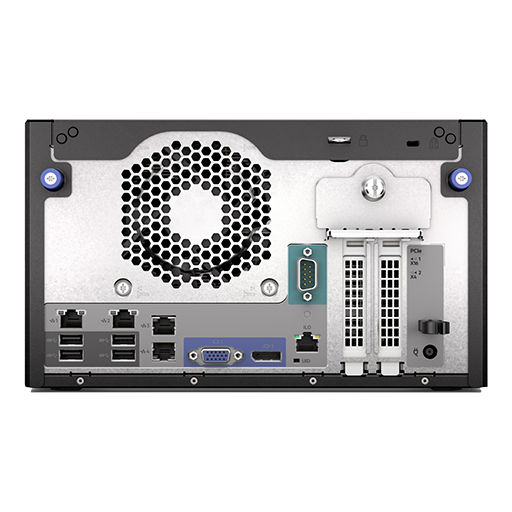

I/O Diagram (Back)

Key	Component
1	Padlock eye
2	Kensington security slot
3	(1) PCIe Gen5 low-profile slot (PCIe5 x16)
4	(1) PCIe Gen4 low-profile slot (PCIe4 x8)
5	Power clip hole (for the power cord clip to firmly secure the power adapter cord)
6	Power jack
7	Serial port (optional, enabled by the dedicated iLO/M.2/serial port kit)
8	iLO dedicated NIC port (optional, enabled by the dedicated iLO/M.2/serial port kit)
9	Display Port 1.1a
10	VGA Port
11	Four (4) NIC ports (NIC1-4 from left, where NIC port #1 supports shared iLO port)
12	Four (4) USB 3.2 Gen1 Type-A ports
