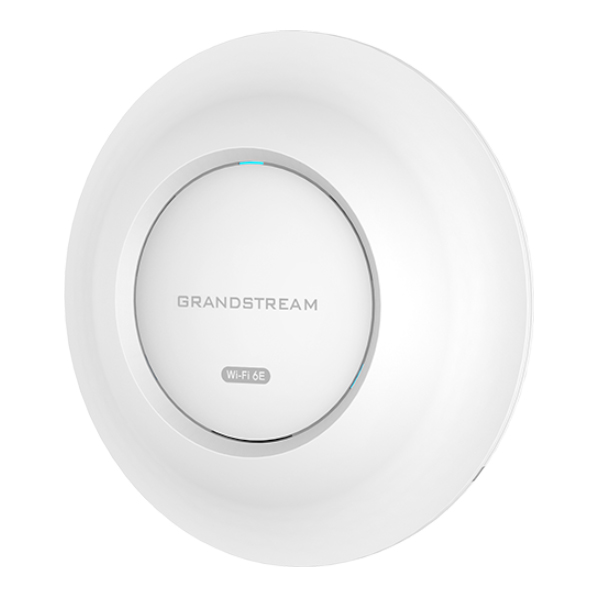

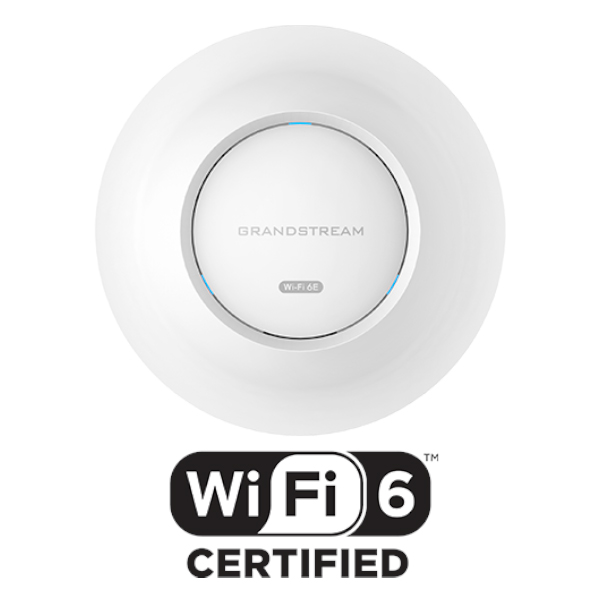

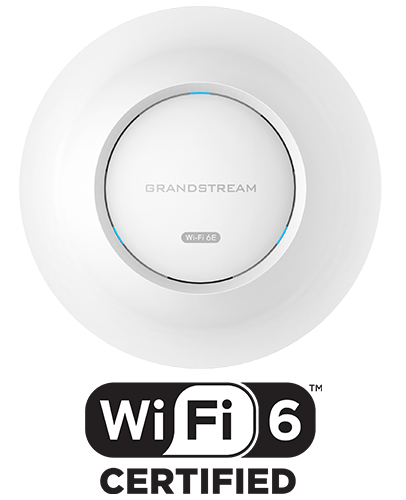

Grandstream GWN7665 Tri-Band Wi-Fi 6E Access Point

Grandstream GWN7665 Indoor Tri-Band Wi-Fi 6E Access Point with 5.4Gbps Throughput, 6GHz Support and 2.5GbE

The Grandstream GWN7665 is a powerful enterprise-grade 802.11ax tri-band Wi-Fi 6E access point for business-grade wireless deployments with medium-to-high user density. It supports 5.4Gbps aggregate wireless throughput, tri-band 2x2:2 MU-MIMO with DL/UL OFDMA, 384 concurrent Wi-Fi clients and a coverage range of up to 175 metres.

Designed for small-to-medium businesses, multi-floor buildings, residential settings and commercial locations, the GWN7665 adds 6GHz wireless support for compatible Wi-Fi 6E devices. One Gigabit Ethernet port and one 2.5 Gigabit Ethernet port provide wired connectivity, while PoE/PoE+ allows power and network data to reach the access point through one Ethernet cable.

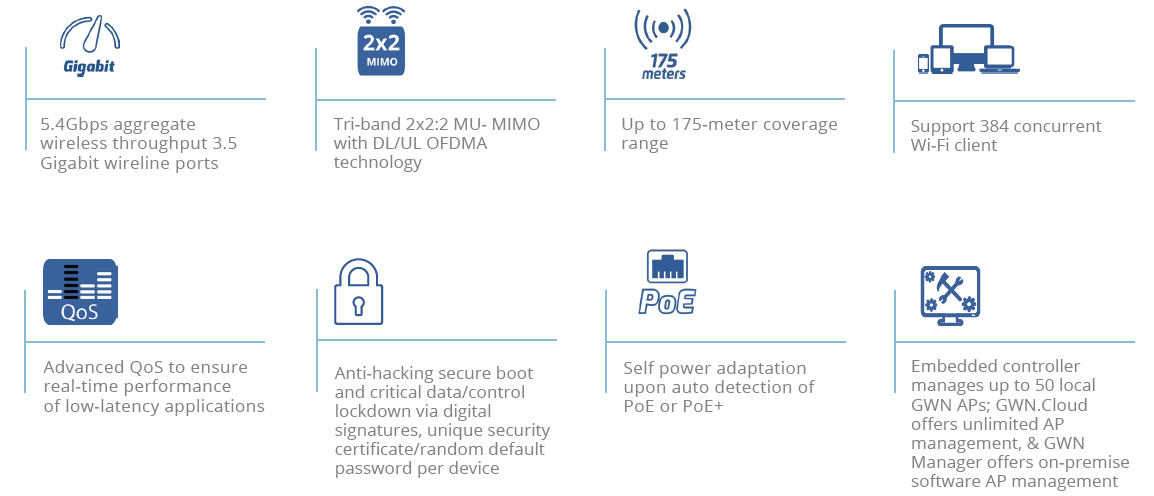

Key Features:

• Enterprise-grade indoor 802.11ax tri-band Wi-Fi 6E access point
• 5.4Gbps aggregate wireless throughput across 2.4GHz, 5GHz and 6GHz bands
• Tri-band 2x2:2 MU-MIMO with DL/UL OFDMA technology (MU-MIMO = Multi-User Multiple Input, Multiple Output; OFDMA = Orthogonal Frequency-Division Multiple Access)
• Supports 384 concurrent Wi-Fi client devices and a coverage range of up to 175 metres, subject to environment and installation conditions
• 48 SSIDs in total, with up to 16 per radio across 2.4GHz, 5GHz and 6GHz bands (SSID = Service Set Identifier)

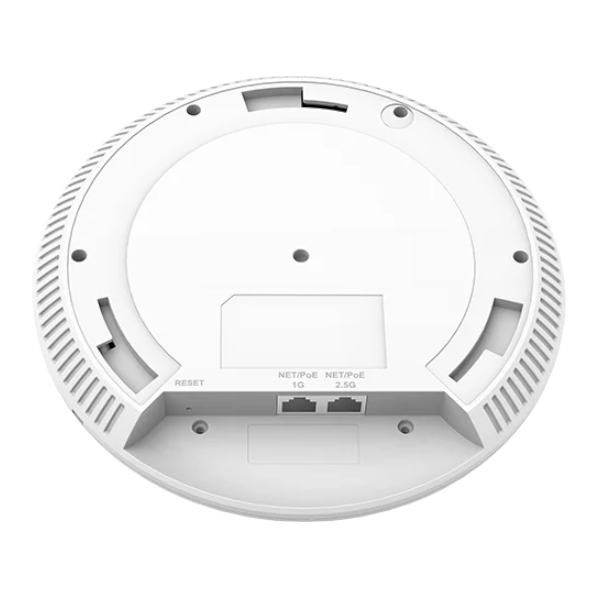

• One Gigabit Ethernet port and one 2.5 Gigabit Ethernet port with PoE/PoE+ support (PoE = Power over Ethernet)
• Bluetooth Low Energy 5.2, advanced QoS, mesh networking, captive portal and WPA3 security support (QoS = Quality of Service)
• Embedded controller can manage up to 50 local GWN access points, with GDMS Networking and GWN Manager also supported

The GWN7665 is well suited to indoor wireless networks where higher capacity, 6GHz support and efficient management are important. It is suitable for offices, hospitality spaces, residential buildings, commercial locations and other medium-to-high density wireless environments.

Key Benefits:

• Tri-band Wi-Fi 6E adds 6GHz capacity for compatible devices
• 5.4Gbps wireless throughput helps support demanding indoor networks
• 2.5 Gigabit Ethernet connectivity helps reduce wired-side bottlenecks
• PoE/PoE+ simplifies installation by carrying power and network data through one cable
• Controller-less, cloud and on-premise management options support both smaller sites and larger managed networks
• Guest access, VLAN and multi-SSID support help separate staff, visitor, voice and device traffic

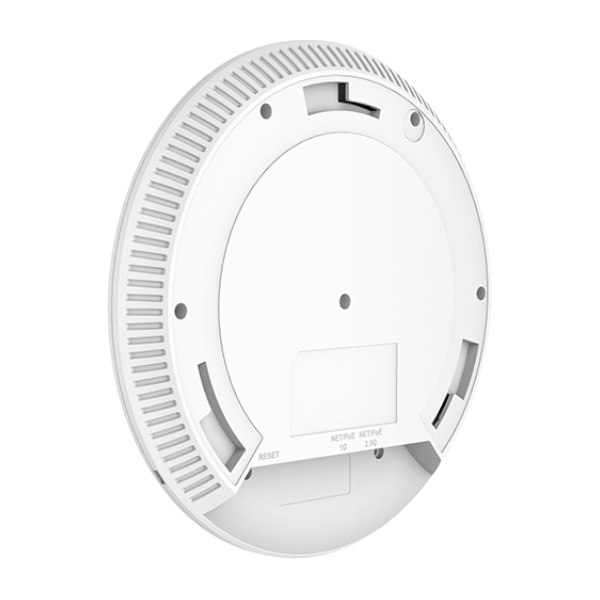

• Wall and ceiling mounting kits support flexible indoor installation

The package includes the GWN7665 wireless access point, indoor wall/ceiling mounting kits and a Quick Start Guide.

Comms Express offers a choice of indoor models in the Grandstream Wireless Access Points range, including:
GWN7662 - indoor Wi-Fi 6, 5.38Gbps, 1G + 2.5GbE, 256 clients
GWN7664 - indoor Wi-Fi 6, 3.55Gbps, 1G + 2.5GbE, 750+ clients
GWN7664E - indoor Wi-Fi 6, 6Gbps, dual 2.5G ports, 512 clients
GWN7665 - indoor Wi-Fi 6E, tri-band, 5.4Gbps, 384 clients

Our broader Wireless Access Points range includes business wireless solutions from Grandstream and many other leading manufacturers.

For wider wireless network installations, Comms Express also offers PoE Switches for Power over Ethernet cabling, and RJ45 Ethernet Cables & Patch Leads for network connections.

*For complete specifications see the documentation tab above

For VLAN setup guidance, see Grandstream's GWN76xx Multi-VLAN Configuration Guide
