Grandstream GWN7664 WiFi 6 Access Point

Grandstream GWN7664 Indoor Wi-Fi 6 Access Point with 3.55Gbps Throughput, 4x4:4 MU-MIMO and 2.5GbE

The Grandstream GWN7664 is a powerful enterprise-grade 802.11ax Wi-Fi 6 access point for businesses that need high-capacity wireless coverage across offices, multi-floor buildings, residential settings and commercial locations. It supports 3.55Gbps aggregate wireless throughput, dual-band 4x4:4 MU-MIMO with DL/UL OFDMA, 750+ concurrent Wi-Fi clients and a coverage range of up to 175 metres.

Designed for medium-to-high density wireless deployments, the GWN7664 combines strong Wi-Fi 6 performance with 1G and 2.5G Ethernet connectivity. PoE/PoE+ support allows power and network data to reach the access point through one Ethernet cable, while built-in controller functionality and Grandstream cloud/on-premise management support give administrators flexible deployment options.

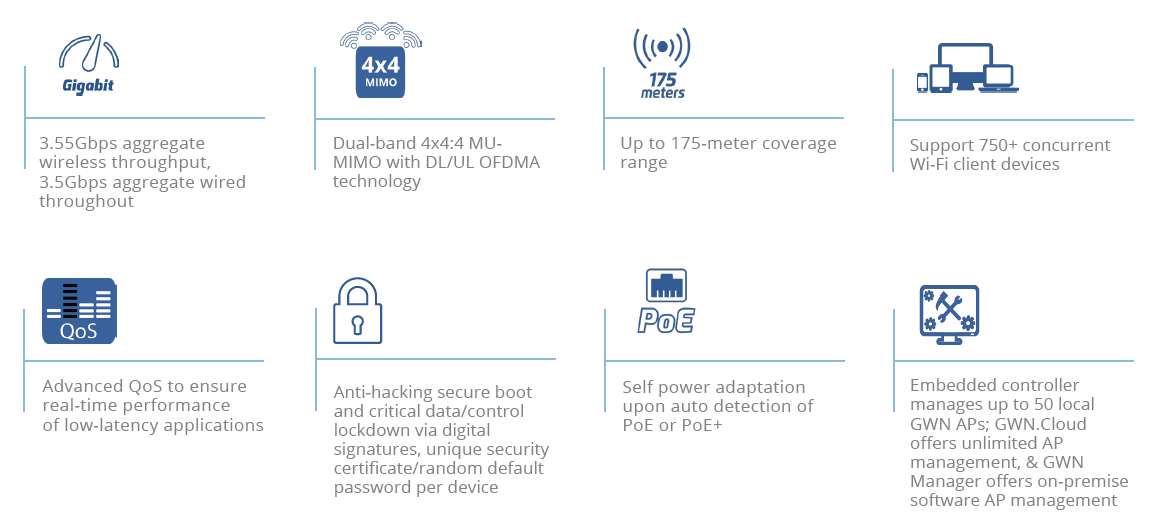

Key Features:

• Enterprise-grade indoor 802.11ax Wi-Fi 6 access point
• 3.55Gbps aggregate wireless throughput with dual-band 4x4:4 MU-MIMO and DL/UL OFDMA (MU-MIMO = Multi-User Multiple Input, Multiple Output; OFDMA = Orthogonal Frequency-Division Multiple Access)
• Supports 750+ concurrent Wi-Fi client devices and a coverage range of up to 175 metres, subject to environment and installation conditions
• One 1G Ethernet port and one 2.5G Ethernet port, supporting 3.5Gbps aggregate wired throughput
• PoE/PoE+ support with self power adaptation upon auto detection (PoE = Power over Ethernet)
• 32 SSIDs in total, with up to 16 per radio across 2.4GHz and 5GHz bands (SSID = Service Set Identifier)
• Advanced QoS, mesh networking, captive portal and WPA3 security support (QoS = Quality of Service)
• Embedded controller can manage up to 50 local GWN access points, with Grandstream cloud and GWN Manager support also available

The GWN7664 is well suited to business-grade wireless networks where higher client capacity, stable connections and strong 5GHz/2.4GHz performance are important. It is suitable for offices, retail spaces, hospitality environments, education, residential buildings and other indoor locations with medium-to-high user density.

Key Benefits:

• High client capacity helps support busy wireless environments
• 4x4:4 Wi-Fi 6 performance helps maintain stable service across multiple users and devices
• 2.5G Ethernet connectivity helps reduce wired-side bottlenecks
• PoE/PoE+ simplifies installation by carrying power and network data through one cable
• Controller-less, cloud and on-premise management options support both smaller sites and larger managed networks
• Guest access, VLAN and multi-SSID support help separate staff, visitor, voice and device traffic
• Wall and ceiling mounting kits support flexible indoor installation

The package includes the GWN7664 802.11ax wireless access point, wall/ceiling mounting kits and a Quick Start Guide.

Comms Express offers a choice of GWN7664 models in the Grandstream Wireless Access Points range, including:
GWN7664 - indoor, 3.55Gbps, 1G + 2.5GbE, 750+ clients
GWN7664E - indoor, 6Gbps, dual 2.5G ports, 512 clients
GWN7664LR - outdoor, 3.55Gbps, 300m range, 750+ clients
GWN7664ELR - outdoor, 6Gbps, 300m range, 2.5G RJ45 + SFP, 512 clients

Our broader Wireless Access Points range includes business wireless solutions from Grandstream and many other leading manufacturers.

For wider wireless network installations, Comms Express also offers PoE Switches for Power over Ethernet cabling, and RJ45 Ethernet Cables & Patch Leads for network connections.

*For complete specifications see the documentation tab above

For VLAN setup guidance, see Grandstream's GWN76xx Multi-VLAN Configuration Guide
