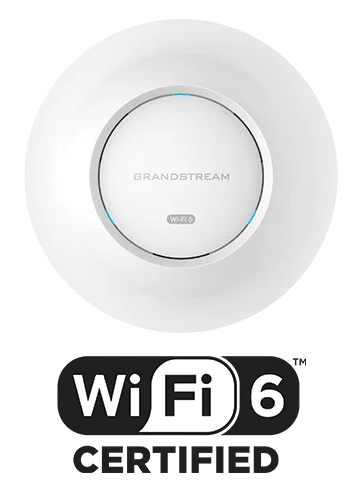

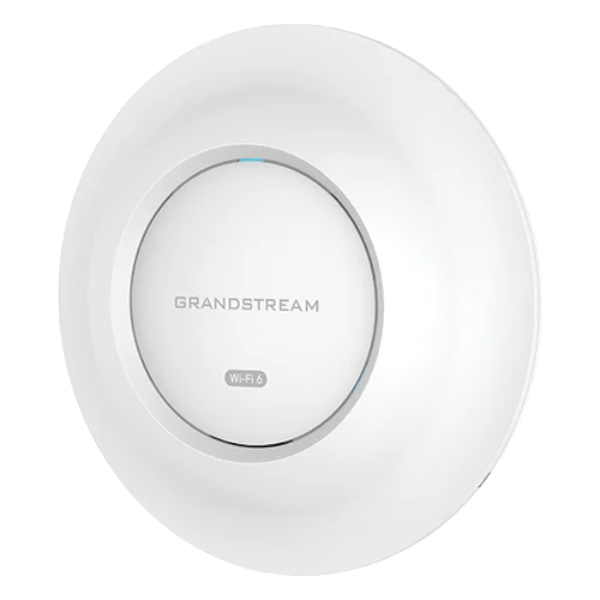

Grandstream GWN7662 WIFI 6 AX5400 HYBRID AP

Grandstream GWN7662 Indoor AX5400 Wi-Fi 6 Hybrid Access Point with 5.38Gbps Throughput, 4x4:4 MU-MIMO and 2.5GbE

The Grandstream GWN7662 is an enterprise-grade AX5400 Wi-Fi 6 access point for businesses that need higher-capacity wireless coverage in busy indoor environments. It supports 5.38Gbps wireless throughput, 5GHz 4x4:4 MU-MIMO with DL/UL OFDMA, 256 concurrent Wi-Fi clients and a coverage range of up to 175 metres.

Designed for small-to-medium businesses, offices, retail, restaurants, hospitality and education, the GWN7662 combines high-performance wireless access with Gigabit and 2.5-Gigabit wired connectivity. PoE/PoE+ support allows power and network data to reach the access point through one Ethernet cable.

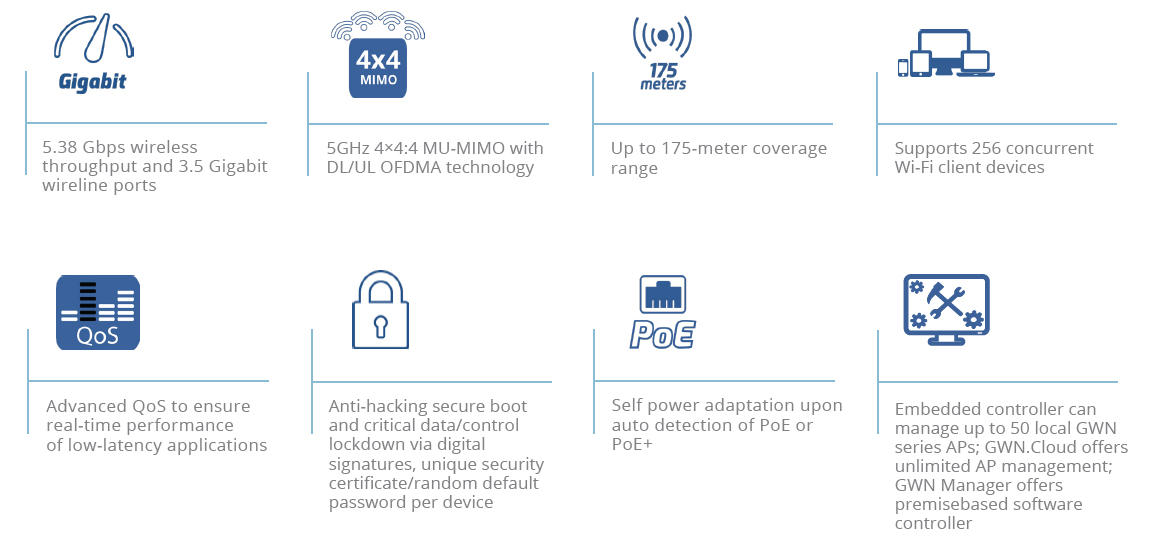

Key Features:

• Indoor AX5400 802.11ax Wi-Fi 6 access point
• 5.38Gbps wireless throughput with 5GHz 4x4:4 MU-MIMO and DL/UL OFDMA (MU-MIMO = Multi-User Multiple Input, Multiple Output; OFDMA = Orthogonal Frequency-Division Multiple Access)
• 2.4GHz 2x2:2 MU-MIMO support for dual-band wireless connectivity
• Supports 256 concurrent Wi-Fi client devices and a coverage range of up to 175 metres, subject to environment and installation conditions

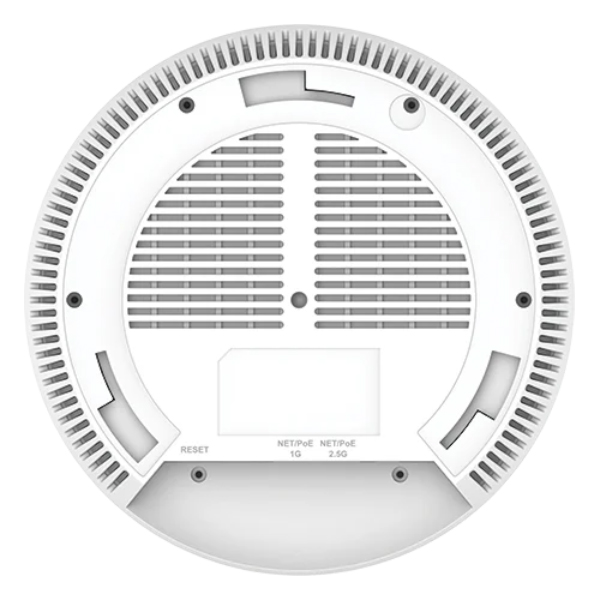

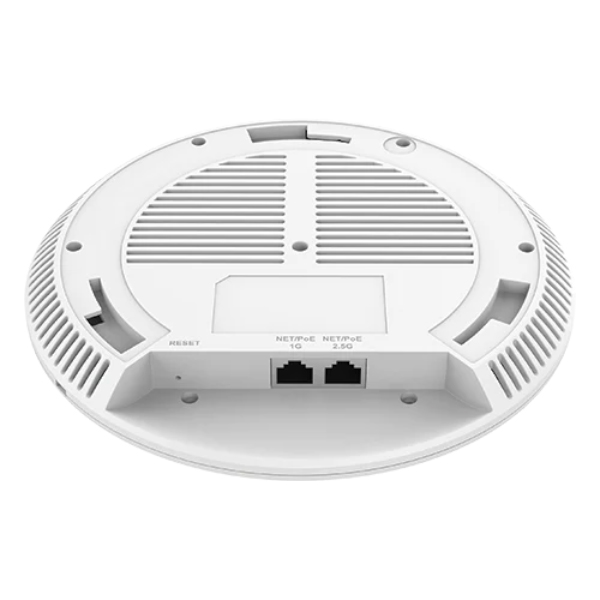

• One autosensing 10/100/1000Mbps Ethernet port and one autosensing 10/100/1000/2500Mbps Ethernet port
• PoE/PoE+ support with self power adaptation upon auto detection (PoE = Power over Ethernet)
• 32 SSIDs in total, with up to 16 per radio across 2.4GHz and 5GHz bands (SSID = Service Set Identifier)
• Advanced QoS, mesh networking, captive portal and WPA3 security support (QoS = Quality of Service)
• Embedded controller can manage up to 50 local GWN access points, with GDMS Networking and GWN Manager also supported

The GWN7662 is well suited to medium-density indoor wireless deployments where 5GHz performance, Wi-Fi 6 efficiency and wired-side capacity are important. It is suitable for office areas, retail spaces, hospitality environments, classrooms and other locations where multiple users and devices need reliable managed Wi-Fi.

Key Benefits:

• AX5400 Wi-Fi 6 performance helps support busy wireless environments
• 5GHz 4x4:4 MU-MIMO helps maintain performance where multiple devices are connected
• 2.5-Gigabit Ethernet connectivity helps reduce wired-side bottlenecks
• PoE/PoE+ simplifies installation by carrying power and network data through one cable
• Controller-less, cloud and on-premise management options support both smaller sites and larger managed networks
• Guest access, VLAN and multi-SSID support help separate staff, visitor, voice and device traffic

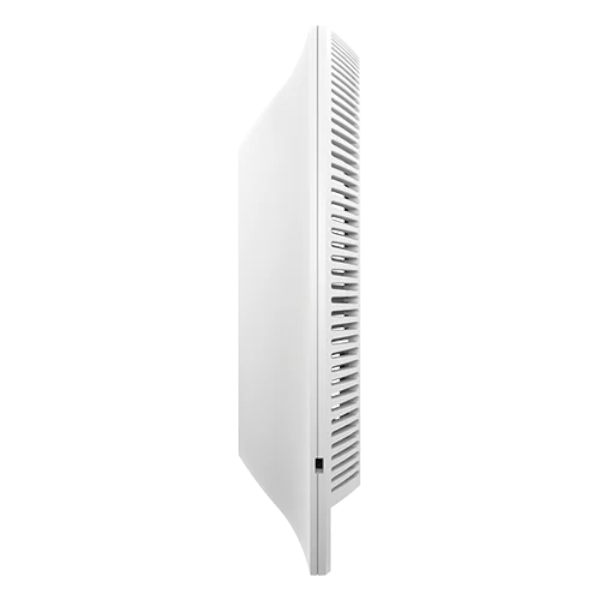

• Wall and ceiling mounting kits support flexible indoor installation

The package includes the GWN7662 indoor Wi-Fi 6 wireless access point, wall/ceiling mounting kits and a Quick Installation Guide.

Comms Express offers a choice of indoor models in the Grandstream Wireless Access Points range, including:
GWN7660 - indoor, 1.77Gbps, dual Gigabit Ethernet, 500+ clients
GWN7662 - indoor, 5.38Gbps, 1G + 2.5GbE, 256 clients
GWN7664E - indoor, 6Gbps, dual 2.5G ports, 512 clients
GWN7665 - indoor Wi-Fi 6E, tri-band, 5.4Gbps, 384 clients

Our broader Wireless Access Points range includes business wireless solutions from Grandstream and many other leading manufacturers.

For wider wireless network installations, Comms Express also offers PoE Switches for Power over Ethernet cabling, and RJ45 Ethernet Cables & Patch Leads for network connections.

*For complete specifications see the documentation tab above

For VLAN setup guidance, see Grandstream's GWN76xx Multi-VLAN Configuration Guide
