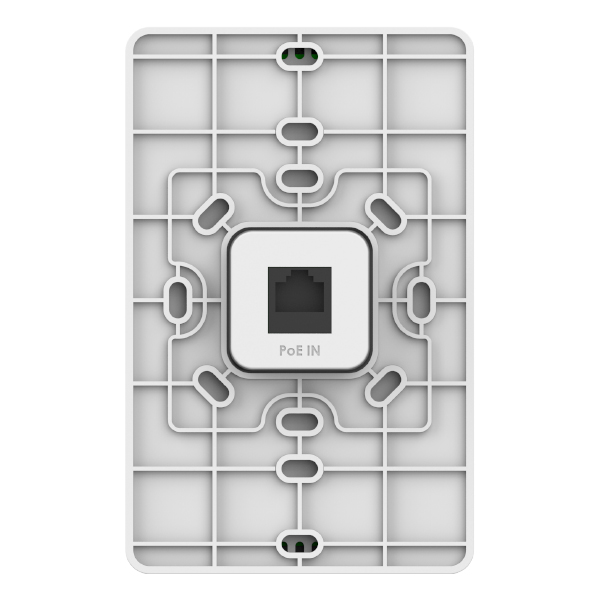

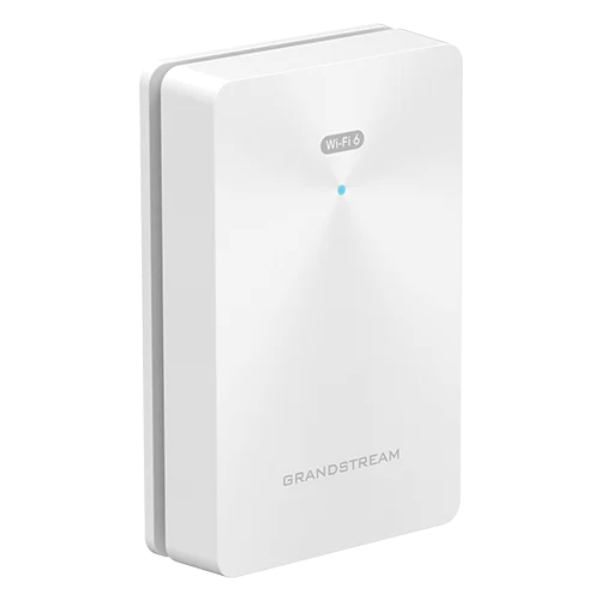

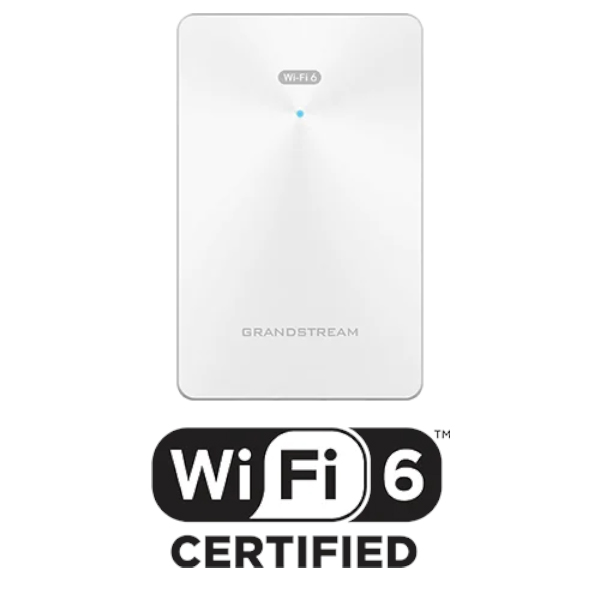

Grandstream GWN7661E in-wall AX3000 Wi-Fi 6 Access Point

Grandstream GWN7661E In-Wall AX3000 Wi-Fi 6 Access Point with 3Gbps Throughput, 4 Gigabit Ports and PoE/PoE+

The Grandstream GWN7661E is an in-wall 802.11ax Wi-Fi 6 access point for small-to-medium businesses, offices, hotels, apartments, homes and similar indoor locations. It supports 3Gbps wireless throughput, 2x2:2 2.4GHz and 3x3:2 5GHz MU-MIMO with OFDMA, 256 concurrent Wi-Fi clients and a coverage range of up to 100 metres.

Designed for clean in-wall installation, the GWN7661E combines managed wireless access with wired connectivity for local devices. One Gigabit uplink port supports PoE/PoE+, while three additional Gigabit Ethernet ports can connect IP phones, TVs, computers and similar devices, with two ports supporting PSE output for compatible powered devices.

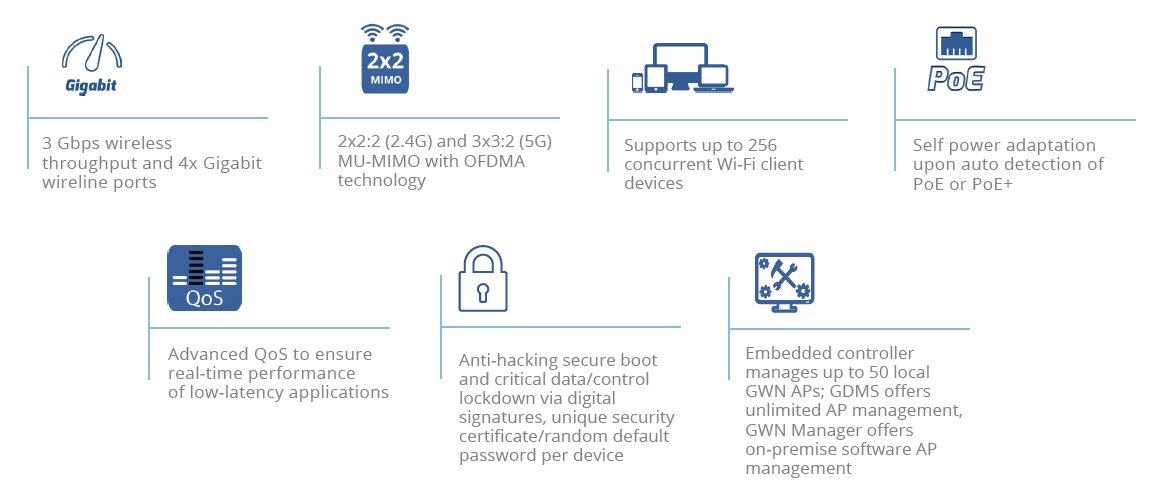

Key Features:

• In-wall AX3000 802.11ax Wi-Fi 6 access point
• 3Gbps wireless throughput with 2x2:2 2.4GHz and 3x3:2 5GHz MU-MIMO and OFDMA technology (MU-MIMO = Multi-User Multiple Input, Multiple Output; OFDMA = Orthogonal Frequency-Division Multiple Access)
• Supports 256 concurrent Wi-Fi client devices and a coverage range of up to 100 metres, subject to environment and installation conditions

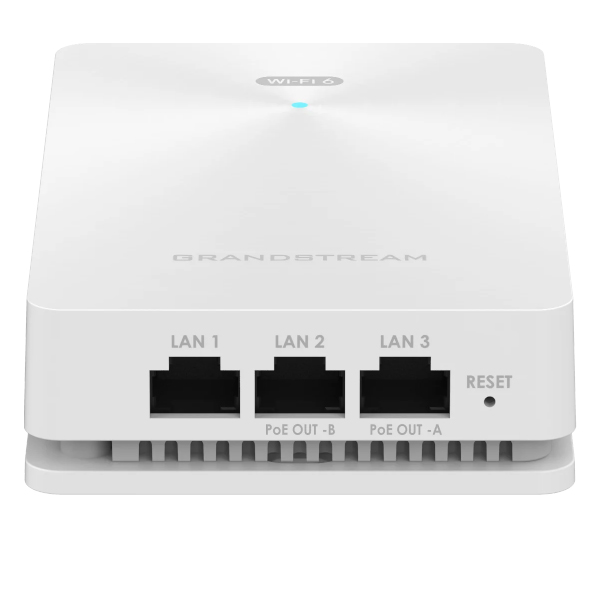

• Four Gigabit wired ports: one PoE/PoE+ uplink, two Gigabit PSE ports and one standard Gigabit Ethernet port (PoE = Power over Ethernet; PSE = Power Sourcing Equipment)
• PSE output supports up to 12W total across both PSE ports for compatible connected devices
• 32 SSIDs in total, with up to 16 per radio across 2.4GHz and 5GHz bands (SSID = Service Set Identifier)
• Advanced QoS, mesh networking, captive portal and WPA3 security support (QoS = Quality of Service)
• Embedded controller can manage up to 50 local GWN access points, with GDMS Networking and GWN Manager also supported

The GWN7661E is well suited to rooms and workspaces where wireless access, wired device connections and tidy installation all matter. It can help provide managed Wi-Fi while also giving nearby devices such as IP phones, TVs, computers or network endpoints a local Ethernet connection.

Key Benefits:

• Combines Wi-Fi 6 coverage and local wired connectivity in one in-wall access point
• AX3000 performance supports modern wireless devices and high-bandwidth applications
• PoE/PoE+ simplifies installation by carrying power and network data through one cable
• PSE ports can help power compatible devices without separate local power supplies
• In-wall design supports a clean, professional finish in hotels, offices, homes and apartments
• Guest access, VLAN and multi-SSID support help separate staff, visitor, voice and device traffic

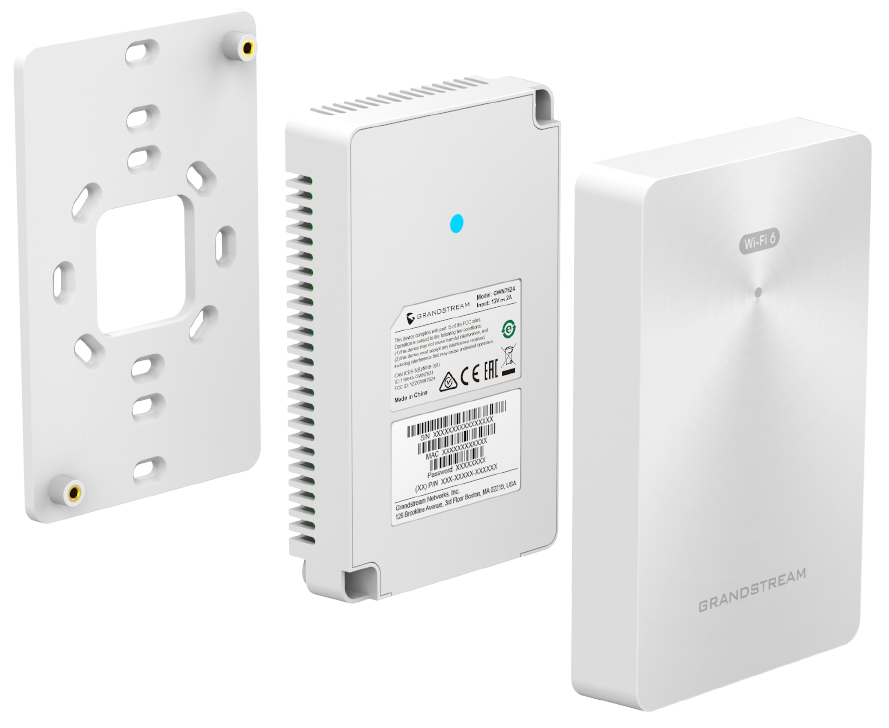

The package includes the GWN7661E Wi-Fi 6 in-wall wireless access point, mounting kits and a Quick Installation Guide.

Comms Express offers a choice of in-wall models in the Grandstream Wireless Access Points range, including:
GWN7624 - in-wall Wi-Fi 5, 2.03Gbps, 4 Gigabit ports, 200 clients
GWN7661 - in-wall Wi-Fi 6, 1.77Gbps, 4 Gigabit ports, 500+ clients
GWN7661E - in-wall Wi-Fi 6, 3Gbps, 4 Gigabit ports, 256 clients
GWN7670WM - in-wall Wi-Fi 7, 3.6Gbps, 2.5GbE, 256 clients

Our broader Wireless Access Points range includes business wireless solutions from Grandstream and many other leading manufacturers.

For wider wireless network installations, Comms Express also offers PoE Switches for Power over Ethernet cabling, and RJ45 Ethernet Cables & Patch Leads for network connections.

*For complete specifications see the documentation tab above
