Grandstream GWN7660LR Long Range WiFi 6 Access Point

Grandstream GWN7660LR Outdoor Wi-Fi 6 Long-Range Access Point with 1.77Gbps Throughput, 250m Coverage and PoE/PoE+

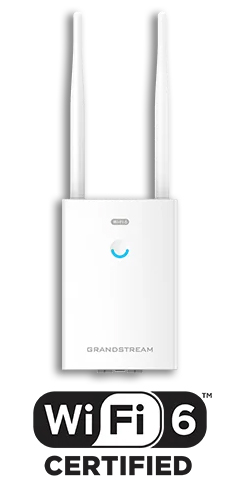

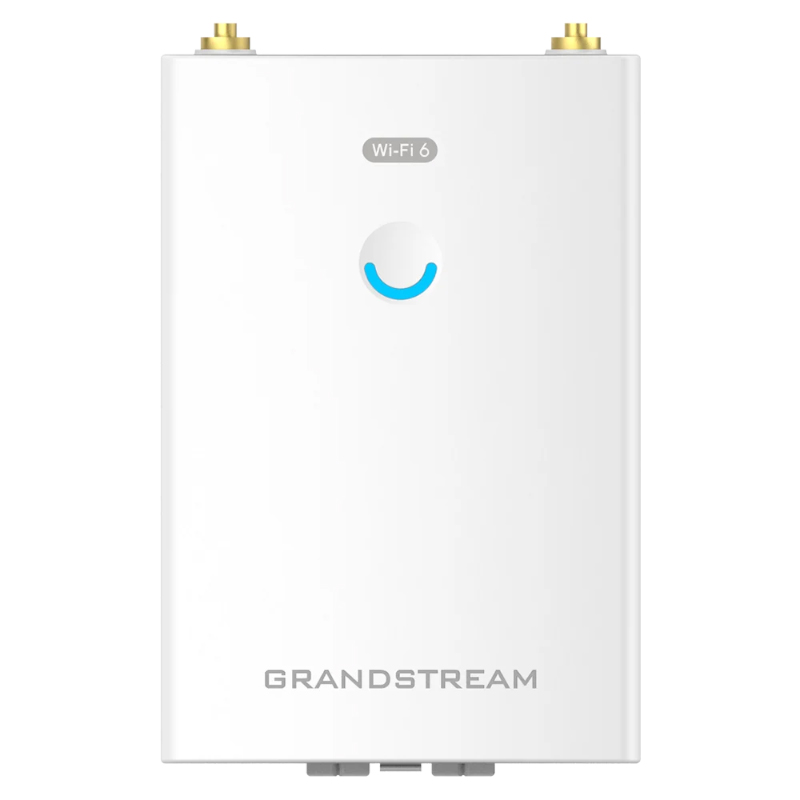

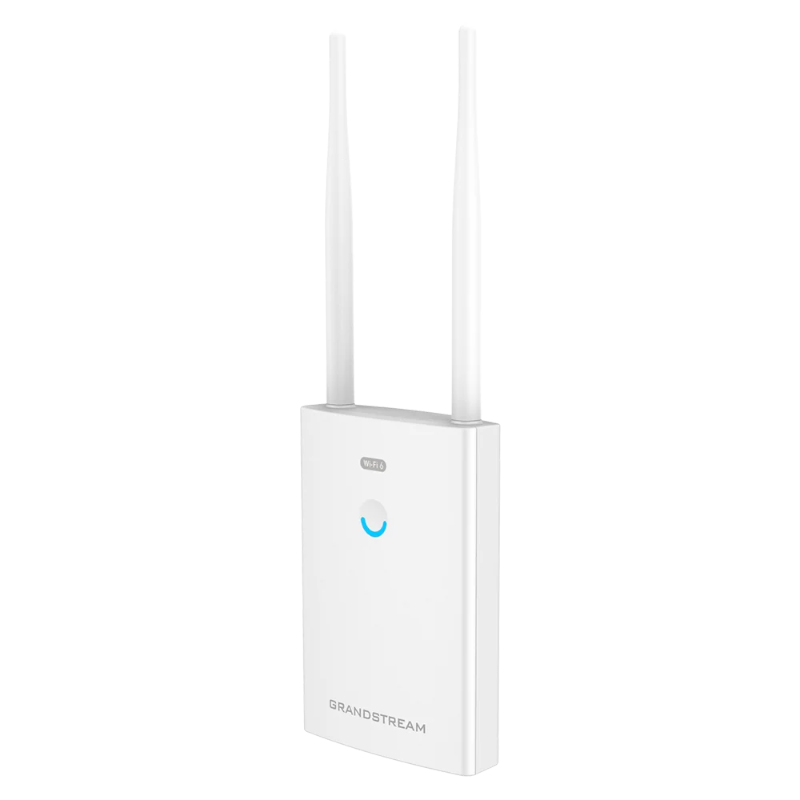

The Grandstream GWN7660LR is a long-range 802.11ax Wi-Fi 6 access point for businesses that need extended wireless coverage in indoor or outdoor environments. It supports 1.77Gbps aggregate wireless throughput, dual-band 2x2:2 MU-MIMO with DL/UL OFDMA, 500+ concurrent Wi-Fi clients and a coverage range of up to 250 metres.

Designed for outdoor deployment, the GWN7660LR combines IP66-level weatherproof capability with two detachable dual-band antennas for flexible installation. Dual Gigabit Ethernet ports provide wired connectivity, while PoE/PoE+ allows power and network data to reach the access point through one Ethernet cable.

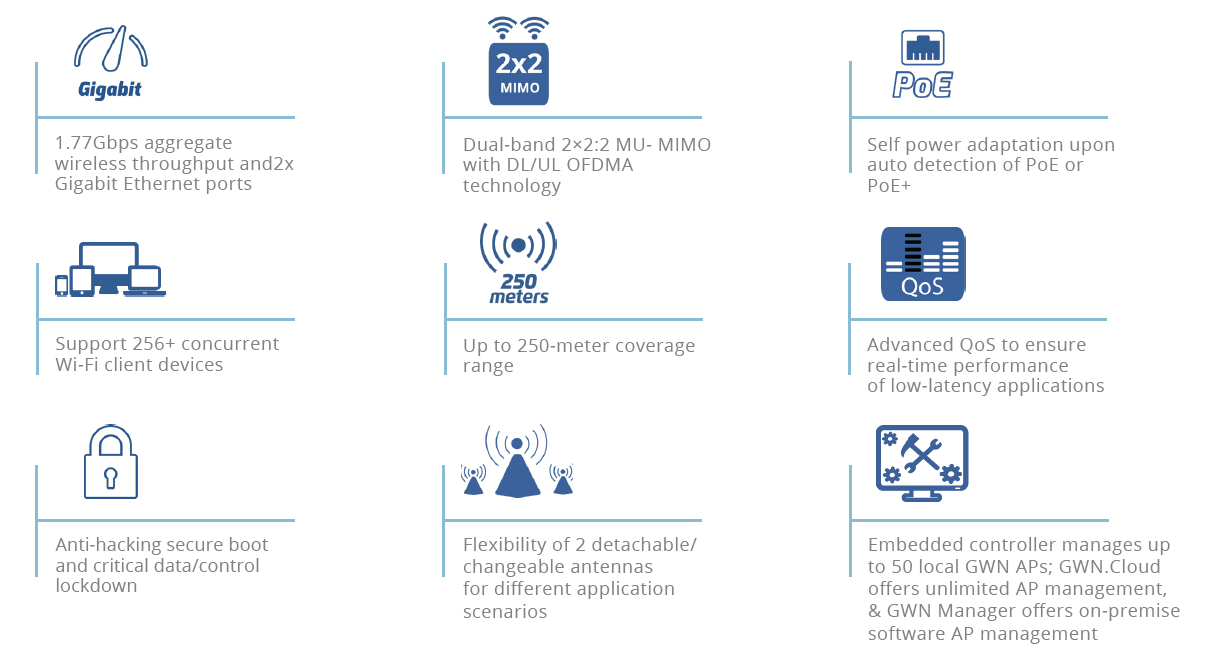

Key Features:

• Outdoor long-range 802.11ax Wi-Fi 6 access point
• 1.77Gbps aggregate wireless throughput with dual-band 2x2:2 MU-MIMO and DL/UL OFDMA (MU-MIMO = Multi-User Multiple Input, Multiple Output; OFDMA = Orthogonal Frequency-Division Multiple Access)
• Supports 500+ concurrent Wi-Fi client devices and a coverage range of up to 250 metres, subject to environment and installation conditions
• IP66-level weatherproof capability when installed vertically
• Two detachable/changeable dual-band antennas for different deployment scenarios
• Dual autosensing 10/100/1000Mbps Gigabit Ethernet ports with PoE/PoE+ support (PoE = Power over Ethernet)
• 32 SSIDs in total, with up to 16 per radio across 2.4GHz and 5GHz bands (SSID = Service Set Identifier)
• Advanced QoS, mesh networking, captive portal and WPA3 security support (QoS = Quality of Service)
• Embedded controller can manage up to 50 local GWN access points, with GDMS Networking and GWN Manager also supported

The GWN7660LR is well suited to extending managed Wi-Fi across outdoor areas, warehouses, schools, healthcare sites, business campuses and mixed indoor/outdoor environments. Wall and pole mounting options help support practical installation where long-range coverage is required.

Key Benefits:

• Long-range Wi-Fi 6 helps extend managed wireless coverage across larger areas
• 500+ client support makes the access point suitable for busy wireless environments
• IP66 protection supports outdoor installation when mounted correctly
• Dual Gigabit Ethernet ports provide flexible wired network connectivity
• PoE/PoE+ simplifies installation by carrying power and network data through one cable
• Guest access, VLAN and multi-SSID support help separate staff, visitor, voice and device traffic

The package includes the GWN7660LR access point with two detachable dual-band antennas, outdoor wall/pole mounting kits and a Quick Installation Guide.

Comms Express offers a choice of models in the Grandstream Wireless Access Points range, including:
GWN7660 - indoor, 1.77Gbps, dual Gigabit Ethernet, 500+ clients

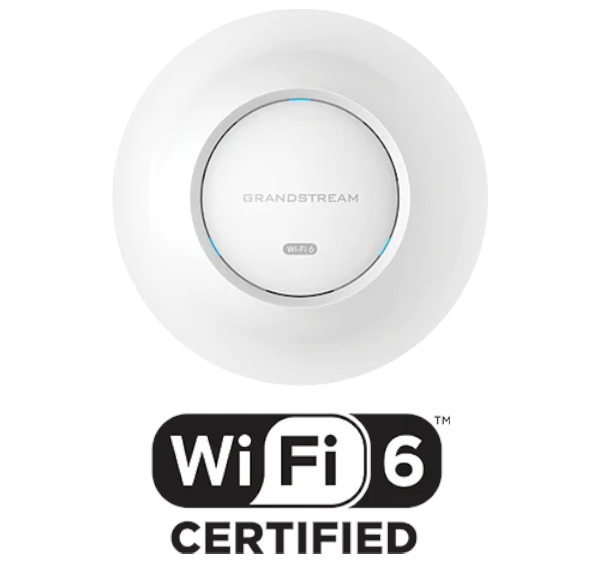

GWN7660E - indoor, 3Gbps, XTRA Range, 256 clients
GWN7660LR - outdoor, 250m range, 500+ clients
GWN7660ELR - outdoor, 3Gbps, 300m range, RJ45/SFP connectivity

Our broader Wireless Access Points range includes business wireless solutions from Grandstream and many other leading manufacturers.

For wider wireless network installations, Comms Express also offers PoE Switches for Power over Ethernet cabling, and RJ45 Ethernet Cables & Patch Leads for network connections.

*For complete specifications see the documentation tab above

For VLAN setup guidance, see Grandstream's GWN76xx Multi-VLAN Configuration Guide
