Grandstream GWN7660ELR WIFI 6 LR ACCESS POINT

Grandstream GWN7660ELR Outdoor AX3000 Wi-Fi 6 Long-Range Access Point with 3Gbps Throughput, IP68 Weatherproofing and RJ45/SFP Connectivity

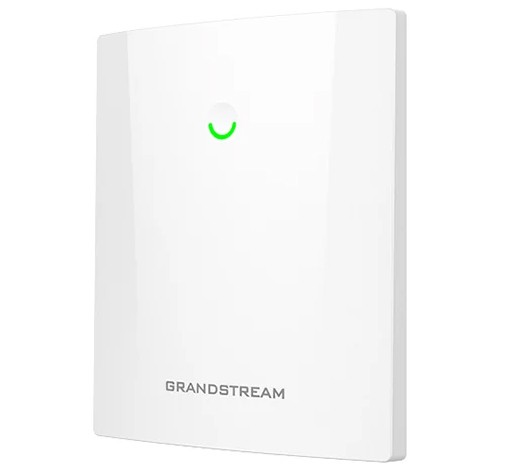

The Grandstream GWN7660ELR is an enterprise-grade outdoor AX3000 Wi-Fi 6 access point for businesses that need long-range wireless coverage in demanding environments. It supports 3Gbps aggregate wireless throughput, dual-band 2x2:2 MIMO with OFDMA, 256 concurrent Wi-Fi clients and a coverage range of up to 300 metres.

Designed for outdoor deployment, the GWN7660ELR combines IP68-level weatherproof and dust-proof protection with operation from -30°C to 60°C. A Gigabit RJ45 port with PoE/PoE+ and a 2.5Gbps SFP port provide flexible wired connectivity, while built-in controller functionality, GDMS Networking and GWN Manager support local, cloud or on-premise management.

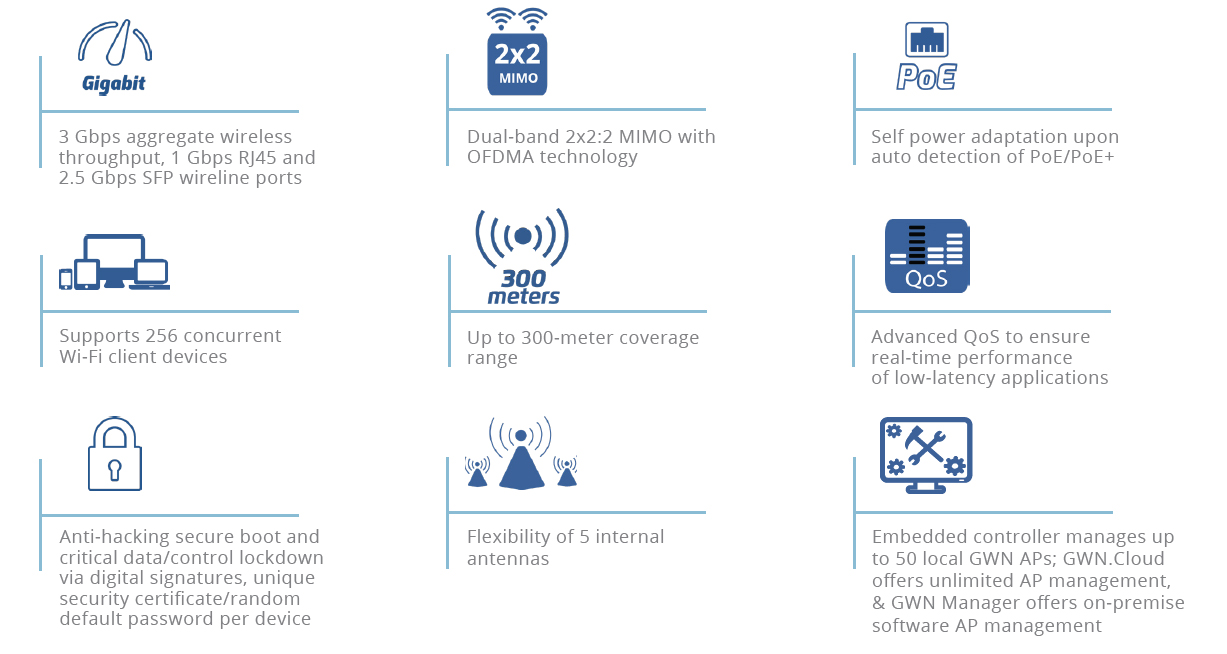

Key Features:

• Outdoor AX3000 802.11ax Wi-Fi 6 long-range access point
• 3Gbps aggregate wireless throughput with dual-band 2x2:2 MIMO and OFDMA technology (OFDMA = Orthogonal Frequency-Division Multiple Access)
• Supports 256 concurrent Wi-Fi client devices and a coverage range of up to 300 metres, subject to environment and installation conditions
• IP68-level weatherproof and dust-proof protection for demanding outdoor environments
• One 1Gbps RJ45 port with PoE/PoE+ and one 2.5Gbps SFP port (PoE = Power over Ethernet)
• 32 SSIDs in total, with up to 16 per radio across 2.4GHz and 5GHz bands (SSID = Service Set Identifier)
• Advanced QoS, mesh networking, captive portal, Bluetooth Low Energy 5.2 and WPA3 security support (QoS = Quality of Service)
• Embedded controller can manage up to 50 local GWN access points, with GDMS Networking and GWN Manager also supported

The GWN7660ELR is well suited to outdoor wireless coverage across warehouses, schools, hospitals, business campuses and larger commercial sites. Its long-range coverage, RJ45/SFP connectivity and wall or pole mounting options help support flexible deployment where indoor access points cannot provide suitable reach.

Key Benefits:

• Long-range Wi-Fi 6 helps extend managed wireless coverage across larger outdoor areas
• IP68 protection and wide operating temperature support demanding weather conditions
• RJ45 and SFP connectivity provide flexible wired uplink options
• PoE/PoE+ simplifies installation by carrying power and network data through one Ethernet cable
• Controller-less, cloud and on-premise management options support both smaller sites and larger managed networks
• Guest access, VLAN and multi-SSID support help separate staff, visitor, voice and device traffic

The package includes the GWN7660ELR access point, mounting kits and a Quick Installation Guide.

Comms Express offers a choice of models in the Grandstream Wireless Access Points range, including:
GWN7660 - indoor, 1.77Gbps, dual Gigabit Ethernet, 500+ clients
GWN7660E - indoor, 3Gbps, XTRA Range, 256 clients
GWN7660LR - outdoor, 250m range, 500+ clients
GWN7660ELR - outdoor, 3Gbps, 300m range, RJ45/SFP connectivity

Our broader Wireless Access Points range includes business wireless solutions from Grandstream and many other leading manufacturers.

For wider wireless network installations, Comms Express also offers PoE Switches for Power over Ethernet cabling, and RJ45 Ethernet Cables & Patch Leads for network connections.

*For complete specifications see the documentation tab above

For VLAN setup guidance, see Grandstream's GWN76xx Multi-VLAN Configuration Guide
