| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FEB020-U16-19-IP |
| Manufacturer No: | B020-U16-19-IP |
| Delivery: | In Stock: 5-7 Days |
 |

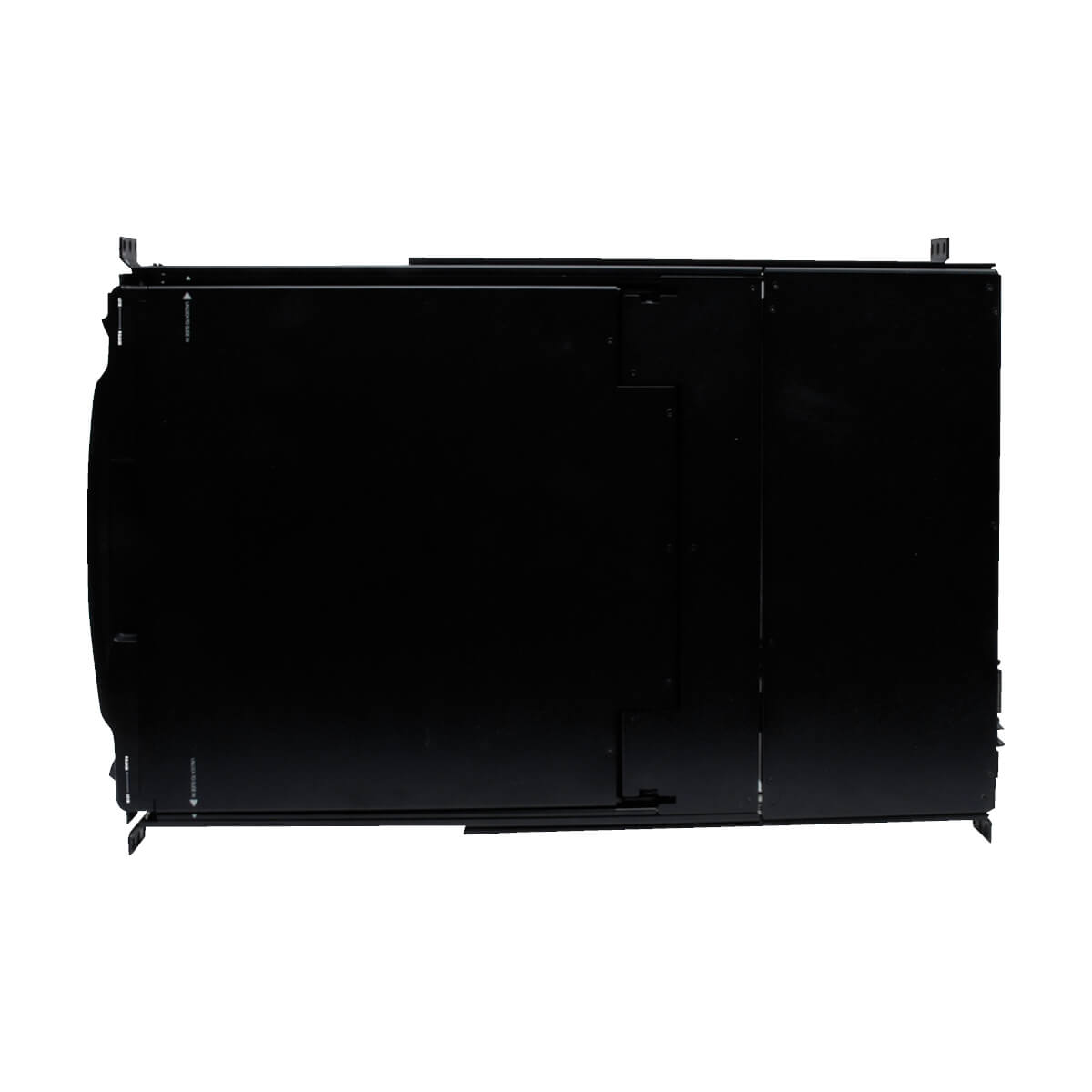

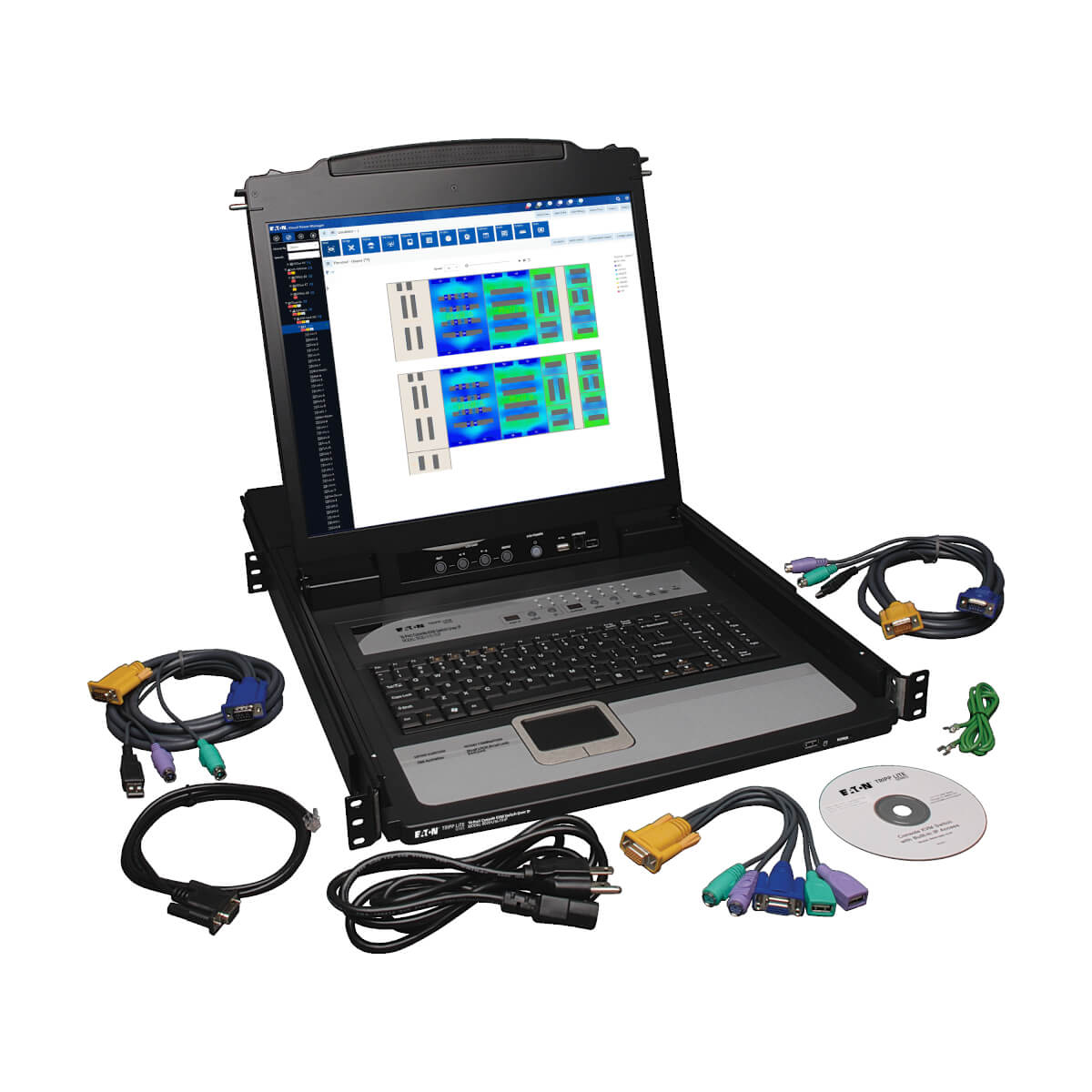

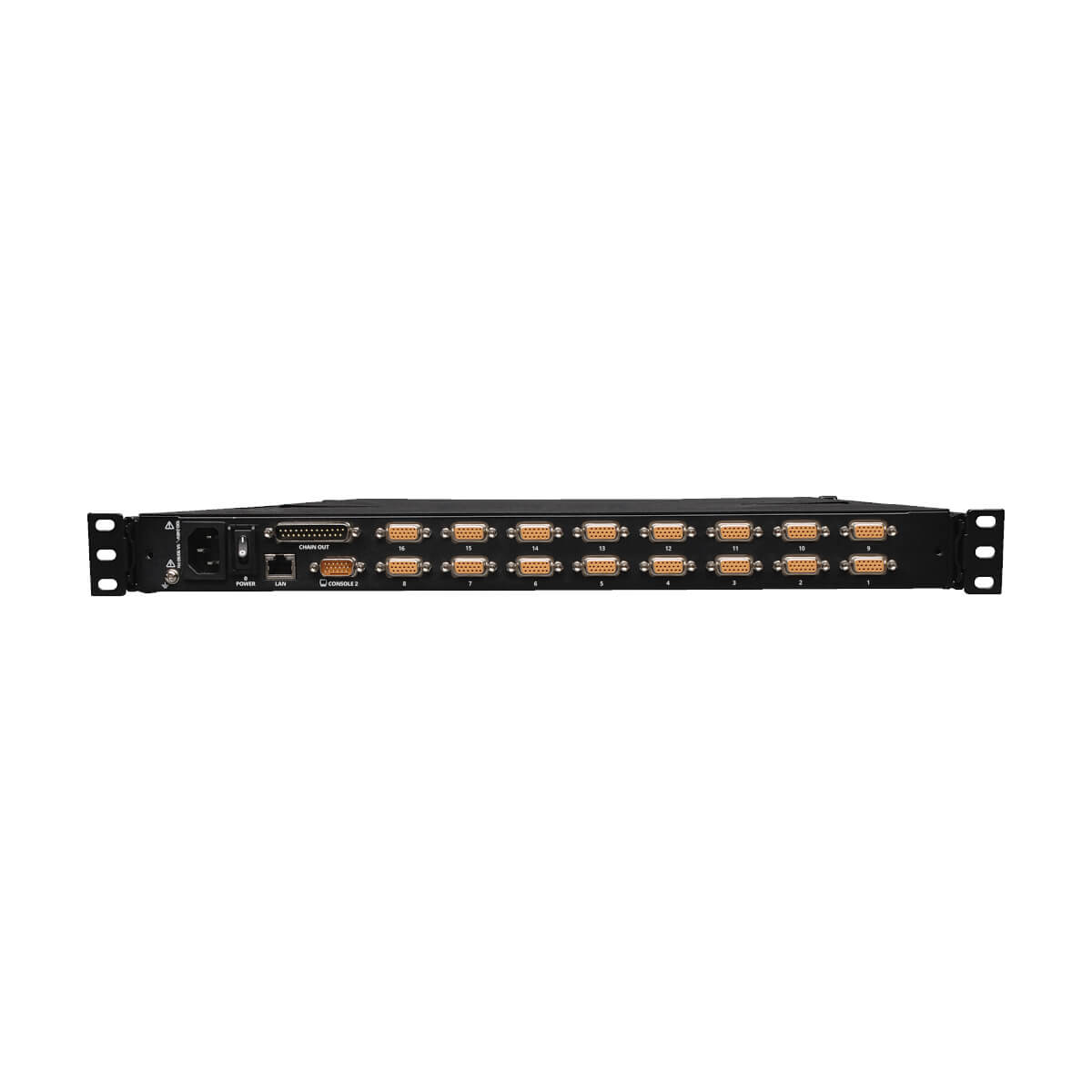

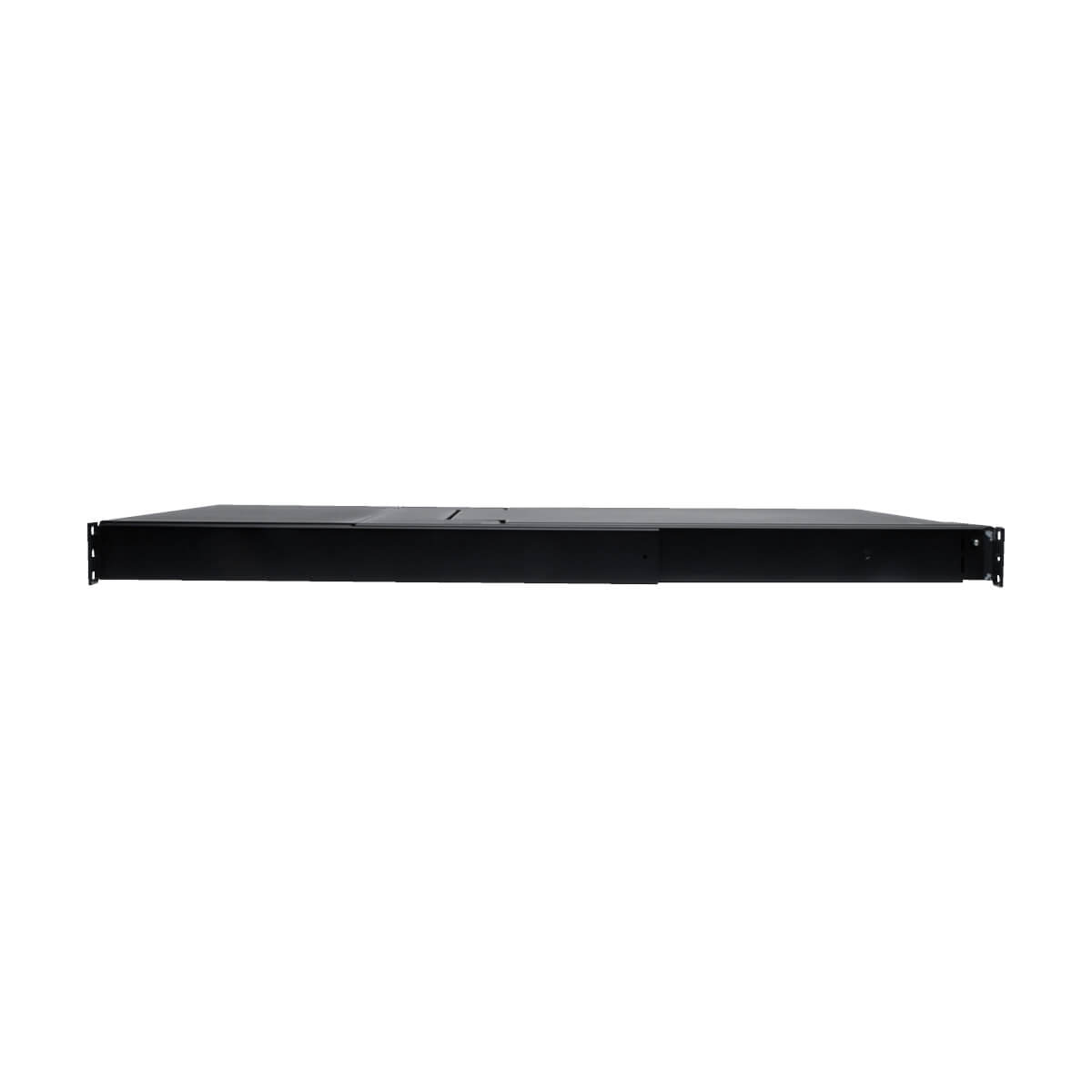

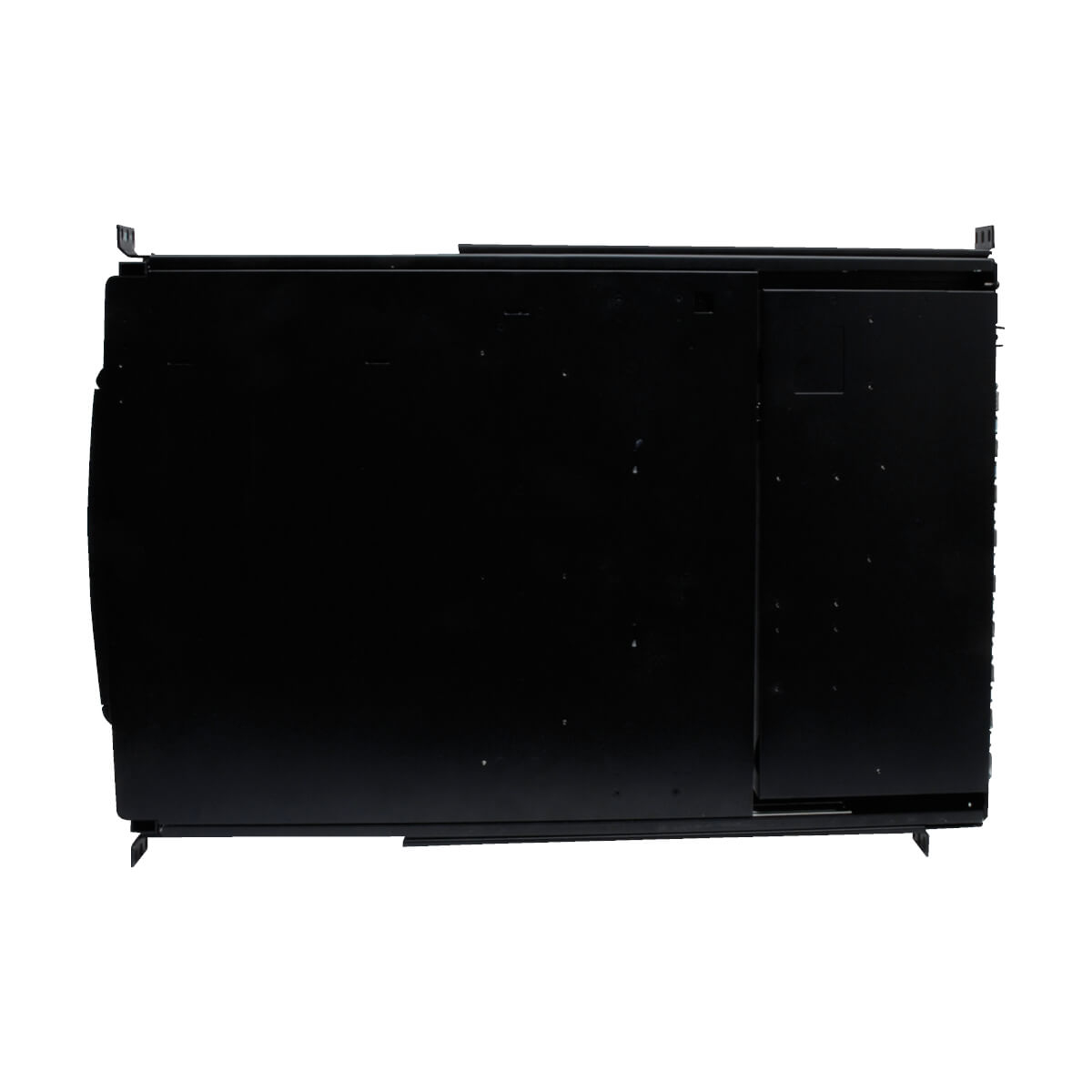

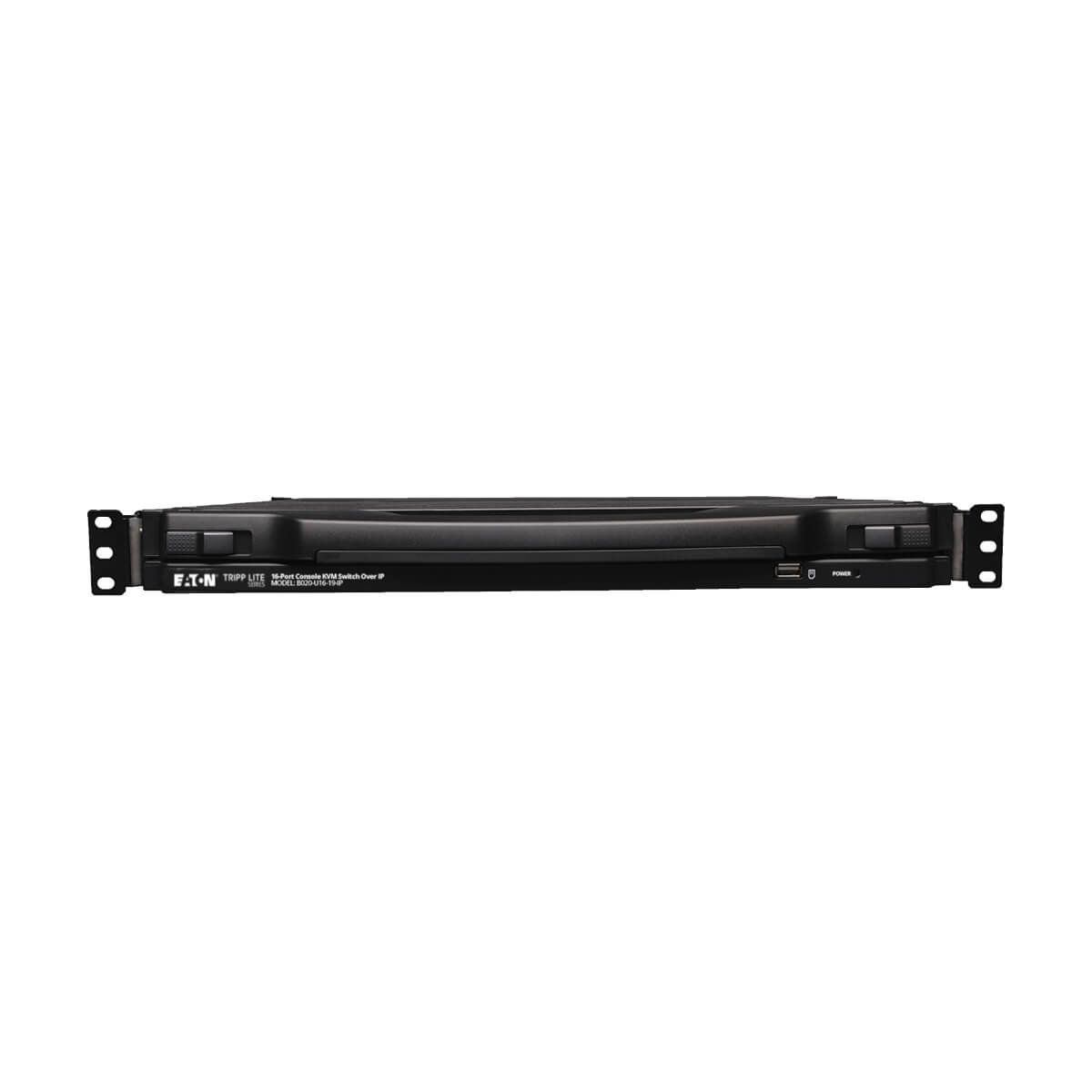

The B020-U16-19-IP NetDirector 16-Port 1U Rack-Mount Console IP KVM Switch combines a 16-port KVM switch, keyboard, touch pad, numeric keypad, 19-inch LCD and built-in IP remote access into a compact housing that stores neatly in 1U of rack space. Ideal for data centers, server rooms and other environments with multiple servers, the B020-U16-19-IP lets you handle complex problems without needing to be on-site, which saves money and time.
You can control up to 16 servers or computers directly from the KVM switch or remotely from anywhere else via LAN, WAN or the Internet, including system administration, BIOS-level troubleshooting, GUI application installations and equipment reboots. Increase the number of connected computers up to 264 by daisy-chaining up to 31 B022-U08 KVM switches. The built-in 19-inch monitor supports VGA video resolution up to 1280 x 1024 (@ 75 Hz). Compatible with both USB and PS/2 connections using the included cable kits, the KVM switch allows you to select a connected computer using console buttons or keyboard hotkeys. It supports IPv4 and IPv6, as well as Link Local IPv6 Address and Stateless Auto Configuration protocol
The B020-U16-19-IP is compatible with all major operating systems and web browsers. Three levels of password protection, as well as advanced encryption and activity logging, keep your confidential data secure. You can create up to 64 user accounts, which can communicate and manage port access through a message board. An external USB port lets you connect a flash drive or card reader to share external data among connected computers.
Complete Control from Anywhere
Built-in IP access lets you control up to 16 computers directly from the next room, next door, or the next continent.
Remotely access computers via LAN, WAN or the Internet via Windows or Java.
Panel Array Mode allows remote monitoring of multiple ports at the same time.
Windows- and Java-based applications provide access without a browser.
Advanced on-screen display supports video resolutions up to 1280 x 1024 (@ 75 Hz) at the built-in 19-inch monitor and up to 1600 x 1200 (@ 60 Hz) at the remote console.
Built-In Security to Keep Your Data Safe
3 levels of security (Admin, User and Select) allow you to delegate proper access.
Create up to 64 separate user accounts.
Features advanced encryption technologies, such as 512-bit RSA, 256-bit AES, 56-bit DES, 168-bit 3DES, 128-bit RC4 and 128-bit SSL.
Supports RADIUS and LDAP/S remote authentication.
LEDs indicate when a computer is connected, powered on and selected.
Included firmware upgrade cable keeps the software up to date.
Versatile to Meet Your Specific Needs
Increase the number of connected computers up to 264 by daisy-chaining up to 31 B020-U08 KVM switches.
Compatible with all major operating systems.
User-friendly web management interface can be displayed in English, Spanish, French, German or Italian.
Included P778-Series cable kits let you use either USB or PS/2 keyboards and mice.
Supports both IPv4 and IPv6, as well as Link Local IPv6 Address and IPv6 Stateless Auto Configuration protocol.
External USB 1.1 port lets you add a flash drive or card reader to share external data among connected computers.
Keep Your Colleagues in the Loop
Windows-based log server records events and saves them to a searchable database.
Users who are logged in simultaneously can communicate via message board and manage port access.
Rack-Mounted Convenience
LCD folds down so the unit mounts into just 1U of rack space.
Mounts in racks from 26 in. to 38 in. deep.
Rugged steel housing and premium connectors built to last.
Console locks into place when not in use to prevent sliding out of the rack.
