| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FEB020-U08-19-K |
| Manufacturer No: | B020-U08-19-K |
| Delivery: | In Stock: 5-7 Days |
 |

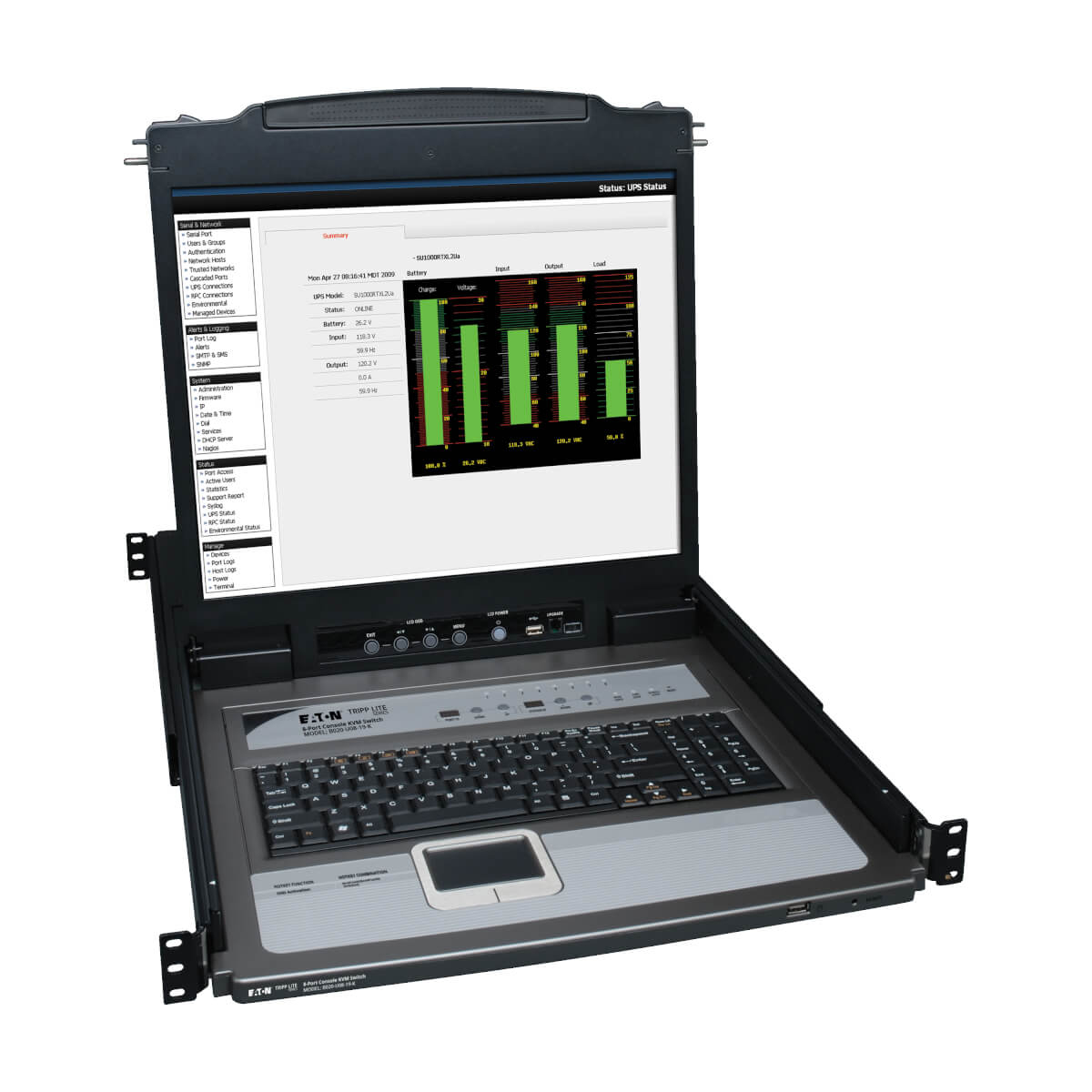

The B020-U08-19-K has a 19" LCD 8-port Console KVM Switch is the best option for managing several PCs with a single keyboard, mouse, and monitor. In just 1U of rack space, this single unit includes a 19" LCD display, touchpad, keyboard, and 8 port KVM switch. Pulls out when needed, neatly stored on the rack. Additional 16 port KVM switches (type B022-U16) can be daisy-chained to this console to control up to 504 PCs. Using the On-Console push buttons, On Screen Display (OSD), or keyboard hot key commands, switching ports is simple. Eight six-foot combo cable kits are included, enabling connectivity to USB or PS/2 servers without the need for adapters.
An additional HD15, two USB, and two PS/2 ports are provided by the console cable kit, which fits into the port on the back of the device and can be used to connect an external console. The front of the device has two USB ports: one for a separate USB mouse and another for USB peripherals that can be shared between linked servers, like an external hard disc or flash drive. All major operating systems are compatible. composed of sturdy steel casing.
Saves Space and Money
Combines an 8-port KVM switch, 19" LCD screen, full keyboard and touchpad in a 1U rack-mountable drawer, mounts into 19"-wide rack, 26"-38" deep, controls up to 8 servers from a single, easily accessible console – ideal when rack space is at a premium and includes eight P778-Series cables that support computers with either PS/2 or USB connections. The flip-up/fold-down screen keeps the console from blocking access to rack equipment when not in use which eliminates need to buy costly separate monitors, keyboards and mice for each computer/server.
Simplifies IT Tasks
Switch easily between the 8 ports via on-console buttons, on-screen display or hot keys; OSD can be set to English, Spanish, French, German or Japanese, Hot pluggable; add or remove computers without having to power down the switch and the auto-scan mode automatically sequences through all active ports that are accessible to the user.
Large 19" LCD
Extra-wide display makes multitasking easier.
Supports video resolutions up to 1280 x 1024.
DDC emulation allows optimal output to the LCD.
Multi-Level Password Security
Enhances security by limiting access to an administrator and up to 4 local users.
Two-level log-out allows for manual log-out or automatic log-out after a user-defined period of time has passed.
Expandability and Long-Lasting Reliability
Increase the number of connected computers up to 256 by daisy-chaining up to 31 B022-U08 KVM switches.
A console cable kit is included so you can connect the external console port to a keyboard, mouse or monitor, or a B051-000 IP Remote Access Unit.
An additional USB port on the front of the unit lets you connect an external USB mouse; a USB port is also available to share a peripheral such as a flash drive or external hard drive with all the connected servers.
Compatible with all major operating systems for easy integration into your existing structure.
Firmware is upgradable with included cable and utility.
Heavy-duty steel housing stands up to frequent use.
The B020-U08-19-K has a 19" LCD 8-port Console KVM Switch is the best option for managing several PCs with a single keyboard, mouse, and monitor. In just 1U of rack space, this single unit includes a 19" LCD display, touchpad, keyboard, and 8 port KVM switch. Pulls out when needed, neatly stored on the rack. Additional 16 port KVM switches (type B022-U16) can be daisy-chained to this console to control up to 504 PCs. Using the On-Console push buttons, On Screen Display (OSD), or keyboard hot key commands, switching ports is simple. Eight six-foot combo cable kits are included, enabling connectivity to USB or PS/2 servers without the need for adapters.
An additional HD15, two USB, and two PS/2 ports are provided by the console cable kit, which fits into the port on the back of the device and can be used to connect an external console. The front of the device has two USB ports: one for a separate USB mouse and another for USB peripherals that can be shared between linked servers, like an external hard disc or flash drive. All major operating systems are compatible. composed of sturdy steel casing.
Saves Space and Money
Combines an 8-port KVM switch, 19" LCD screen, full keyboard and touchpad in a 1U rack-mountable drawer, mounts into 19"-wide rack, 26"-38" deep, controls up to 8 servers from a single, easily accessible console – ideal when rack space is at a premium and includes eight P778-Series cables that support computers with either PS/2 or USB connections. The flip-up/fold-down screen keeps the console from blocking access to rack equipment when not in use which eliminates need to buy costly separate monitors, keyboards and mice for each computer/server.
Simplifies IT Tasks
Switch easily between the 8 ports via on-console buttons, on-screen display or hot keys; OSD can be set to English, Spanish, French, German or Japanese, Hot pluggable; add or remove computers without having to power down the switch and the auto-scan mode automatically sequences through all active ports that are accessible to the user.
Large 19" LCD
Extra-wide display makes multitasking easier.
Supports video resolutions up to 1280 x 1024.
DDC emulation allows optimal output to the LCD.
Multi-Level Password Security
Enhances security by limiting access to an administrator and up to 4 local users.
Two-level log-out allows for manual log-out or automatic log-out after a user-defined period of time has passed.
Expandability and Long-Lasting Reliability
Increase the number of connected computers up to 256 by daisy-chaining up to 31 B022-U08 KVM switches.
A console cable kit is included so you can connect the external console port to a keyboard, mouse or monitor, or a B051-000 IP Remote Access Unit.
An additional USB port on the front of the unit lets you connect an external USB mouse; a USB port is also available to share a peripheral such as a flash drive or external hard drive with all the connected servers.
Compatible with all major operating systems for easy integration into your existing structure.
Firmware is upgradable with included cable and utility.
Heavy-duty steel housing stands up to frequent use.
