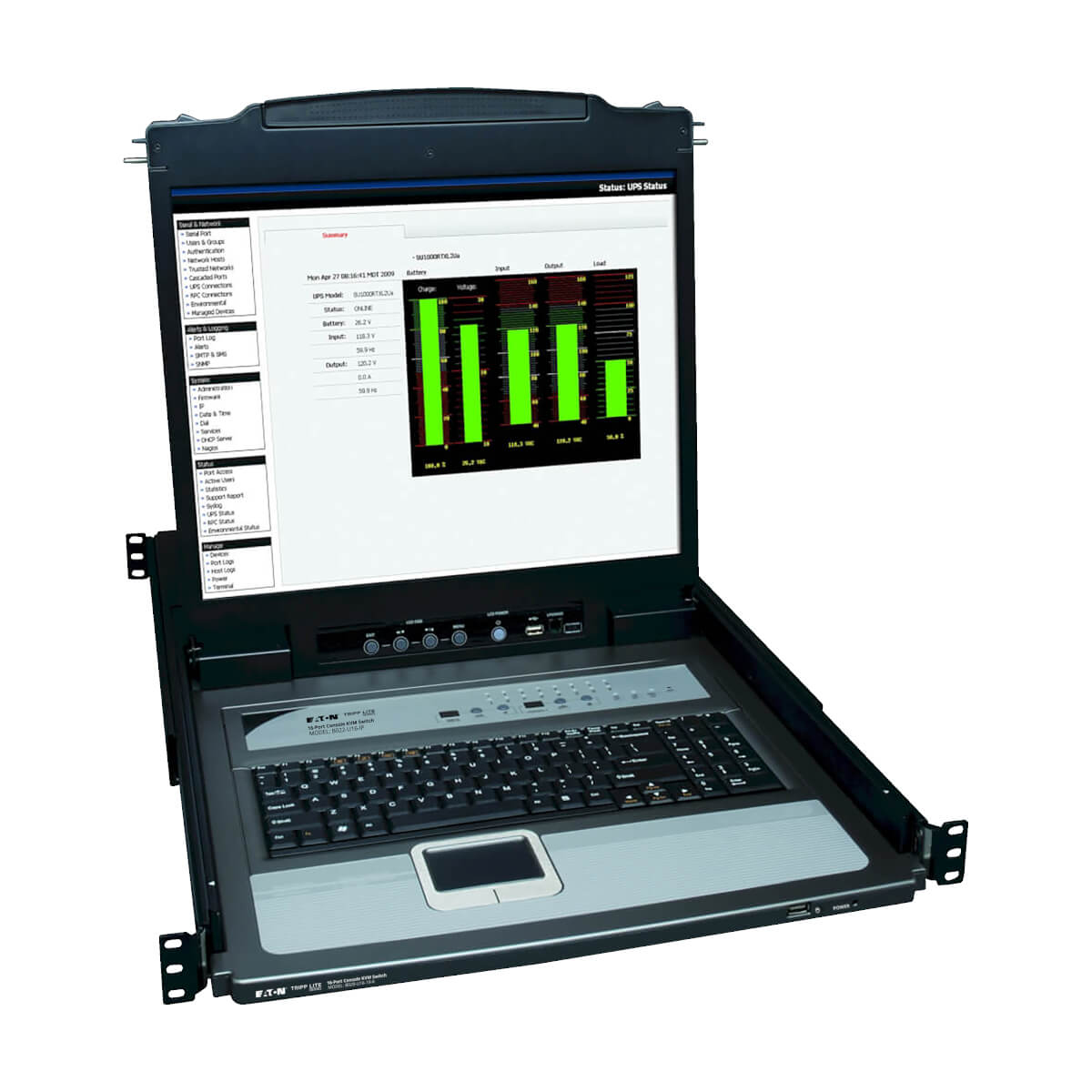

The 16-port Console KVM Switch with 19" LCD is the optimal solution for controlling multiple computers from one keyboard, mouse and monitor. This single unit combines a 16-Port KVM switch, keyboard, 19" LCD monitor and touchpad; all in a mere 1U of rack space. Stores neatly in the rack, pulls out when needed. Control up to 512 computers from this single console by daisy-chaining additional 16 port KVM switches (model B022-U16).
Easily switch ports using the On-Console push buttons, On Screen Display (OSD) or keyboard hot key commands. Includes eight, six foot Combo cable kits, which allow connection to either PS/2 or USB servers...no adapters needed. Includes a console cable kit that plugs into the port on the back of the unit, providing an extra HD15, (2) USB and (2) PS/2 ports that can be used to connect a Tripp Lite B051-000 IP Remote Access Unit or an external console.
Two USB ports are provided on the front of the unit: One for attachment of a separate USB mouse, and the other for attachment of USB peripherals, such as a flash drive, external hard drive, etc. to be shared between connected servers. Compatible with all major operating systems. Constructed of heavy-duty steel housing.
Saves Space and Money
Combines a 16-port KVM switch, 19” LCD screen, full keyboard and touchpad in a 1U rack-mountable drawer.
Mounts into 19”-wide rack, 26”-38” deep.
Gives you control of up to 16 servers from a single, easily accessible console – ideal when rack space is at a premium.
Includes eight P778-Series cables that support computers with either PS/2 or USB connections.
Flip-up/fold-down screen keeps the console from blocking access to rack equipment when not in use.
Eliminates need to buy costly separate monitors, keyboards and mice for each computer/server.
Simplifies IT Tasks
Switch easily between the 16 ports via on-console buttons, on-screen display or hot keys; OSD can be set to English, Spanish, French, German or Japanese. Hot pluggable; add or remove computers without having to power down the switch and has a auto-scan mode automatically sequences through all active ports that are accessible to the user.
Large 19” LCD
Extra-wide display makes multitasking easier, Supports video resolutions up to 1280 x 1024 and the DDC emulation allows the video settings of each computer to be automatically adjusted for optimal output to the LCD.
Multi-Level Password Security
Enhances security by limiting access to an administrator and up to 4 local users.
Two-level log-out allows for manual log-out or automatic log-out after a user-defined period of time has passed.
Future Expandability and Long-Lasting Reliability
Increase the number of connected computers up to 264 by daisy-chaining up to 31 B022-U08 KVM switches.
A console cable kit is included so you can connect the external console port to a keyboard, mouse or monitor, or a B051-000 IP Remote Access Unit.
An additional USB port on the front of the unit lets you connect an external USB mouse; a USB port is also available to share a peripheral such as a flash drive or external hard drive with all the connected servers.
Compatible with all major operating systems for easy integration into your existing structure.
Firmware is upgradable with included cable and utility.
Heavy-duty steel housing stands up to frequent use.
The 16-port Console KVM Switch with 19" LCD is the optimal solution for controlling multiple computers from one keyboard, mouse and monitor. This single unit combines a 16-Port KVM switch, keyboard, 19" LCD monitor and touchpad; all in a mere 1U of rack space. Stores neatly in the rack, pulls out when needed. Control up to 512 computers from this single console by daisy-chaining additional 16 port KVM switches (model B022-U16).
Easily switch ports using the On-Console push buttons, On Screen Display (OSD) or keyboard hot key commands. Includes eight, six foot Combo cable kits, which allow connection to either PS/2 or USB servers...no adapters needed. Includes a console cable kit that plugs into the port on the back of the unit, providing an extra HD15, (2) USB and (2) PS/2 ports that can be used to connect a Tripp Lite B051-000 IP Remote Access Unit or an external console.
Two USB ports are provided on the front of the unit: One for attachment of a separate USB mouse, and the other for attachment of USB peripherals, such as a flash drive, external hard drive, etc. to be shared between connected servers. Compatible with all major operating systems. Constructed of heavy-duty steel housing.
Saves Space and Money
Combines a 16-port KVM switch, 19” LCD screen, full keyboard and touchpad in a 1U rack-mountable drawer.
Mounts into 19”-wide rack, 26”-38” deep.
Gives you control of up to 16 servers from a single, easily accessible console – ideal when rack space is at a premium.
Includes eight P778-Series cables that support computers with either PS/2 or USB connections.
Flip-up/fold-down screen keeps the console from blocking access to rack equipment when not in use.
Eliminates need to buy costly separate monitors, keyboards and mice for each computer/server.
Simplifies IT Tasks
Switch easily between the 16 ports via on-console buttons, on-screen display or hot keys; OSD can be set to English, Spanish, French, German or Japanese. Hot pluggable; add or remove computers without having to power down the switch and has a auto-scan mode automatically sequences through all active ports that are accessible to the user.
Large 19” LCD
Extra-wide display makes multitasking easier, Supports video resolutions up to 1280 x 1024 and the DDC emulation allows the video settings of each computer to be automatically adjusted for optimal output to the LCD.
Multi-Level Password Security
Enhances security by limiting access to an administrator and up to 4 local users.
Two-level log-out allows for manual log-out or automatic log-out after a user-defined period of time has passed.
Future Expandability and Long-Lasting Reliability
Increase the number of connected computers up to 264 by daisy-chaining up to 31 B022-U08 KVM switches.
A console cable kit is included so you can connect the external console port to a keyboard, mouse or monitor, or a B051-000 IP Remote Access Unit.
An additional USB port on the front of the unit lets you connect an external USB mouse; a USB port is also available to share a peripheral such as a flash drive or external hard drive with all the connected servers.
Compatible with all major operating systems for easy integration into your existing structure.
Firmware is upgradable with included cable and utility.
Heavy-duty steel housing stands up to frequent use.
