| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FEB020-U08-19-IP |
| Manufacturer No: | B020-U08-19-IP |
| Delivery: | In Stock: 5-7 Days |
 |
The B020-U08-19-IP KVM Switch combines a touchpad, LCD, and keyboard into a single console that takes up just 1U of rack space. The B020-U08-19-IP is accessible from any computer connected to the LAN, WAN, or Internet. It is an option for managing up to eight PCs or servers and is simple to install and operate. You could also use a daisy-chaining to link up to 31 B022-U08 KVM switches, increasing the total number of PCs to 256.
The integrated 19" LCD screen can display videos with up to 1280 x 1024 @ 75 Hz and remote monitors with up to 1600 x 1200 @ 60 Hz. On-console push buttons, an on-screen display (OSD), or keyboard hot key commands make it simple to swap between the eight ports. With any combination of administrators and users, up to 64 users can be authorised. Data and equipment protection is improved by multi-level security.

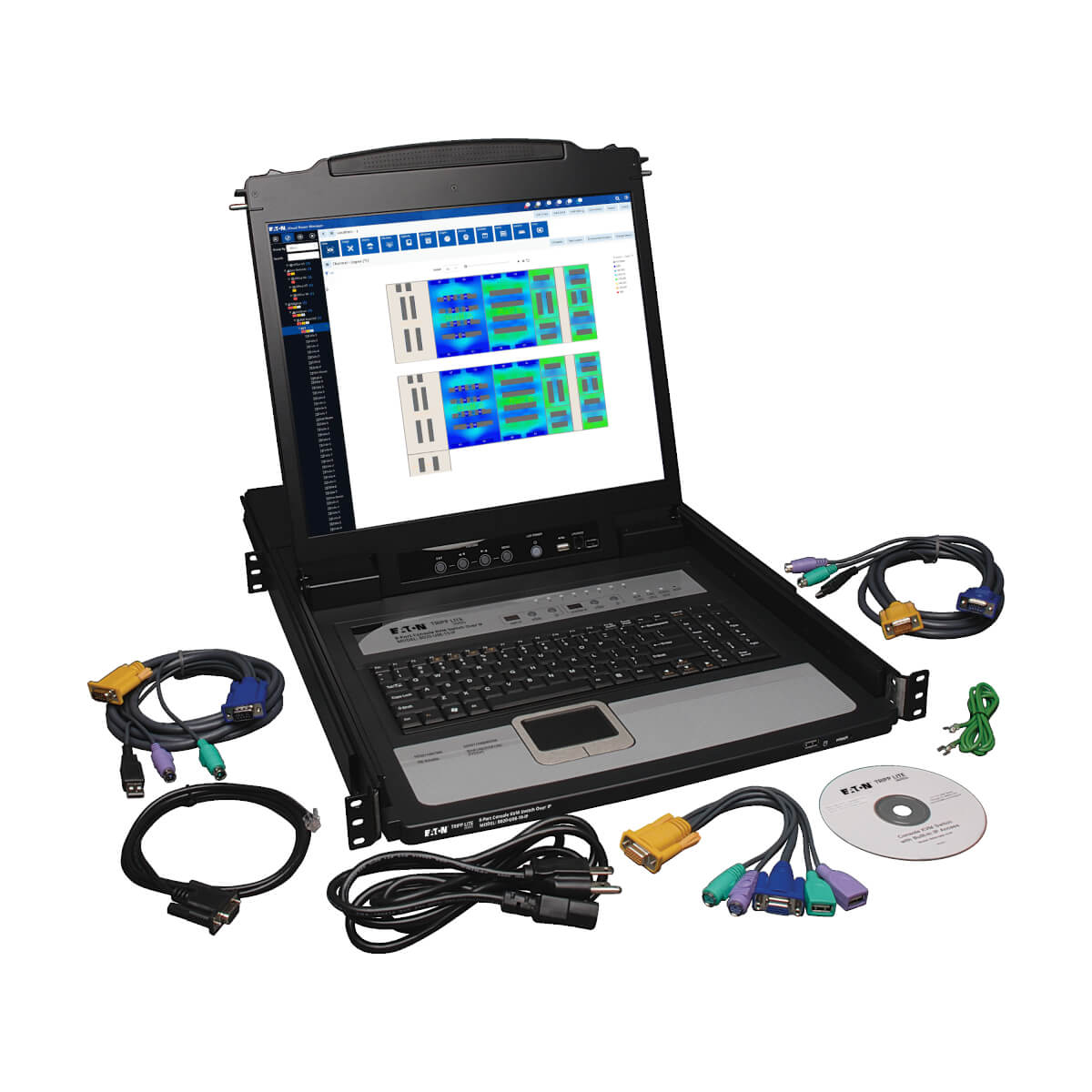

This switch uses a P778-Series Combo KVM Cable Kit (two cable kits are provided) to control PS/2 or USB PCs/servers. You can connect an external mouse and an external USB 1 via a USB connection on the front of the keyboard. You can add a peripheral that is shared by all connected servers if you have one port. The B020-U08-19-IP pulls out as needed and neatly stores in a rack drawer when not in use. All of the main operating systems are compatible with this KVM console. Strong steel construction withstands repeated use.
Saves Space and Money
Combines 8-port KVM switch, 19-in. LCD screen, keyboard and touchpad in a 1U rack-mountable drawer – ideal when rack space is at a premium. Mounts into 19”-wide rack, 26”-38” deep and the flip-up/fold-down screen keeps console from blocking access to rack equipment when not in use.
IP Remote Access for Fewer Trips to the Server Room
Remote access offers convenience of controlling servers from anywhere…no need to travel to the server room or network closet. Supports both IPv4 and IPv6 and network interfaces TCP/IP, HTTP, HTTPS, RADIUS, DHCP, SSL, ARP, DNS, 10Base-T/100Base-TX, Auto Sense and Ping.
Simplifies IT Tasks
Switch easily between the 8 ports via on-console buttons, on-screen display or hot keys; OSD can be set to English, Spanish, French, German or Japanese. The panel array mode lets you monitor multiple ports at same time. It supports RADIUS and LDAP/S authentication, auto-scan mode automatically sequences through all active ports accessible to the user. Includes USB port for an external mouse and a USB 1.1 port for sharing a peripheral across the installation and the log server tracks events on your installation.
Advanced Security Features
Includes password protection and advanced encryption: 512-bit RSA, 256-bit AES, 56-bit DES, 168-bit 3DES, 128-bit RC4 and 128-bit SSL. Allows up to 64 user accounts, with 3 levels of access.
Expandability and Long-Lasting Reliability
Increase the number of connected computers up to 256 by daisy-chaining up to 31 B022-U08 KVM switches.
Compatible with all major operating systems for easy integration into existing structure.
Firmware is upgradable so your software remains up-to-date.
Heavy-duty steel housing stands up to frequent use.
The B020-U08-19-IP KVM Switch combines a touchpad, LCD, and keyboard into a single console that takes up just 1U of rack space. The B020-U08-19-IP is accessible from any computer connected to the LAN, WAN, or Internet. It is an option for managing up to eight PCs or servers and is simple to install and operate. You could also use a daisy-chaining to link up to 31 B022-U08 KVM switches, increasing the total number of PCs to 256.
The integrated 19" LCD screen can display videos with up to 1280 x 1024 @ 75 Hz and remote monitors with up to 1600 x 1200 @ 60 Hz. On-console push buttons, an on-screen display (OSD), or keyboard hot key commands make it simple to swap between the eight ports. With any combination of administrators and users, up to 64 users can be authorised. Data and equipment protection is improved by multi-level security.
This switch uses a P778-Series Combo KVM Cable Kit (two cable kits are provided) to control PS/2 or USB PCs/servers. You can connect an external mouse and an external USB 1 via a USB connection on the front of the keyboard. You can add a peripheral that is shared by all connected servers if you have one port. The B020-U08-19-IP pulls out as needed and neatly stores in a rack drawer when not in use. All of the main operating systems are compatible with this KVM console. Strong steel construction withstands repeated use.
Saves Space and Money
Combines 8-port KVM switch, 19-in. LCD screen, keyboard and touchpad in a 1U rack-mountable drawer – ideal when rack space is at a premium. Mounts into 19”-wide rack, 26”-38” deep and the flip-up/fold-down screen keeps console from blocking access to rack equipment when not in use.
IP Remote Access for Fewer Trips to the Server Room
Remote access offers convenience of controlling servers from anywhere…no need to travel to the server room or network closet. Supports both IPv4 and IPv6 and network interfaces TCP/IP, HTTP, HTTPS, RADIUS, DHCP, SSL, ARP, DNS, 10Base-T/100Base-TX, Auto Sense and Ping.
Simplifies IT Tasks
Switch easily between the 8 ports via on-console buttons, on-screen display or hot keys; OSD can be set to English, Spanish, French, German or Japanese. The panel array mode lets you monitor multiple ports at same time. It supports RADIUS and LDAP/S authentication, auto-scan mode automatically sequences through all active ports accessible to the user. Includes USB port for an external mouse and a USB 1.1 port for sharing a peripheral across the installation and the log server tracks events on your installation.
Advanced Security Features
Includes password protection and advanced encryption: 512-bit RSA, 256-bit AES, 56-bit DES, 168-bit 3DES, 128-bit RC4 and 128-bit SSL. Allows up to 64 user accounts, with 3 levels of access.
Expandability and Long-Lasting Reliability
Increase the number of connected computers up to 256 by daisy-chaining up to 31 B022-U08 KVM switches.
Compatible with all major operating systems for easy integration into existing structure.
Firmware is upgradable so your software remains up-to-date.
Heavy-duty steel housing stands up to frequent use.
Product data is provided by Icecat, we do not warrant the accuracy of the material above.
