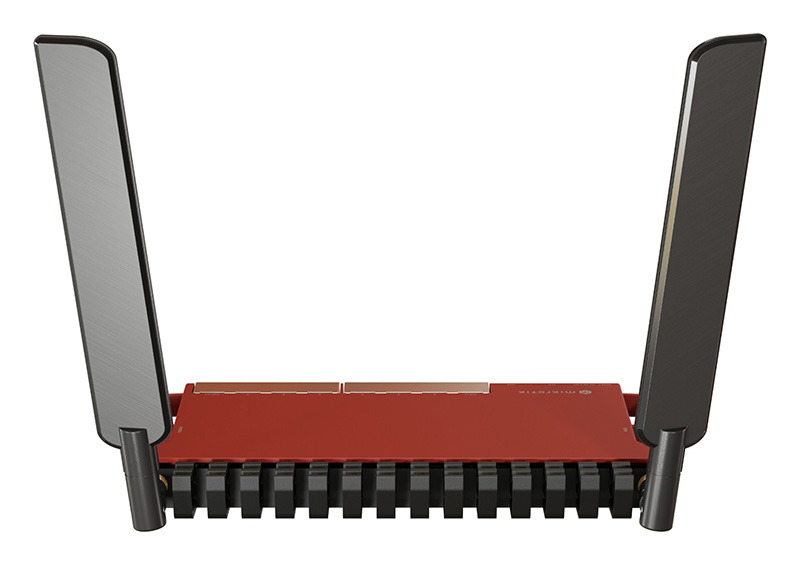

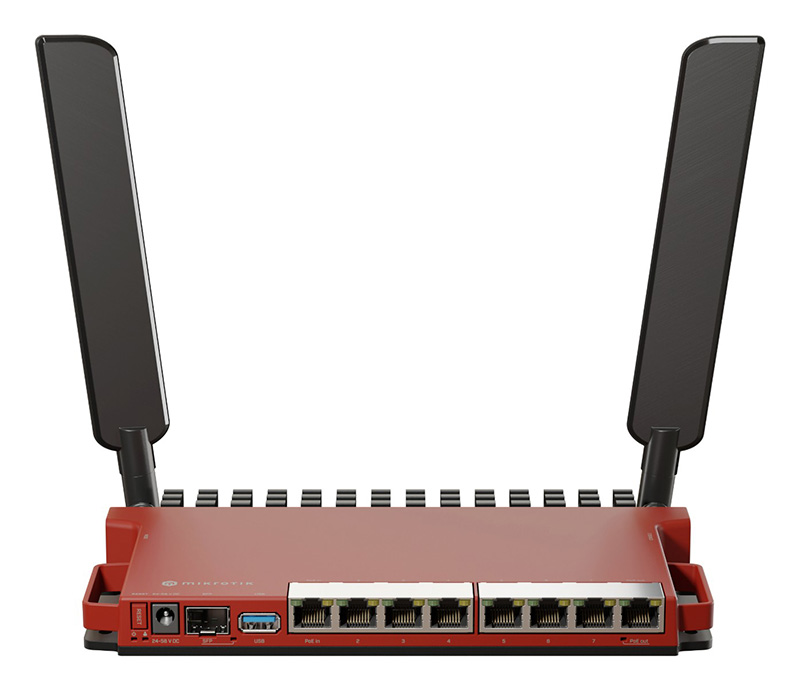

MikroTik L009UIGS-2HAXD-IN 8-Port PoE WiFi 6 Router

The MikroTik L009UIGS-2HAXD-IN is a high-performance 8-Port PoE WiFi 6 router, combining advanced technology for enhanced wireless connectivity. With eight PoE ports, it streamlines device deployment, ensuring optimal performance through dual-band connectivity and robust security features.

Features

• Raw Power and Performance: L009 features a powerful dual-core ARM CPU, providing substantial improvements in routing, filtering, firewall rules, IPsec hardware encryption, and advanced RouterOS features. Modern ARM CPU architecture offers advantages over older MIPS-based devices, enabling the use of the latest Linux Kernel features and the implementation of custom container projects. Up to 4 times faster than RB2011 in most scenarios, with IPsec hardware encryption ensuring lower CPU usage without performance degradation. Expect 60-90 Mbps throughput using a 1400-byte packet size.
• Connectivity and Ports: All ports are now Gigabit Ethernet ports, with PoE-In on the first port for powering the unit and PoE-Out on the last port for powering other devices. SFP cage supports both Gigabit and 2.5 Gigabit connectivity, offering versatility and compatibility with higher-speed MikroTik SFP modules and cables. Speedy Marvell Peridot Switchchip provides an impressive 2.5 Gigabit full duplex connection to the CPU, minimizing bottlenecks.
• Wireless Connectivity: 2.4 GHz dual-chain wireless connectivity, based on the Generation 6 or the ax standard, offers up to 90% higher speed in the 2.4 GHz spectrum. Improved signal stability allows the router to handle more clients with better responsiveness.
• Innovative Enclosure: The new enclosure, similar to the RB5009 devices, acts as a massive heat sink, preventing overheating and ensuring reliability. Accessories enable the fitting of up to four routers in a single 1U rackmount space, providing efficient space management.
• Space-Efficient Rackmount Configuration: MikroTik suggests a space-saving configuration: Combine an RB5009 with PoE-Out ports and seven L009 routers in just two 1U rackmount spaces for efficient space management and reliable powering. A cost-effective alternative is the L009UiGS-RM, lacking 2.4 GHz wireless but retaining all other features and mounting accessories.

Specifications

• Processing Power: ARM CPU, IPQ-5018, 2 cores, 800 MHz
• Memory and Storage: 512 MB RAM, 128 MB NAND Storage
• Wireless Connectivity: 574 Mbit/s 2.4 GHz, 802.11b/g/n/ax, AX600
• Wired Networking: 8 Ethernet Ports (10/100/1000), 1 PoE-Out Port (1G)
• Power and Consumption: 2 DC Inputs (DC jack, PoE-IN), 24-56 V Input Voltage, 47 W Max Power Consumption
• Power over Ethernet (PoE): Ether8 PoE-Out Ports, 1.0 A Max Total Output
• Certifications and Approvals: CE, FCC, IC, EAC, ROHS; IP 20
• Operating System: RouterOS v7
• Fiber Connectivity: 1 SFP Port (2.5G supported)
• Peripherals: RJ45 Serial Console Port, 1 USB Port (USB 3.0 Type A)

*For complete specifications see the documentation tab above.
