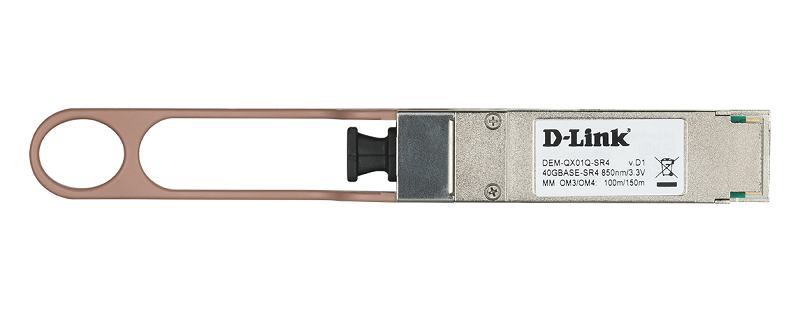

40GBase-SR4 QSFP+ Multi-mode Transceiver, 100 m / 150 m
D-Link’s 40G QSFP+ Module series are hot-swappable QSFP+ transceivers that plug into QSFP+ slots on switches and support 40G Ethernet. The D-Link 40GBASE QSFP+ Module Series transceivers offer customers a wide variety of 40G Ethernet connectivity options for data centres, enterprise wiring closets, and service provider transport applications.
Support for 40G Ethernet provides the network transmission speed that business environments demand.
Support for maximum cable lengths of between 100 metres and 10 kilometres 1 is ideal for businesses spanning multiple premise.
Easily switch out transceivers while the power is on, facilitating network maintenance and minimising downtime.
The transceivers use the Quad Small Form-factor Pluggable Plus format (QSFP+) connectors, which integrate four transmitting and four receiving channels. QSFP+ supports up to 10.5 Gb/s per channel for applications such as 40G Ethernet.
All D-Link transceivers are hot-pluggable. You can connect a transceiver while the system is powered on without causing any problems. This permits modules to be added or removed without interrupting the network.
The transceivers all support 40G Ethernet, which results in very fast data transmissions of up to 40 Gbit/s. This is 40 times faster than Gigabit Ethernet and enables the switch to handle faster and higher data transmissions, making it very suitable for business needs.
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | MPO |
| Networking standards | IEEE 802.3ba |
| Maximum data transfer rate | 40000 Mbit/s |
| Interface type | QSFP+ |
| Performance | |
| Product colour | Beige, Silver |
| SFP transceiver type | Fiber optic |
| Maximum transfer distance | 150 m |
| Weight & Dimensions | |
| Width | 18.4 mm |
| Depth | 115.8 mm |
| Height | 13.3 mm |
| Weight | 40 g |
Full specification and details can be found in the PDF file
