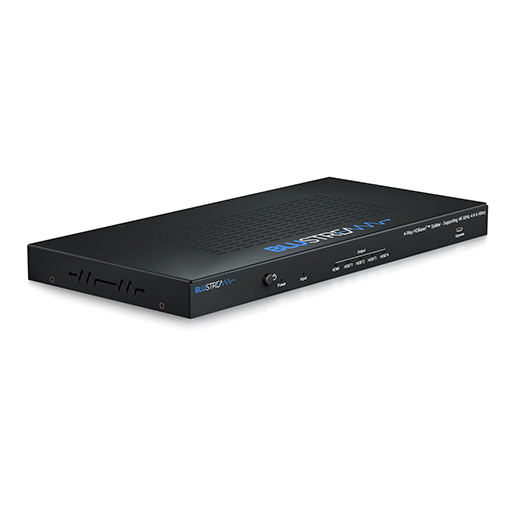

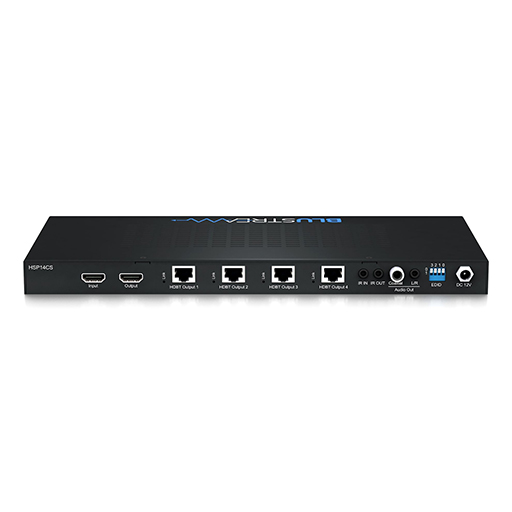

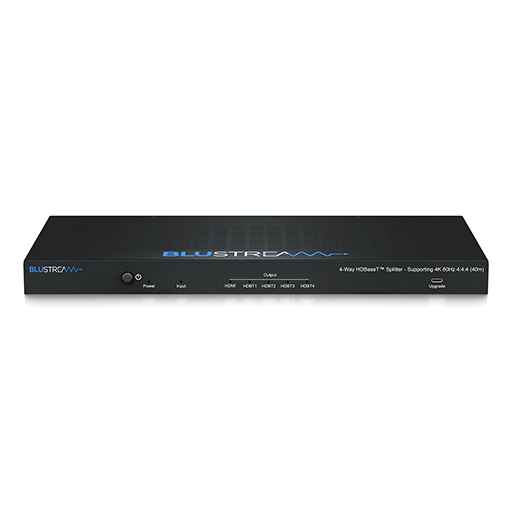

Blustream HSP14CS 4-Way HDBaseT™ CSC Splitter

The Blustream HSP14CS 4-Way HDBaseT™ CSC Splitter distributes a single HDMI 2.0 4K 60Hz 4:4:4 source to four simultaneous HDBaseT™ outputs with independent down-scaling of 4K video inputs to allow those displays only capable of supporting lower video resolutions to receive 4K video while still showing maximum original 4K UHD resolution on the higher-definition displays.

It transmits HDMI, Bi-directional IR and PoC (Power over Cable) up to lengths of 70m (40m 4K 60Hz 4:4:4) over a single CAT cable. The 4-Way splitter also features audio breakout, EDID management and HDMI loop out for integrating local displays or cascading to multiple devices.

Key Features of BlueStream

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
• 1 x HDMI input replicated to 4 x HDBaseT™ outputs
• 1 x HDMI loop out for integrating local displays or cascading to multiple devices
• Supports 4K 60Hz 4:4:4 UHD video up to 40m
• Independent down-scaling of video input resolutions up to 4K 60Hz 4:4:4 to:
  • 1080p 60Hz (for screens that do not support 4K)
  • 4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)
• Extends HDMI 1080p up to a distance of 70m over single CAT cable
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• HDMI audio breakout to both analogue L/R audio and coaxial digital outputs concurrently
• Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers
• Compatible with the following Blustream HDBaseT™ receivers:
  • HEX70CS-RX (recommended for resolutions up to 4K 60Hz 4:4:4)
  • HEX70SL-RX (system limited to 4K 60Hz 4:2:0 8-bit maximum)
• HDCP 2.2 support

Flexible Distribution

The HSP14CS allows high-quality video and audio to be delivered to multiple displays while maintaining signal integrity, adapting to the capabilities of each screen with down-scaling and colour space conversion.

Professional Integration

Compact yet versatile, the splitter is suitable for classrooms, conference rooms, retail environments, or any installation requiring multiple displays from a single HDMI source, with reliable control and signal management.
