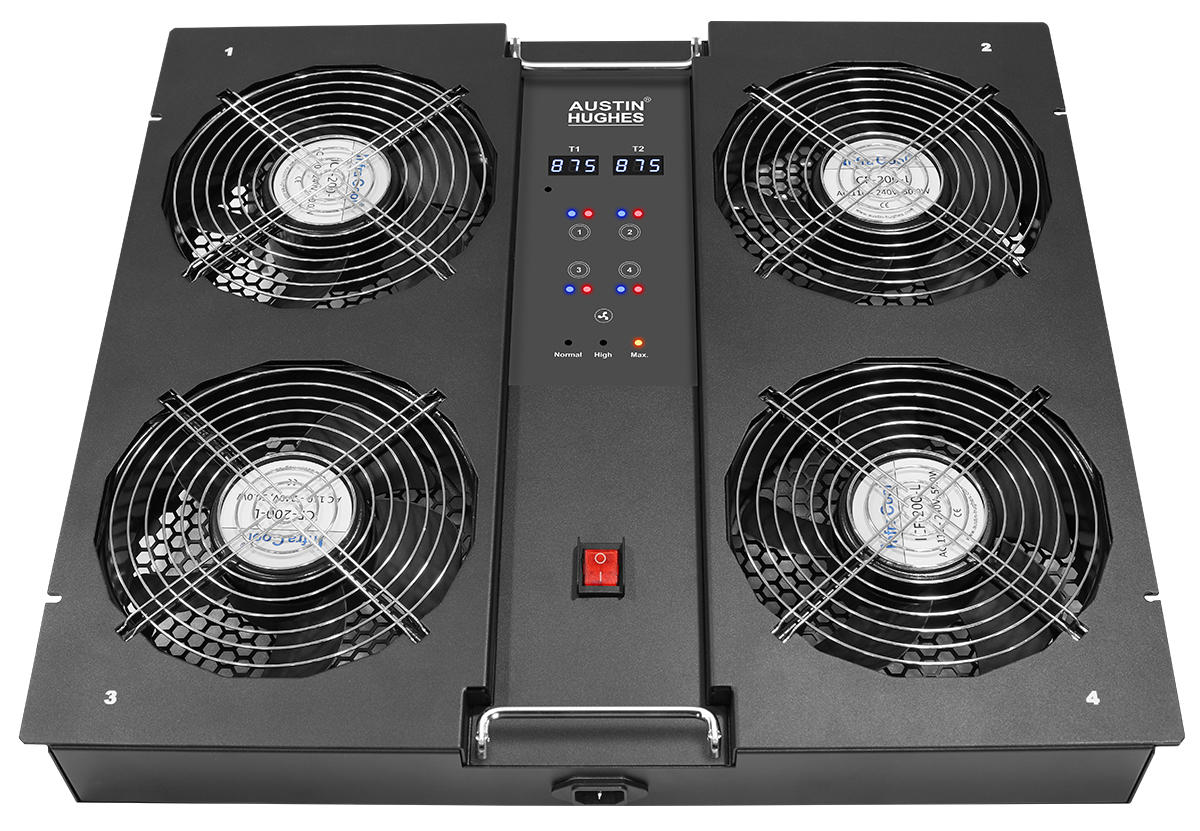

The WF-66.4 is an intelligent raised floor mount fan unit designed to deliver cool air directly from the rack bottom. Equipped with four high-efficiency EC fans, it enhances aisle containment performance while reducing thermal hot spots in high-density server rack environments. The unit supports both local and remote control, enabling precise airflow management and improved cooling efficiency.
The WF-66.4 providins CFM up to 2100 and unit MTBF up to 50,000 hours. It not only maximizes CRAC** efficiency, but also saves energy costs. The well-designed mounting kit offers user a quick and easy installation into a new project deployment or retrofit. Install on 600 x 600mm raised floor and no rack movement is required.
High-Performance Cooling Design
The WF-66.4 integrates four premium EC fans capable of delivering over 2100 CFM of airflow. By channeling cool air from the underfloor plenum directly into the contained aisle, the unit effectively mitigates hot spots and supports stable operating conditions for high-density racks.
Intelligent Monitoring and Control
This fan unit supports both local and web-based management, allowing administrators to monitor temperature, control fan speed, and manage fan operation remotely. Individual fan control and real-time status reporting provide granular visibility and operational flexibility.
Optimized Energy Efficiency
By improving airflow distribution and maximizing CRAC efficiency, the WF-66.4 helps reduce overall energy consumption. Intelligent fan control ensures airflow output matches real-time cooling demand, minimizing unnecessary power usage.
Flexible Installation and Deployment
Designed for 600 x 600 mm raised floor environments, the WF-66.4 installs directly into the floor without requiring rack relocation. The mounting kit supports both new deployments and retrofit projects, enabling fast and straightforward installation.
Technical Overview
The WF-66.4 supports local and remote temperature monitoring, manual and automatic fan speed control, and both unit-level and individual fan ON/OFF functionality. With a rated MTBF of 50,000 hours and compliance with major international standards, it is built for long-term, reliable operation in data center environments.
Key Features:
Comms Express are proud to be a UK Austin Hughes Distribution Partner.
So we're best placed to help you with sales & technical support for their excellent range of products.
*For complete specifications see the documentation tab above
