| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
No.Fans: |
| Part No: | AH-AH-IC-F1.3 |
| Manufacturer No: | AH-IC-F1.3 |
| Delivery: | In Stock: 2-3 Weeks |
 |

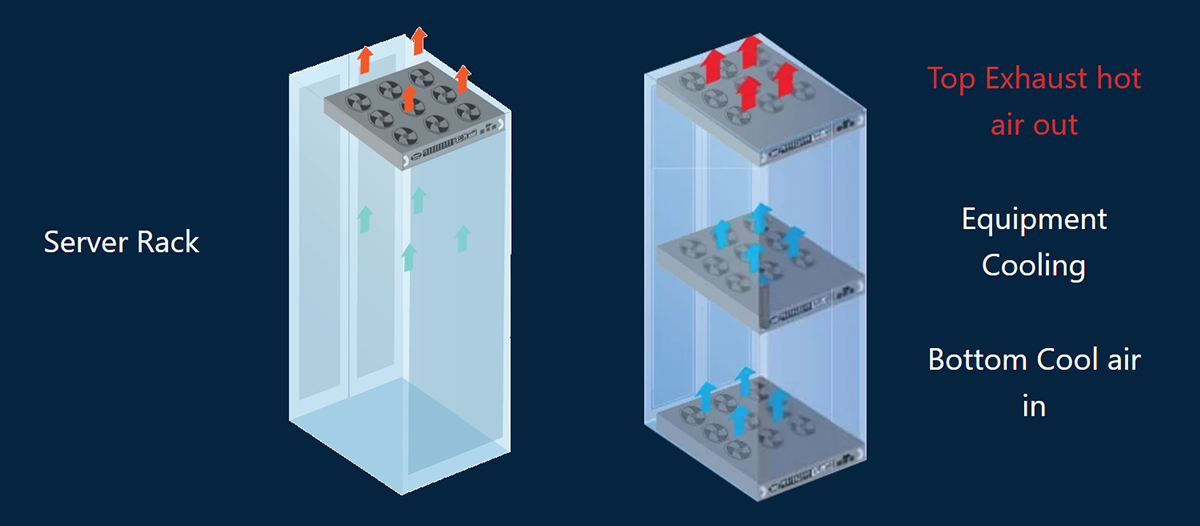

The Austin Huges InfraCool Basic 1U rack mount Fan Tray provides a reliable airflow solution which can be mounted at the top of a rack to extract hot air, in the middle to assist with equipment cooling, or at the bottom to pull-in cool air. This flexibility allows it to adapt to a wide range of rack layouts and airflow strategies.
With today's high density heat loads inside server racks, cooling should be an integral part of the rack equipment. InfraCool® Basic Fan Unit series is designed as a cost effective but reliable airflow solution.

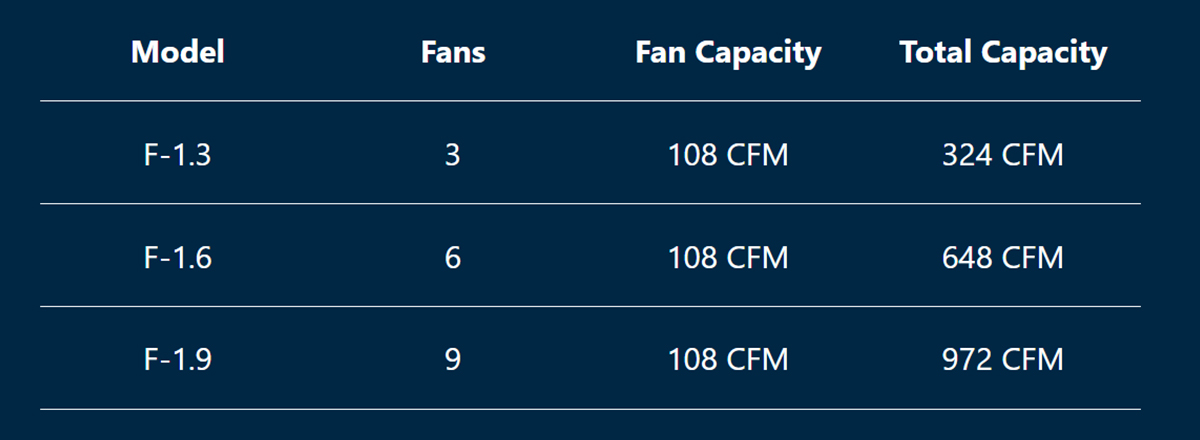

Each individual fan is rated at 108 CFM, so the F1.3 delivers 324 CFM, the F1.6 delivers 648 CFM and the F1.9 delivers 972 CFM. This makes these 1U fan trays suitable for addressing localized heat buildup in server and network racks. * CFM = Cubic Feet per Minute

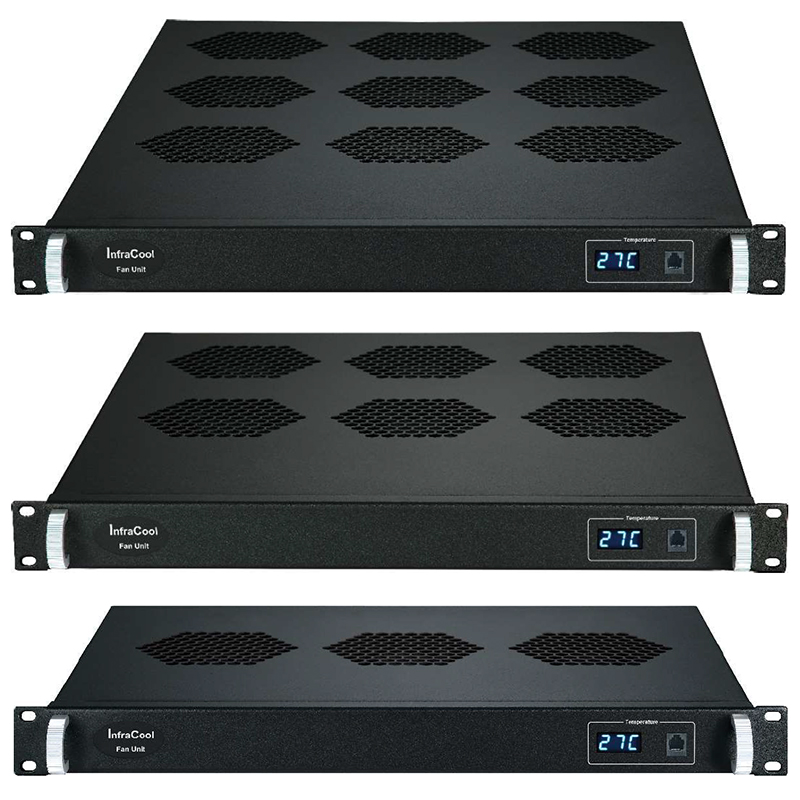

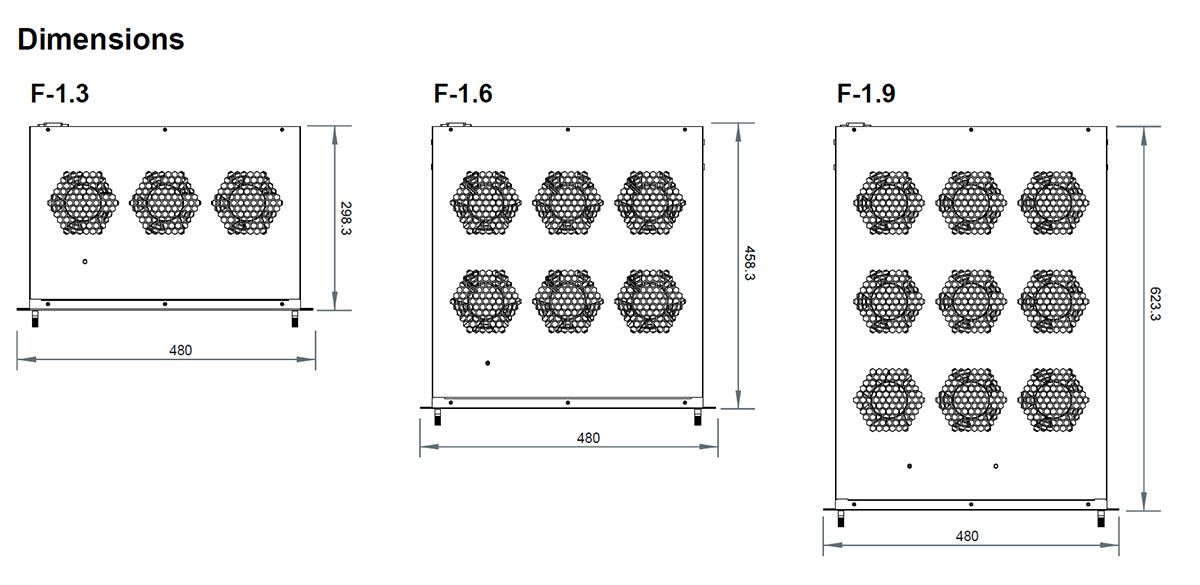

The 1U rackmount design measures 298 x 480 x 44 mm, allowing it to integrate cleanly into standard 19-inch racks without consuming excess space. An external temperature sensor works in conjunction with the front panel LED to provide clear, local temperature visibility. This allows quick visual checks without the need for additional monitoring tools.
Simple Local Control Design
Designed for straightforward operation, the F-1.3 uses local control with no cascade or remote management dependencies, making it well-suited for environments that require dependable, no-frills airflow support.
Build and Compliance
The unit is built for continuous operation with an MTBF of 50,000 hours and complies with CE, FCC, REACH, and RoHS3 standards, supporting deployment in professional data center and IT environments.
Key Features:
Comms Express are proud to be a UK Austin Hughes Distribution Partner.
So we're best placed to help you with sales & technical support for their excellent range of products.
Package Content:
*For complete specifications see the documentation tab above
