| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | AH-AH-IC-RF-33.9A |
| Manufacturer No: | AH-IC-RF-33.9A |
| Delivery: | In Stock: 5-7 Days |
 |

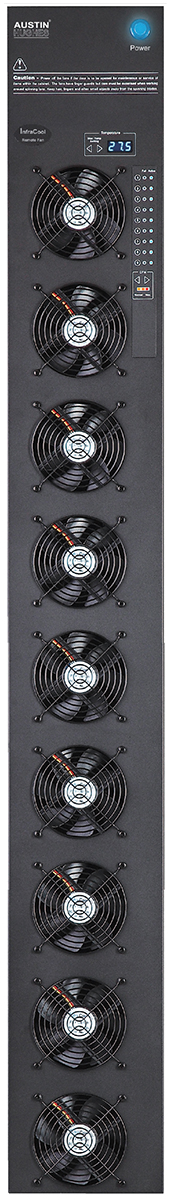

RF-33.9A is an intelligent expansion 33U door mount fan panel with 9 fans.
With today's high-density heat loads inside server racks, cooling should be an integral part of the rack equipment. InfraCool Intelligent Door Mount Fan Panel (RF-33.9A) is designed to provide local and remote management capabilities.
With Rear door Outside installation it Extracts Exhaust air from the rack
With Front door Inside installation it Sucks Cool air into the rack
Up to 16 fan units can be connected by daisy chain and remotely accessed by one single IP address. Maximum 30 x daisy chain group ( i.e. 480 x Fan Units ) can be remotely managed by the free GUI. Front panel LED and buttons allow local monitoring and individual fan kit switch on / off.
Fan speed can be set to automatically adjust based on temperature changes being detected by the sensor. The intelligent fan units provide improved airflow whilst reducing operational costs associated with data center energy consumption.
Seamless Rack Integration
The RF-33.9A is designed to expand cooling capabilities in high-density server racks. It works alongside a master IP fan, enabling coordinated airflow management without requiring additional IP addresses.
Smart Monitoring & Control
Front panel LEDs and buttons provide local monitoring, while web-based interfaces and remote software allow you to control multiple daisy-chained fan units efficiently. Temperature-based fan adjustments optimize performance while keeping energy usage low.
Flexible & Efficient Operation
Fans can automatically adjust based on temperature readings or be manually controlled. Units and individual fans can be toggled on or off locally or remotely, giving precise control over airflow where it's needed most.
Quick Installation
The RF-33.9A's slim, lightweight form factor allows easy mounting on rack doors using common tools. The bundled temperature sensor ensures accurate monitoring from the moment the panel is installed.
Key Features:
Comms Express are proud to be a UK Austin Hughes Distribution Partner.
So we're best placed to help you with sales & technical support for their excellent range of products.
*For complete specifications see the documentation tab above
RF-33.9A is an intelligent expansion 33U door mount fan panel with 9 fans.
With today's high-density heat loads inside server racks, cooling should be an integral part of the rack equipment. InfraCool Intelligent Door Mount Fan Panel (RF-33.9A) is designed to provide local and remote management capabilities.
With Rear door Outside installation it Extracts Exhaust air from the rack
With Front door Inside installation it Sucks Cool air into the rack
Up to 16 fan units can be connected by daisy chain and remotely accessed by one single IP address. Maximum 30 x daisy chain group ( i.e. 480 x Fan Units ) can be remotely managed by the free GUI. Front panel LED and buttons allow local monitoring and individual fan kit switch on / off.
Fan speed can be set to automatically adjust based on temperature changes being detected by the sensor. The intelligent fan units provide improved airflow whilst reducing operational costs associated with data center energy consumption.
Seamless Rack Integration
The RF-33.9A is designed to expand cooling capabilities in high-density server racks. It works alongside a master IP fan, enabling coordinated airflow management without requiring additional IP addresses.
Smart Monitoring & Control
Front panel LEDs and buttons provide local monitoring, while web-based interfaces and remote software allow you to control multiple daisy-chained fan units efficiently. Temperature-based fan adjustments optimize performance while keeping energy usage low.
Flexible & Efficient Operation
Fans can automatically adjust based on temperature readings or be manually controlled. Units and individual fans can be toggled on or off locally or remotely, giving precise control over airflow where it's needed most.
Quick Installation
The RF-33.9A's slim, lightweight form factor allows easy mounting on rack doors using common tools. The bundled temperature sensor ensures accurate monitoring from the moment the panel is installed.
Key Features:
Comms Express are proud to be a UK Austin Hughes Distribution Partner.
So we're best placed to help you with sales & technical support for their excellent range of products.
*For complete specifications see the documentation tab above
