| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | AR-SFP-1G-SX-C-QTM |
| Manufacturer No: | AR-SFP-1G-SX |
| Delivery: | In Stock: 2-3 Days |
 |

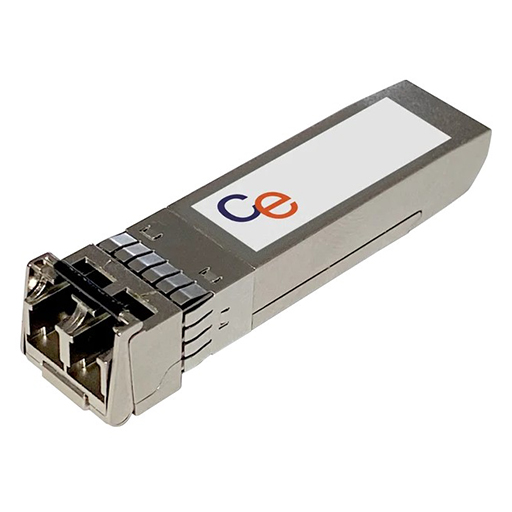

The CE AR-SFP-1G-SX Arista Compatible SFP transceiver provides 1000BASE-SX Gigabit Ethernet connectivity over multimode fibre using an 850nm wavelength. It supports fibre links of up to 550m and features a Duplex LC connector for transmitting and receiving data. The SFP module also supports Digital Optical Monitoring (DOM), providing access to real-time operating information from the transceiver.
The transceiver supports 1000BASE-SX Gigabit Ethernet connectivity at 1Gbps. Its 850nm optical wavelength is suitable for multimode fibre links, with a maximum transmission distance of up to 550m depending on the fibre specification.
The Duplex LC connector provides separate optical paths for transmitting and receiving data across the fibre connection. The compact SFP form factor allows the module to be installed in compatible SFP ports on networking equipment.
Digital Optical Monitoring provides access to real-time operating parameters from the transceiver. This can include information such as temperature, supply voltage, laser bias current and transmitted and received optical power, helping with monitoring of the fibre link.
The transceiver is specified as compatible with Arista Networks equipment using the SFP-1G-SX transceiver type. It follows relevant SFP and optical networking standards, including IEEE 802.3z and SFF-8472, for use with compatible networking hardware.
The CE AR-SFP-1G-SX Arista Compatible SFP transceiver provides 1000BASE-SX Gigabit Ethernet connectivity over multimode fibre using an 850nm wavelength. It supports fibre links of up to 550m and features a Duplex LC connector for transmitting and receiving data. The SFP module also supports Digital Optical Monitoring (DOM), providing access to real-time operating information from the transceiver.
The transceiver supports 1000BASE-SX Gigabit Ethernet connectivity at 1Gbps. Its 850nm optical wavelength is suitable for multimode fibre links, with a maximum transmission distance of up to 550m depending on the fibre specification.
The Duplex LC connector provides separate optical paths for transmitting and receiving data across the fibre connection. The compact SFP form factor allows the module to be installed in compatible SFP ports on networking equipment.
Digital Optical Monitoring provides access to real-time operating parameters from the transceiver. This can include information such as temperature, supply voltage, laser bias current and transmitted and received optical power, helping with monitoring of the fibre link.
The transceiver is specified as compatible with Arista Networks equipment using the SFP-1G-SX transceiver type. It follows relevant SFP and optical networking standards, including IEEE 802.3z and SFF-8472, for use with compatible networking hardware.
