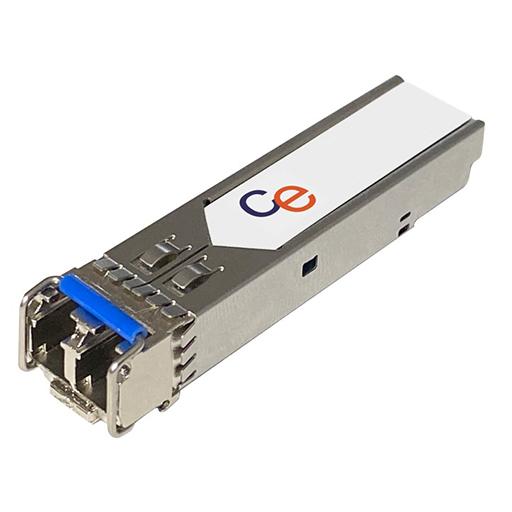

Myricom Compatible 10G-SFP-LR Transceiver SFP+ 10GBase-LR (1310nm SMF 10km LC DOM)

The CE 10G-SFP-LR Myricom Compatible SFP+ Transceiver provides 10 Gigabit Ethernet connectivity over single-mode fibre for links extending up to 10km. Operating at 1310nm, the module supports 10GBASE-LR transmission through a dual-LC connector and incorporates digital diagnostics for monitoring optical operating parameters. Its SFP+ form factor is hot-pluggable and uses a 3.3V power supply for compatible networking equipment.

Key Features of CE Myricom Compatible SFP+ Transceiver

• 10GBASE-LR SFP+ transceiver
• 10Gbps Ethernet connectivity
• 1310nm DFB laser transmitter
• Up to 10km transmission distance
• Single-mode fibre support
• Dual-LC connector
• Digital Diagnostic Monitoring (DDM)
• 3.3V single power supply
• Hot-pluggable SFP+ form factor
• IEEE 802.3ae and SFF-8472 compliant

10GBASE-LR Transmission

This transceiver supports 10GBASE-LR connectivity at up to 10.3Gbps, providing optical transmission over single-mode fibre at distances of up to 10km. The 1310nm wavelength is suited to long-range 10 Gigabit Ethernet fibre links.

Single-Mode Fibre Interface

A dual-LC optical interface provides the connection to single-mode fibre cabling. The module uses a 1310nm DFB laser transmitter and supports a 6dB optical power budget for the specified 10km reach.

Digital Diagnostics

Digital Diagnostic Monitoring provides access to optical operating parameters through compatible equipment. The SFP+ module is hot-pluggable and complies with SFP+ MSA and SFF-8472 requirements.
