| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | TL-SM321A-C-QTM |
| Manufacturer No: | TL-SM321A |
| Delivery: | In Stock: 2-3 Days |
 |

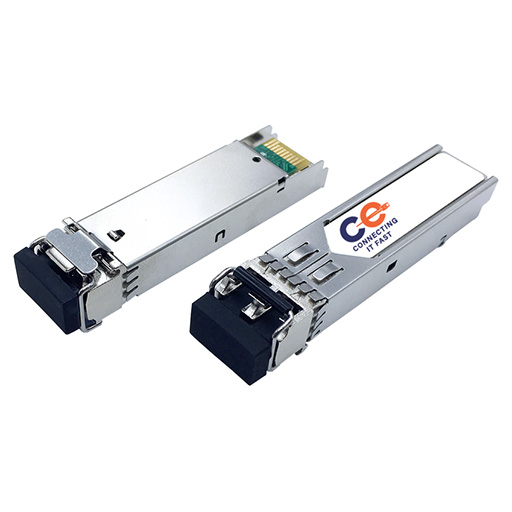

The CE TL-SM321A TP-Link Compatible Transceiver is a 1000Base-BX WDM bi-directional SFP module for single-mode fibre connections up to 20 km. It uses a 1550 nm transmit wavelength and 1310 nm receive wavelength over a single strand of 9/125 ?m single-mode fibre, providing 1.25 Gbps data transmission. The LC simplex interface supports WDM bi-directional communication, while DDM, SFP-MSA compliance and hot-swappable operation provide practical monitoring and installation flexibility. It is intended to operate with a compatible 1310 nm transmit and 1550 nm receive WDM module, such as the TL-SM321B.
The module transmits and receives data at different wavelengths over a single strand of single-mode fibre. The 1550 nm transmit and 1310 nm receive configuration is intended to operate as part of a matched WDM link.
Using 9/125 ?m single-mode fibre, it supports a maximum cable length of 20 km and provides a 1.25 Gbps data rate. Its LC simplex interface supports the single-fibre connection required for WDM bi-directional operation.
DDM provides monitoring of transceiver parameters, while SFP-MSA compliance and hot-swappable operation support installation in compatible networking equipment. The module operates from a 3.3 V power supply and has an operating temperature range of 0 °C to 70 °C.
The CE TL-SM321A TP-Link Compatible Transceiver is a 1000Base-BX WDM bi-directional SFP module for single-mode fibre connections up to 20 km. It uses a 1550 nm transmit wavelength and 1310 nm receive wavelength over a single strand of 9/125 ?m single-mode fibre, providing 1.25 Gbps data transmission. The LC simplex interface supports WDM bi-directional communication, while DDM, SFP-MSA compliance and hot-swappable operation provide practical monitoring and installation flexibility. It is intended to operate with a compatible 1310 nm transmit and 1550 nm receive WDM module, such as the TL-SM321B.
The module transmits and receives data at different wavelengths over a single strand of single-mode fibre. The 1550 nm transmit and 1310 nm receive configuration is intended to operate as part of a matched WDM link.
Using 9/125 ?m single-mode fibre, it supports a maximum cable length of 20 km and provides a 1.25 Gbps data rate. Its LC simplex interface supports the single-fibre connection required for WDM bi-directional operation.
DDM provides monitoring of transceiver parameters, while SFP-MSA compliance and hot-swappable operation support installation in compatible networking equipment. The module operates from a 3.3 V power supply and has an operating temperature range of 0 °C to 70 °C.
