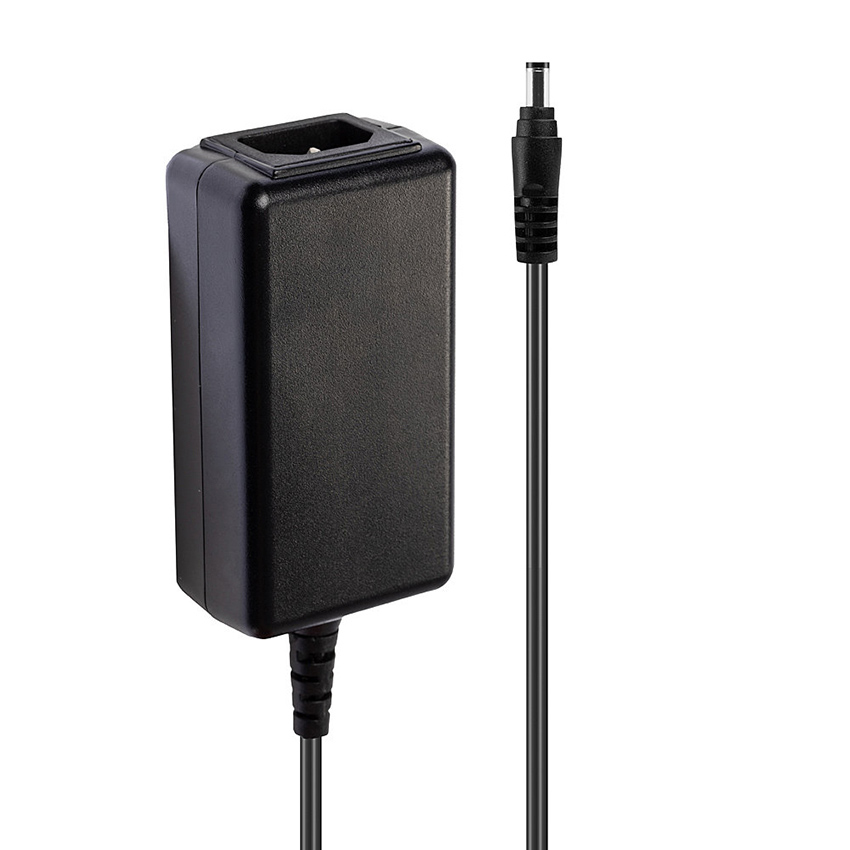

Lindy IEC Power Supply

5VDC 4A IEC C14 Power Supply, 5.5/2.5mm - Switching power supply for use with IEC C13 power cable

Key Features:

Switching power supply with IEC C14 male connection
5VDC 4A output for powering connected devices
Standard DC jack for a simple connection
Connect with compatible C13 cable
2 Year Warranty


The Lindy IEC C14 power supply is a regulated and suitable solution for powering connected equipment which require an output voltage and amperage up to 5V 4A.

The C14 male connection allows for connection of cables which use a C13 female socket, while a standard DC jack ensures simple fitting with compatible devices.

Specifications:

Input Voltage: 100…240VAC
Input AC Frequency: 50…60Hz
Output Voltage: 5V
Output Voltage Accuracy: ± 5%
Output Current (max.): 4A
Output Power: 20W
Average active efficiency: 0.8308
Efficiency at low load (10%): 0.7424
No-load Power Consumption: 0.1W
Dimensions (approx.) WxDxH: 50.4x85.8x32.9mm (1.98x3.38x1.3in)
DC Cable Length: 1.2m (3.94ft)
DC Connector Size: 5.5/2.5mm
Housing Material: Plastic
Net Weight: 0.167kg (0.37lb)
Operating Temperature: 0°C - 40°C (32°F - 104°F)
Storage Temperature: -20°C - 70°C (-4°F - 158°F)
Operating Humidity: 0 - 75% RH (Non-condensing)
Storage Humidity: 0 - 95% RH (Non-condensing)
Colour: Black
Packaging Type: Carton Box
Packaging Dimensions: 140x40x120mm (5.51x1.57x4.72in)
Gross Weight: 0.199kg (0.44lb)
Warranty (Years): 2
Certificated: EMC, LVD, ErP, UL, CCC, RCM, PSE, RoHS, REACH, California Proposition 65
Package Content:
IEC C14 Power Supply
Lindy Manual


Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)
