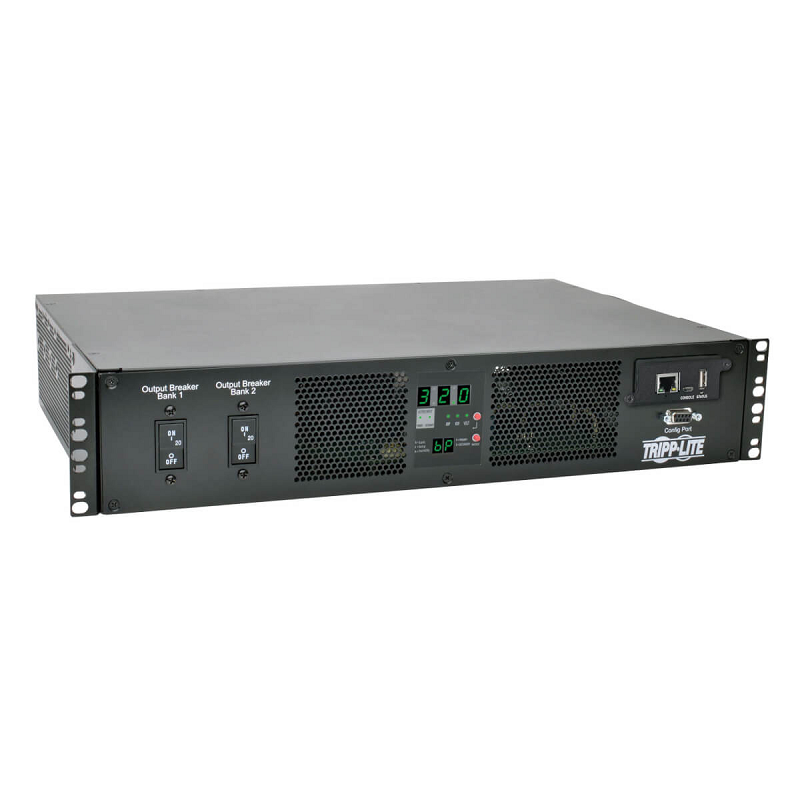

Tripp Lite TAA-Compliant 7.4kW Single-Phase ATS/Switched PDU, 230V Outlets (16 C13 & 2 C19)

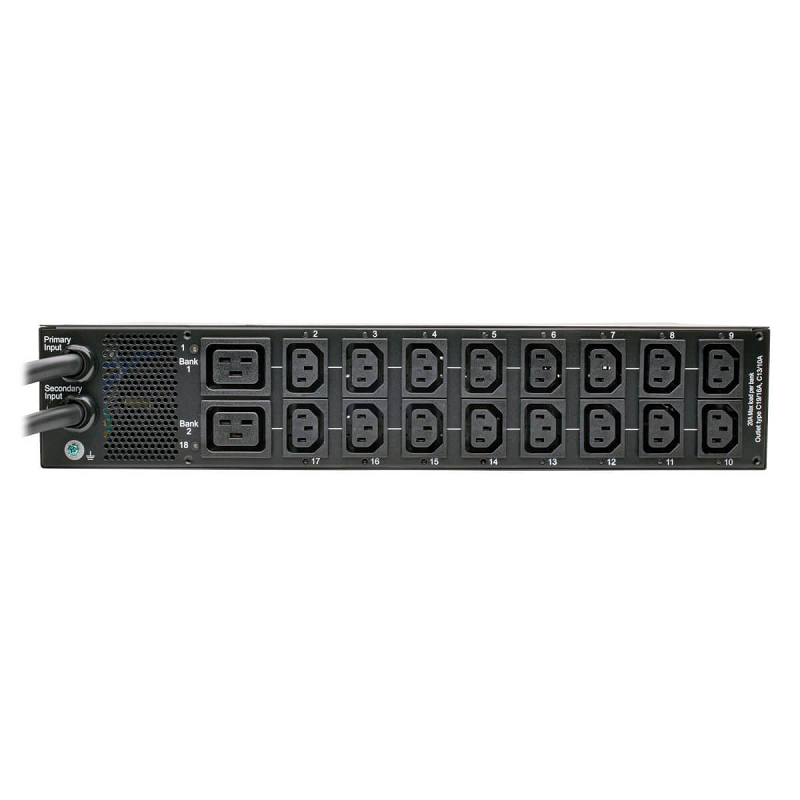

The PDUMH32HVATNET 7.4kW Single-Phase 230V Switched Automatic Transfer Switch / ATS PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 2U of space in EIA-standard racks and features 18 switched outlets (16 C13 and two C19) in two load banks, each bank protected by a 20A circuit breaker.

Dual 3-meter input cords with IEC309 32A Blue (2P+E) plugs connect to separate primary and secondary single-phase 230V power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1–5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.

Built-in LX Platform network management interface. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separate) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

• Provides remote power monitoring and enables redundant power for network devices single-corded and other non-redundant power supply configurations
• Dual 3m input cords with IEC309 32A Blue (2P+E) plugs connect to separate primary and secondary single-phase power sources
• Dynamic solid-state (TRIAC) automatic transfer switching
• Switches to secondary power source if primary source fails or becomes unstable
• 1–5 ms transfer time ensures uninterrupted operation of connected equipment
• Built-in processor monitors both sources and prevents switching if secondary source is unavailable or of lower quality than primary source
• Reports source A and source B input power status and other information, including power availability, line voltage, frequency, amps, kilowatts and power factor
• LX Platform interface allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
• Real-time load/current data with billing-grade accuracy (+/- 1 percent)

• Automated alerts help prevent accidental overloads, power loss and downtime
• Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
• Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP
• Protect each of 2 single-phase output banks

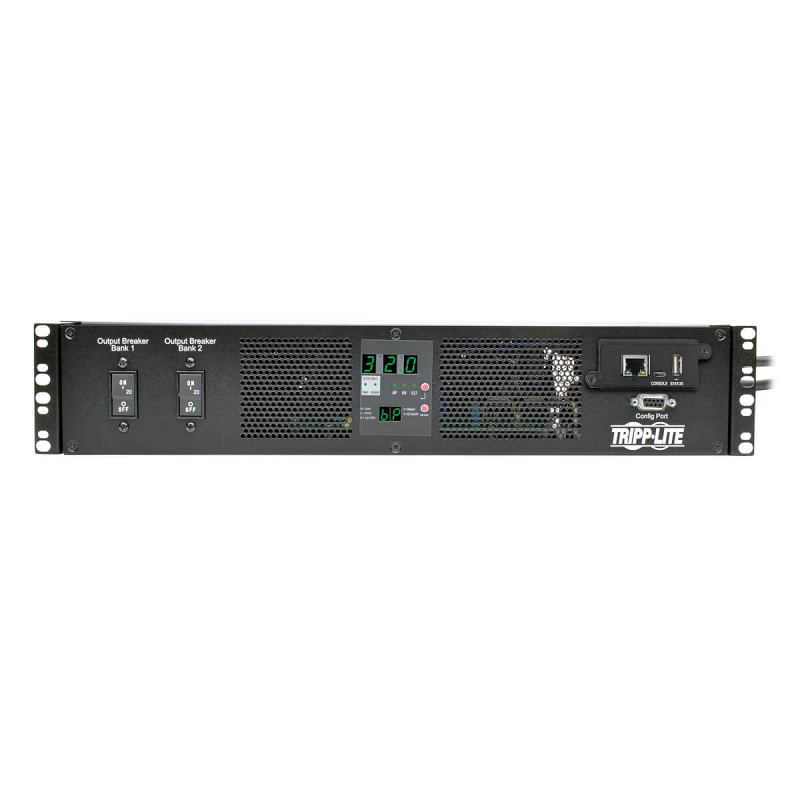

• Front-panel LED indicates when breaker has tripped
• Set of Plug-lock output power cable retention sleeves prevent accidental disconnection of connected devices
• Compatible with EIA-standard 19 in. 4-post racks and rack enclosures
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

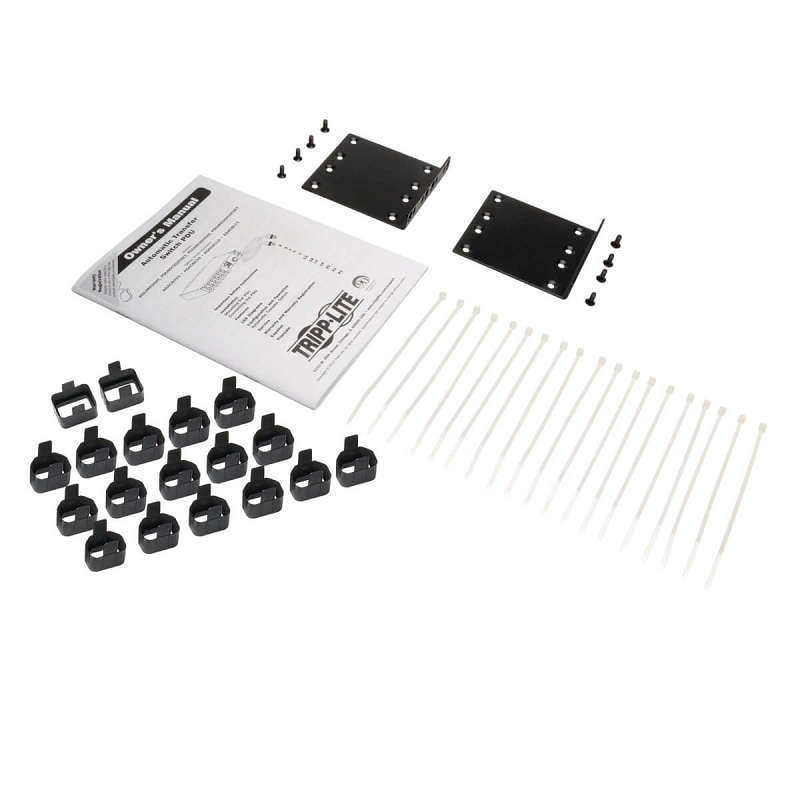

• PDUMH32HVATNET 7.4kW Single-Phase 230V ATS / Switched PDU
• Rack-mounting brackets
• Plug-lock cable retention sleeves

• USB configuration cable
• Owner’s manual
