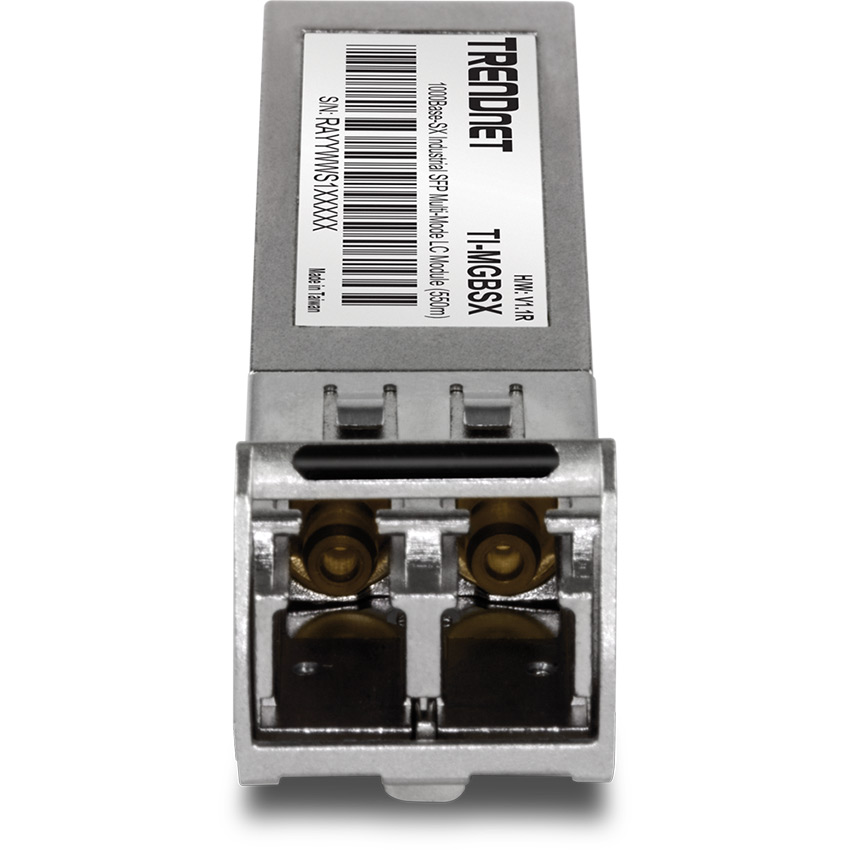

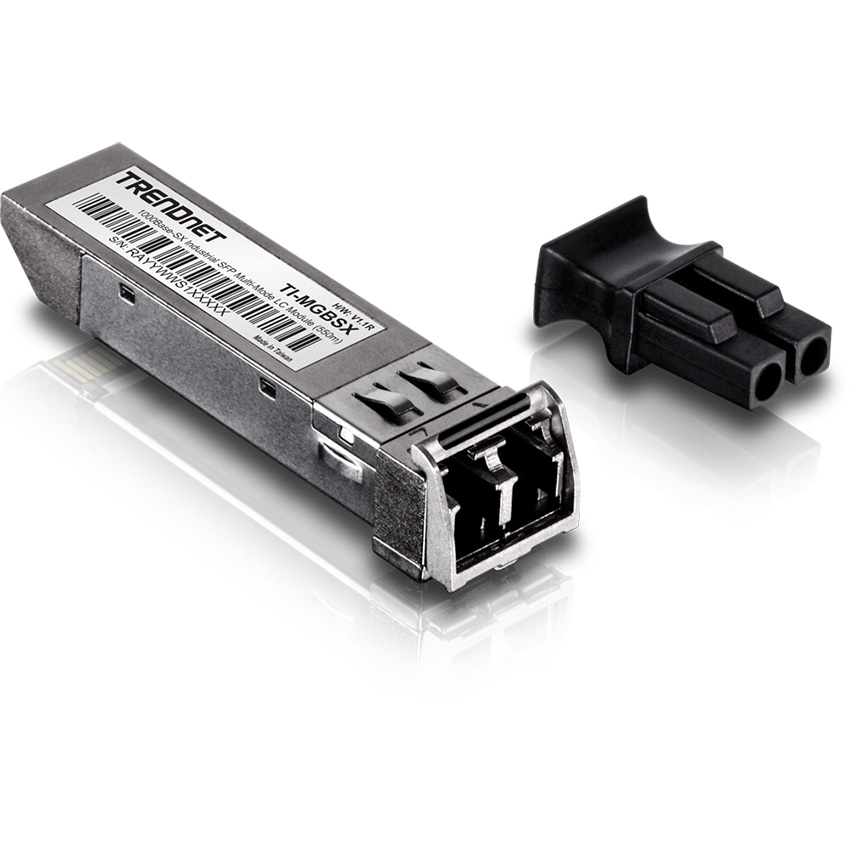

The 1000Base-SX Industrial SFP Multi-Mode LC Module, model TI-MGBSX, is designed to operate within a wide temperature range and is well suited for industrial environments.
This SFP module works with standard SFP slots found on industrial switches and fibre converters. The TI-MGBSX is compatible with Duplex LC fibre connector types and supports gigabit multi-mode fibre connections at distances of up to 550 m (1804 ft.).
Key Features:
Datasheets / User Manuals / Quick Start Guides can be downloaded from our Documentation tab (above)
Fiber Applications
Long distance fiber networking for industrial, manufacturing, and corporate/education campus applications.
Fiber Mode / Distance
Multi-Mode transceiver spans distances up to 550 m (1804 ft.) and supports up to 1.25 Gbps.

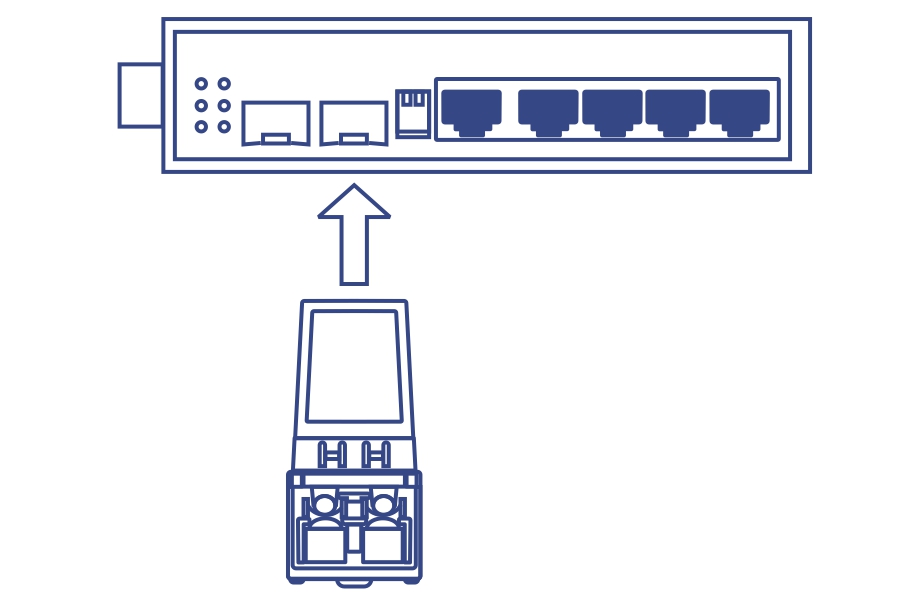

Compatibility
Hot-pluggable with a MSA compliant SFP slot and compatible with fiber cables with LC-type duplex connectors.
Key Features:

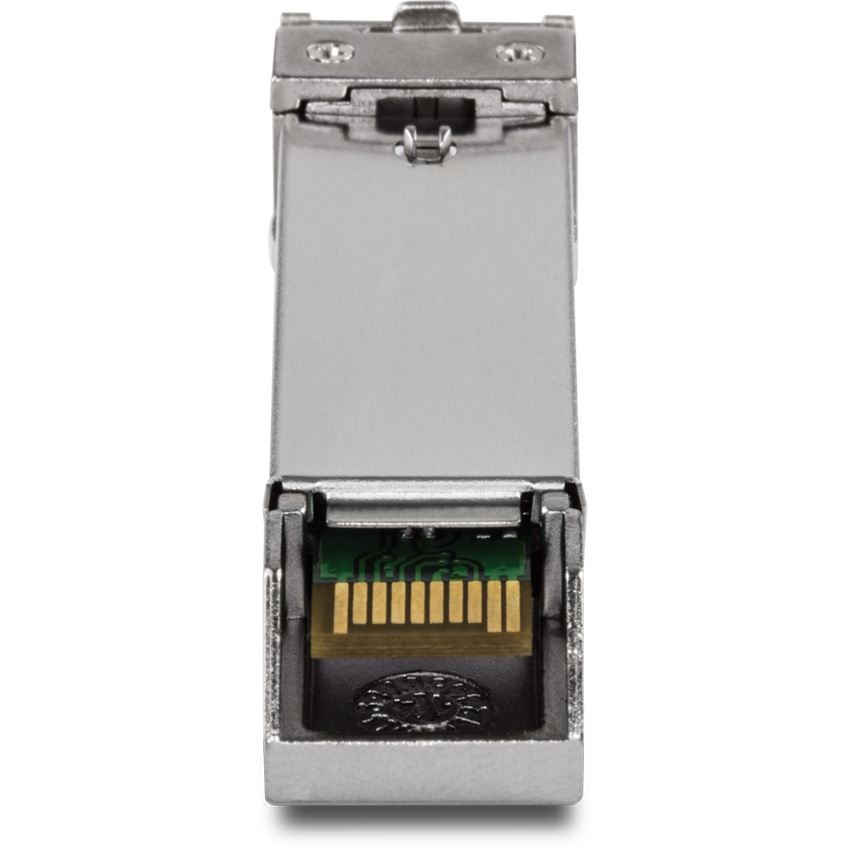

Hot-Pluggable SFP Hot-pluggable SFP transceiver compatible with a MSA compliant SFP slot. |
|
Fiber Wavelength Compatible with multi-mode 850 nm transmissions. |
|
Fiber Distance Supports networking for distances up to 550 m (1804 ft.). |
|

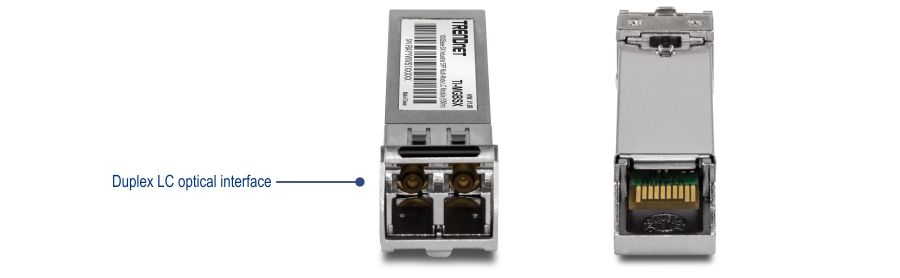

Fiber Interface LC-type duplex connector. |
|
Operating Temperature Rated for an operating temperature range of -40°– 85 °C (-40° – 185 °F). |
