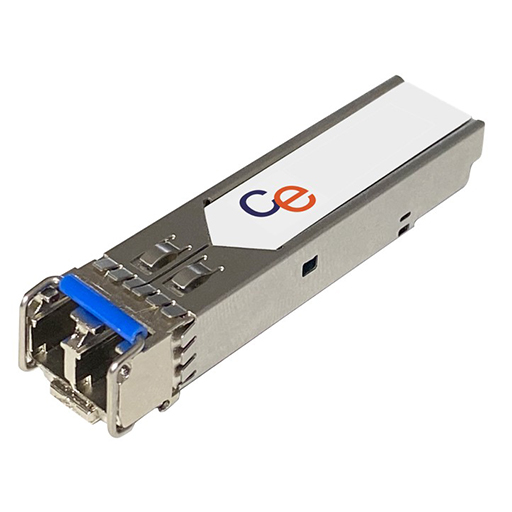

TP-Link Compatible TL-SM5110-LR Transceiver SFP+ 10GBase-LR (1310nm SMF 10km LC DOM)

The CE TL-SM5110-LR TP-Link Compatible SFP+ Transceiver provides 10Gbps Ethernet connectivity over single-mode fibre links up to 10km. Operating at 1310nm, it supports 10GBASE-LR connections through a duplex LC interface and 9/125µm fibre. The module supports Digital Diagnostic Monitoring (DDM), SFP-MSA compatibility and hot-swappable installation for use with compatible 10G SFP+ network equipment.

Key Features of CE TP-Link Compatible SFP+ Transceiver

• 10GBASE-LR connectivity at 10Gbps
• 1310nm wavelength for single-mode fibre transmission
• Up to 10km transmission distance
• Supports 9/125µm single-mode fibre
• Duplex LC connector
• Digital Diagnostic Monitoring (DDM)
• SFP-MSA compatible
• Hot-swappable SFP+ module

10GBASE-LR Connectivity

The transceiver supports 10Gbps Ethernet transmission using the 10GBASE-LR standard, providing connectivity across single-mode fibre distances of up to 10km.

1310nm Single-Mode Transmission

Operating at a 1310nm wavelength, the module uses 9/125µm single-mode fibre and a duplex LC interface for full-duplex optical communication.

Monitoring and Compatibility

Digital Diagnostic Monitoring provides module information and operating data, while SFP-MSA compatibility supports use with compatible 10G SFP+ equipment. The hot-swappable format allows the module to be installed or replaced without requiring a fixed internal connection.
