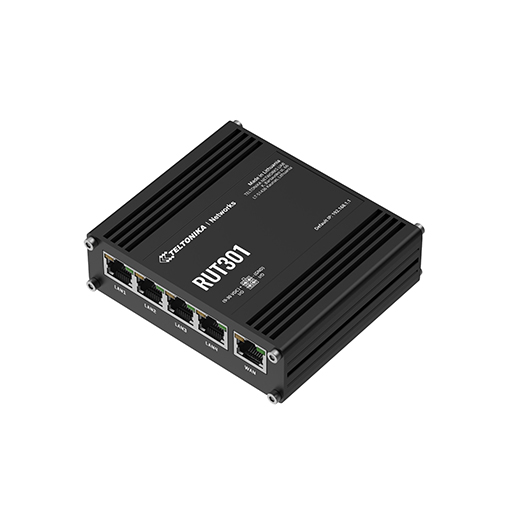

The Teltonika RUT301 is an industrial Ethernet router providing reliable wired network connectivity through five 10/100 Mbps Ethernet ports. It combines four LAN ports with a dedicated WAN port, two configurable digital inputs and outputs, and a USB 2.0 interface for connecting additional devices and peripherals. With RutOS, built-in firewall functions, multiple VPN technologies, industrial communication protocols and remote management through Teltonika RMS, it is suitable for manufacturing, automation, retail and other demanding wired networking installations.

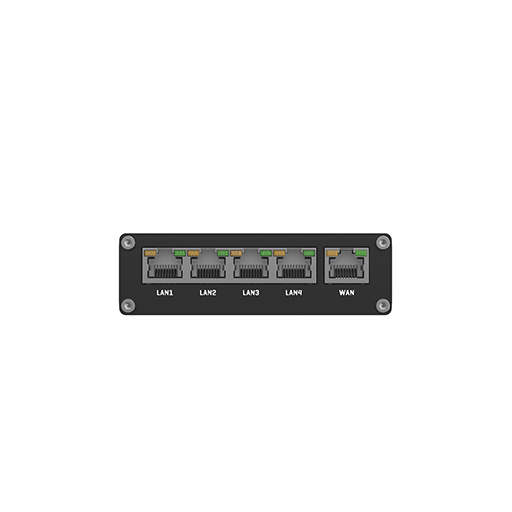

The router provides five 10/100 Mbps RJ45 Ethernet ports, consisting of one dedicated WAN port and four LAN ports. The ports support IEEE 802.3, IEEE 802.3u and IEEE 802.3az standards, with auto MDI/MDIX functionality for flexible network connections.

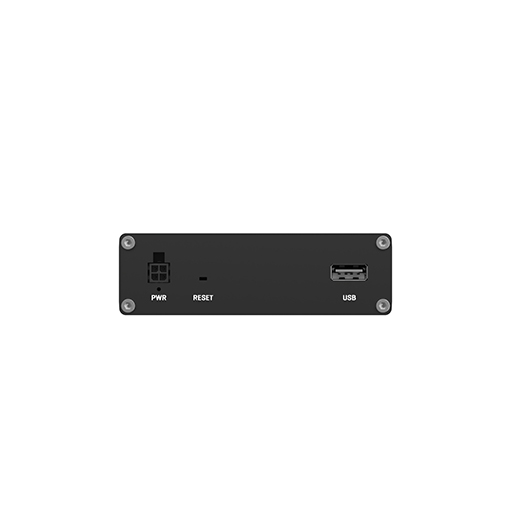

Two configurable digital inputs and two configurable digital outputs allow the router to interact with connected equipment and trigger network or management events. A USB 2.0 Type-A port can be used with compatible external storage, printers, USB-to-serial adapters and other peripherals.
RutOS provides access to routing, DHCP, DNS, VLAN, traffic management, load balancing and network monitoring functions. Static routing, dynamic routing and policy-based routing options allow the router to be configured for different wired network topologies.
The RUT301 includes a pre-configured firewall with additional configuration options for traffic rules, port forwarding, NAT and other network controls. VPN and tunnelling support includes technologies such as OpenVPN, IPsec, GRE, L2TP, SSTP, WireGuard, ZeroTier and DMVPN.
Support for industrial communication and management protocols allows the router to integrate with connected equipment and existing network infrastructure. MQTT, SNMP, Modbus and other supported services provide options for monitoring, automation and remote data exchange.

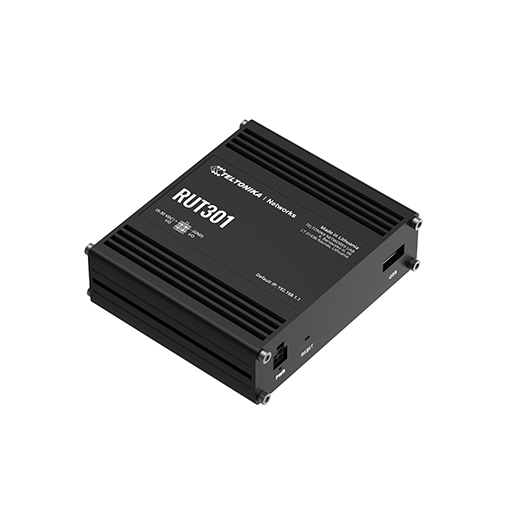

The aluminium housing measures 100 x 30 x 85 mm and supports DIN-rail and flat-surface placement. An operating temperature range of -40 °C to 75 °C and 10% to 90% non-condensing humidity support use in a variety of industrial environments.
The router uses a 9-30 VDC input through a 4-pin industrial power connector and includes protection against reverse polarity and voltage surges. Teltonika RMS provides remote monitoring, administration, configuration and access functions for compatible deployments.
The Teltonika RUT301 is an industrial Ethernet router providing reliable wired network connectivity through five 10/100 Mbps Ethernet ports. It combines four LAN ports with a dedicated WAN port, two configurable digital inputs and outputs, and a USB 2.0 interface for connecting additional devices and peripherals. With RutOS, built-in firewall functions, multiple VPN technologies, industrial communication protocols and remote management through Teltonika RMS, it is suitable for manufacturing, automation, retail and other demanding wired networking installations.
The router provides five 10/100 Mbps RJ45 Ethernet ports, consisting of one dedicated WAN port and four LAN ports. The ports support IEEE 802.3, IEEE 802.3u and IEEE 802.3az standards, with auto MDI/MDIX functionality for flexible network connections.
Two configurable digital inputs and two configurable digital outputs allow the router to interact with connected equipment and trigger network or management events. A USB 2.0 Type-A port can be used with compatible external storage, printers, USB-to-serial adapters and other peripherals.
RutOS provides access to routing, DHCP, DNS, VLAN, traffic management, load balancing and network monitoring functions. Static routing, dynamic routing and policy-based routing options allow the router to be configured for different wired network topologies.
The RUT301 includes a pre-configured firewall with additional configuration options for traffic rules, port forwarding, NAT and other network controls. VPN and tunnelling support includes technologies such as OpenVPN, IPsec, GRE, L2TP, SSTP, WireGuard, ZeroTier and DMVPN.
Support for industrial communication and management protocols allows the router to integrate with connected equipment and existing network infrastructure. MQTT, SNMP, Modbus and other supported services provide options for monitoring, automation and remote data exchange.
The aluminium housing measures 100 x 30 x 85 mm and supports DIN-rail and flat-surface placement. An operating temperature range of -40 °C to 75 °C and 10% to 90% non-condensing humidity support use in a variety of industrial environments.
The router uses a 9-30 VDC input through a 4-pin industrial power connector and includes protection against reverse polarity and voltage surges. Teltonika RMS provides remote monitoring, administration, configuration and access functions for compatible deployments.
