| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | TEH30FK |
| Manufacturer No: | 593312 |
| Delivery: | In Stock: 7-10 Days |
 |
All the functions you need in your hand

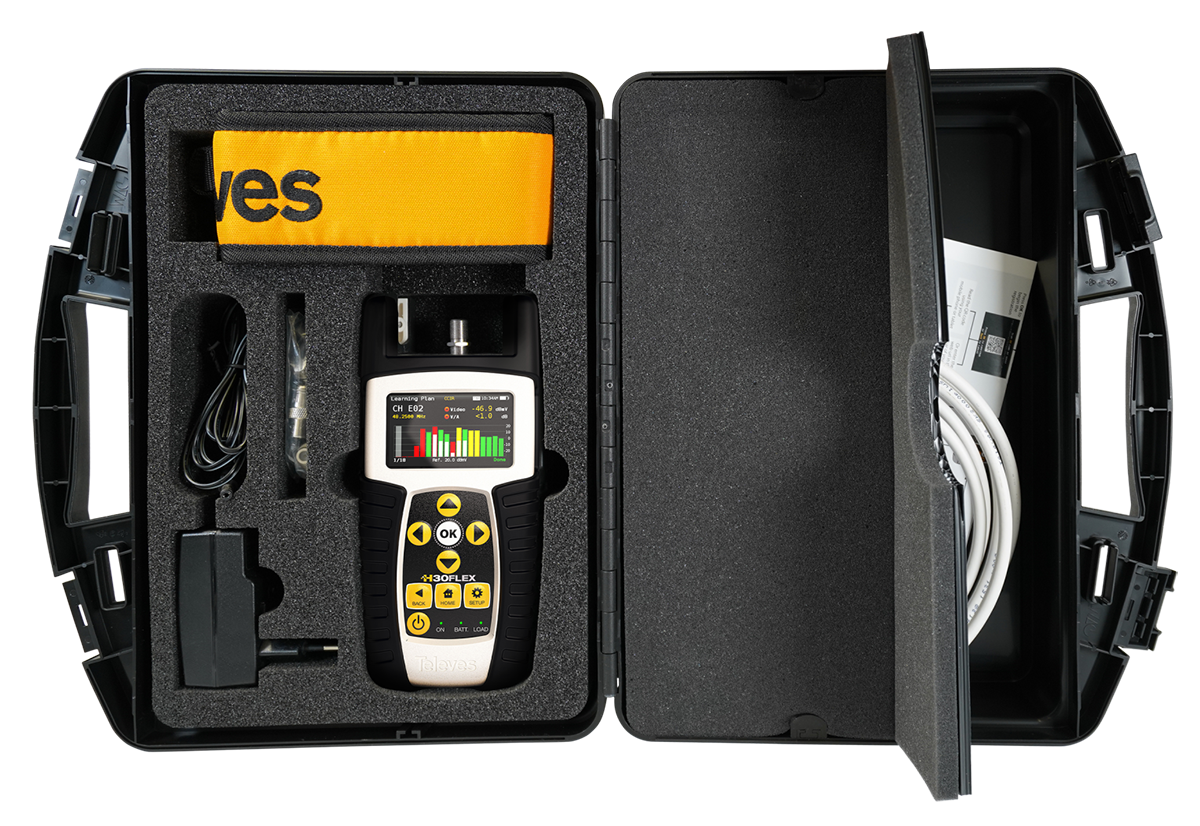

H30FLEX is meter designed to meet the requirements of TV installers for both satellite and terrestrial signals.
Highlights
H30FLEX is a light-weight handheld meter packed with all of the features required to install and maintain TV systems using different modulation standards, like satellite (DVB-S/S2) or terrestrial/cable (analogue channels, DVB-T/T2 or DVB-C).
Available for the first time in an economic product, digital processing brings installers the opportunity to take measurements with a high level of accuracy, essential to give the installer the peace of mind of a job well done. It allows you to customize upgrade choice with download software.
Different standards included in each reference. Choose and only pay for the features you need.
Multi Standard
Fully configurable equipment to meet your needs
H30FLEX is fully prepared to meet the specific needs of each individual user. It is a multi-standard equipment, ready to take measurements on the satellite band, but also on the terrestrial band channels. In order to meet the changing needs of individual users, the equipment allows them to easily add new options, with no need to send the meter back to the factory.
Ready to Capture
signal from any satellite
H30FLEX allows you to configure the parameters required for the reception of your satellite signal. To do this, H30FLEX allows pre-amplifier powering, and configuration of both DiSEqC and SCR parameters.
Interactive User Interface
Optimize the learning curve
Scrolling through the menu is now very easy, thanks to its single-level structure, which includes all the functions in a very intuitive way: better utility, higher operation speed, and maximum productivity. No function requires more than three successive button pushes to achieve the desired operation. You will not find any easier-to-use device, and will be able to surf the different functions with no need for a user manual.
Comprehensive Functionality
Pass/Fail indicators
A full range of functionalities such as Single-channel measurements, Constellation diagram, Spectrum analyser, Service identification, Data logs, Channel plan auto-learning, and more.
Meter from H30 series: How to choose the most convenient model?
The H30 series consists of different customizable multistandard meters, all of them designed to carry out installation, maintenance and monitoring of telecommunications networks. Each model stands out for offering new functionalities, while preserving all the advantages of the previous model.
Through the following comparative table, it is possible to choose the most suitable meter model for each professional:
| H30FLEX | H30EVOLUTION | H30CRYSTAL | ||
| Multi-standard customizable | • | • | • | |
| Frequency range | Return P.: 5-50 MHz |
X | X | • |
| Terrestrial: 50-880 MHz |
• | • | • | |
| Satellite: 250-2400 MHz |
• (up to 2200MHz) |
• | • | |
| Screen | 2.8” TFT 400 x 240 full color | |||
| Multi-screen with touch control on mobile device | X | • | • | |
| Smartphone armband | X | • | • | |
| 2,4 / 5GHz WiFi connectivity | X | • | • | |
| WiFi analyzator | X | •(*) | •(*) | |
| Bluetooth connectivity | X | • | • | |
| Ethernet interface | • | • | • | |
| USB interface | USB (A-type) | |||
| Optical measures | X | X | • | |
| Guided satellite pointing | X | • | • | |
| IPTV analyzator | X | •(*) | •(*) | |
| HEVC displaying | on the meter | X | X | •(*) |
| on the mobile device | X | •(*) | •(*) | |
| LNB Wideband compatible | X | • | • | |
| Terrestrial input level to 120dBμV | •(**) | •(**) | •(**) | |
| dCSS compatible | •(**) | •(**) | •(**) | |
| Management interface access (datalogs, channel plan...) | Cable Ethernet | Wireless (WiFi/Bluetooth) Ethernet cable |
||
| Dimensions | 175x100x52 mm | |||
| Weight | 510 g. | 510 g. | 550 g. | |
| Color | Black & White | Black & Grey | Light & dark grey | |
| * According to reference ** Free activation of the options with the meter registration |
||||
