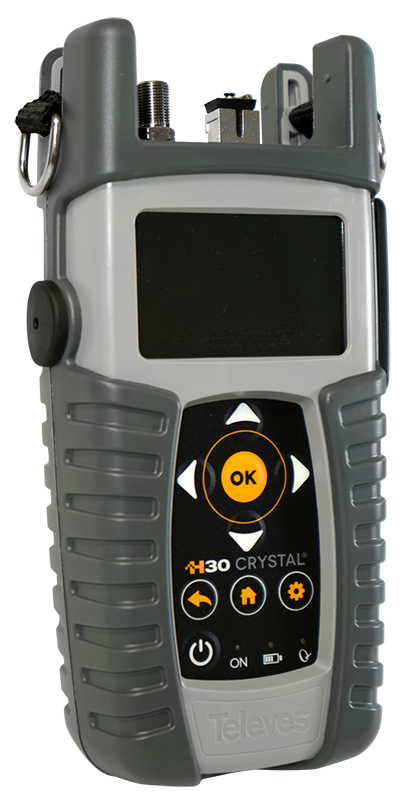

Televes H30 Crystal Analyser

All the functions you need, also in fiber optics

The H30Crystal expands H30 series of portable and compact meters by bringing strong efficiency in optic measurements. Its ability to analyse fiber-optic networks, along with all the features of previous models, makes this equipment a versatile and comprehensive tool for today’s professional technicians, who are used to working with several telecommunication network technologies.

Highlights

• Accurate power and optical attenuation measurement
• Multistandard: DVB-S/S2, DVB-T/T2, DVB-C, analogue channels and return path
• Multiscreen system with touch control: display the meter screen on a mobil device, and control the meter by touch gestures and buttons
• WiFi and Bluetooth connectivity
• Wideband LNB supported
• Guided satellite pointing
• Real-time digital processing
• Light-weight handheld meter
• User friendly interface
• Option to expand through Wi-Fi analyser, IPTV and HEVC display both on the meter and on the mobile device
• All measurements are carried out by pressing a single button equipped with Pass/Fail indicators to reduce installation errors

H30Crystal is also a scalable and multi-standard equipment designed to measure DVB-S/S2, DVB-T/T2, DVB-C, analogue channels and the return path. Easily-downloadable software licences will let you update your meter with new options. These features, together with its wide range of tools and functionalities, make the meter a multifunctional equipment ideal for installations, maintenance and troubleshooting of coaxial and fiber-optic networks. All of this in just one device!

Operating the meter is more flexible thanks to its multiscreen system: the user can manage it remotely and display its contents on their own mobile device (Android, iOS or PC). Wi-Fi and Bluetooth connectivity will let you work with all the conveniences of a wireless connection. In addition, a universal armband for mobile devices up to 6” is included, so that using a smartphone is even more comfortable.

Just as the rest of the meters fully designed and manufactured in Televes Corporation, H30Crystal takes advantage of the digital processing technology, and provides the user with a speed and mathematical accuracy equivalent to that of laboratory equipment.

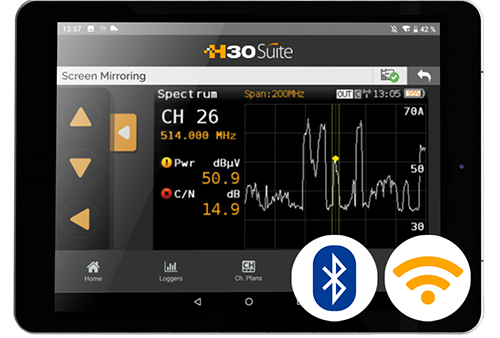

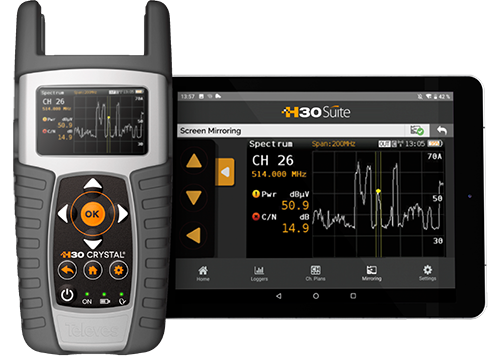

Multiscreen and remote control

Controllable from any Android or iOS device or a PC with H30Suite

The H30Crystal multiscreen system allows you to display the meter’s screen on your smartphone or tablet to wirelessly control the meter or just for the sake of working with a larger screen. The installer may wirelessly access the equipment at any time from anywhere in the installation (depending on the local network connection range), with the convenience of always using his/her own device. Simply install the H30Suite App (ref. 100016) on your device and connect it to the Wi-Fi network generated by the meter (AP mode).

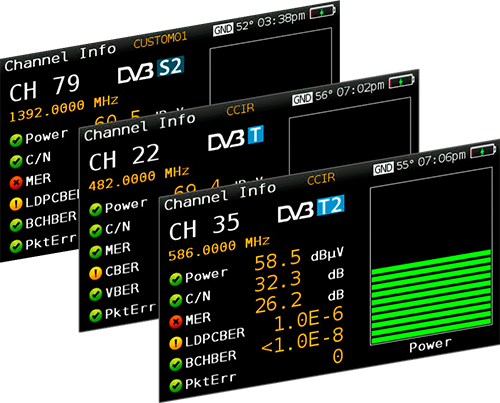

Multi Standard

Fully configurable equipment to meet your needs

H30Crystal is fully prepared to meet the specific needs of each individual user. It is a multi-standard equipment, ready to take measurements on the satellite band, but also on the terrestrial band channels. In order to meet the changing needs of individual users, the equipment allows them to easily add new options, with no need to send the meter back to the factory.



Wi-Fi and Bluetooth connectivity

Wireless access to the meter

Equipped with 2.4/5 GHz Wi-Fi and Bluetooth, the equipment allows a secure access through an Android or iOS device, or a PC. The web management application H30Suite (ref. 100016) may be used to check and export stored measurements, access to quality profiles, meter settings cloning, meter registration through a friendlier interface or real-time consultation of the user manual.



Ready to Capture

signal from any satellite

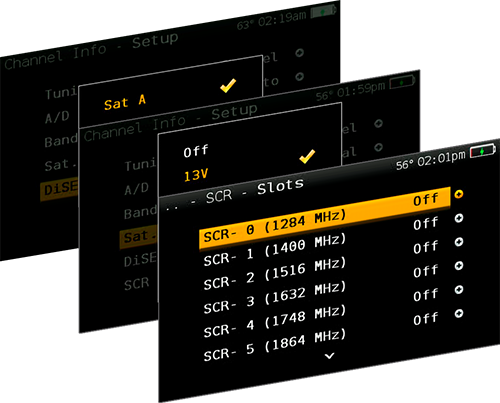

H30Crystal allows you to configure the parameters required for the reception of your satellite signal. To do this, H30Crystal allows pre-amplifier powering, and configuration of both DiSEqC and SCR parameters.



Meter from H30 series: How to choose the most convenient model?

The H30 series consists of different customizable multistandard meters, all of them designed to carry out installation, maintenance and monitoring of telecommunications networks. Each model stands out for offering new functionalities, while preserving all the advantages of the previous model.

Through the following comparative table, it is possible to choose the most suitable meter model for each professional:
