| Part No: | TEH30EA |
| Manufacturer No: | 593502 |
| Delivery: | In Stock: 7-10 Days |
 |
All the functions you need, now in your smartdevice

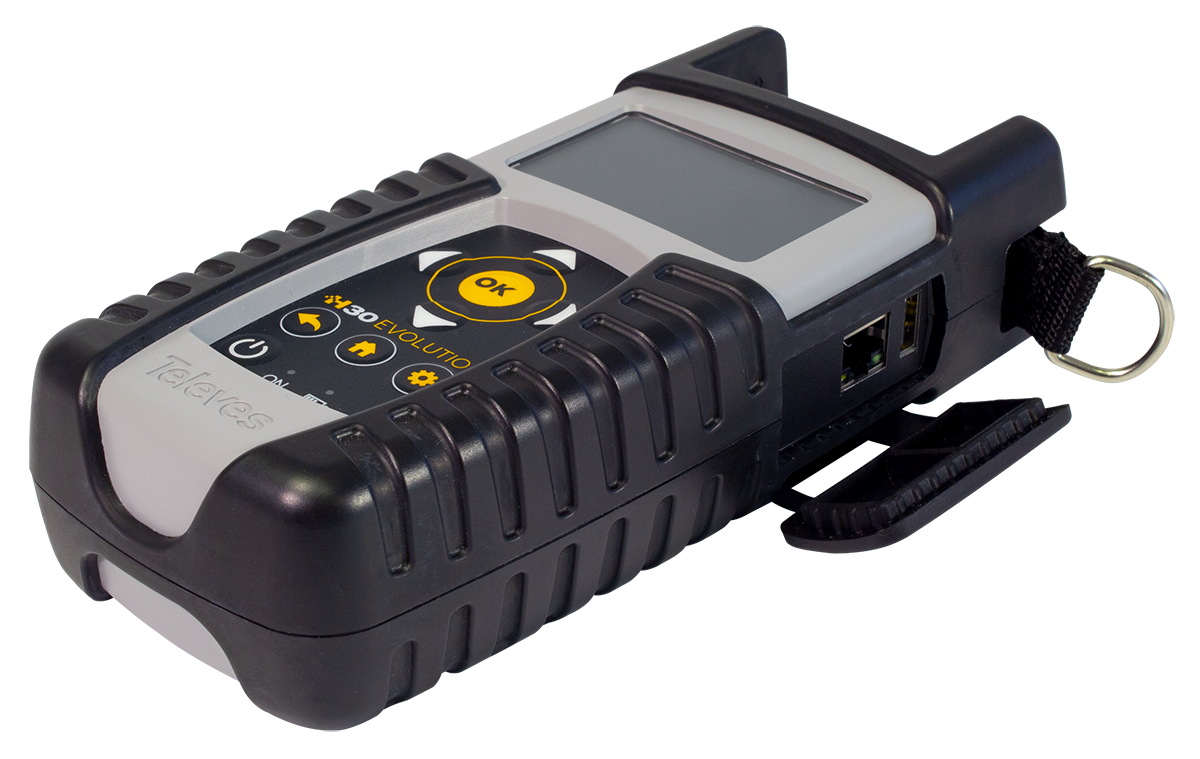

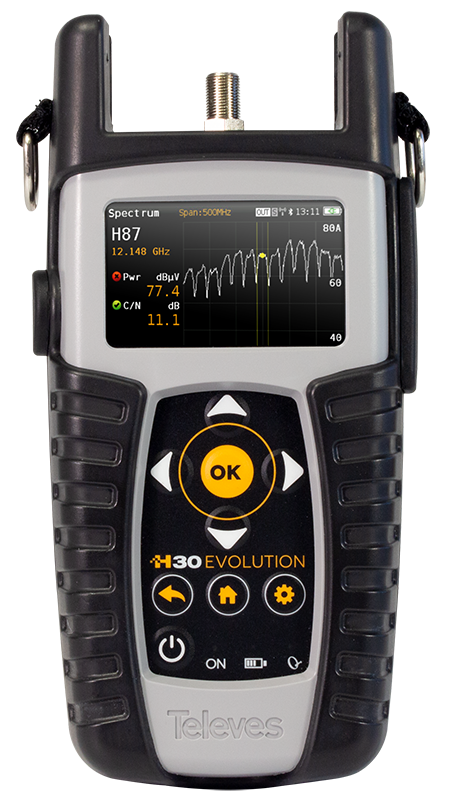

H30Evolution is a field strength meter that combines the best features of a portable and compact equipment - distinctive of the H30 series - with revolutionary functionalities. Thanks to the innovative multiscreen system based on Wi-Fi/Bluetooth,the meter may be remotely displayed and controlled using any Android or iOS device or a PC, thus providing the flexibility and convenience of a wireless system.
Highlights
Multiscreen and remote control
Controllable from any Android or iOS device or a PC with H30Suite
The H30Evolution multiscreen system allows you to display the meter’s screen on your smartphone or tablet to wirelessly control the meter or just for the sake of working with a larger screen. The installer may wirelessly access the equipment at any time from anywhere in the installation (depending on the local network connection range), with the convenience of always using his/her own device. Simply install the H30Suite App (ref. 100016) on your device and connect it to the Wi-Fi network generated by the meter (AP mode).
Multi Standard
Fully configurable equipment to meet your needs
H30Evolution is fully prepared to meet the specific needs of each individual user. It is a multi-standard equipment, ready to take measurements on the satellite band, but also on the terrestrial band channels. In order to meet the changing needs of individual users, the equipment allows them to easily add new options, with no need to send the meter back to the factory.
Wi-Fi and Bluetooth connectivity
Wireless access to the meter
Equipped with 2.4/5 GHz Wi-Fi and Bluetooth, the equipment allows a secure access through an Android or iOS device, or a PC. The web management application H30Suite (ref. 100016) may be used to check and export stored measurements, access to quality profiles, meter settings cloning, meter registration through a friendlier interface or real-time consultation of the user manual.
Ready to Capture
signal from any satellite
H30Evolution allows you to configure the parameters required for the reception of your satellite signal. To do this, H30Evolution allows pre-amplifier powering, and configuration of both DiSEqC and SCR parameters.
Meter from H30 series: How to choose the most convenient model?
The H30 series consists of different customizable multistandard meters, all of them designed to carry out installation, maintenance and monitoring of telecommunications networks. Each model stands out for offering new functionalities, while preserving all the advantages of the previous model.
Through the following comparative table, it is possible to choose the most suitable meter model for each professional:
| H30FLEX | H30EVOLUTION | H30CRYSTAL | ||
| Multi-standard customizable | • | • | • | |
| Frequency range | Return P.: 5-50 MHz |
X | X | • |
| Terrestrial: 50-880 MHz |
• | • | • | |
| Satellite: 250-2400 MHz |
• (up to 2200MHz) |
• | • | |
| Screen | 2.8” TFT 400 x 240 full color | |||
| Multi-screen with touch control on mobile device | X | • | • | |
| Smartphone armband | X | • | • | |
| 2,4 / 5GHz WiFi connectivity | X | • | • | |
| WiFi analyzator | X | •(*) | •(*) | |
| Bluetooth connectivity | X | • | • | |
| Ethernet interface | • | • | • | |
| USB interface | USB (A-type) | |||
| Optical measures | X | X | • | |
| Guided satellite pointing | X | • | • | |
| IPTV analyzator | X | •(*) | •(*) | |
| HEVC displaying | on the meter | X | X | •(*) |
| on the mobile device | X | •(*) | •(*) | |
| LNB Wideband compatible | X | • | • | |
| Terrestrial input level to 120dBμV | •(**) | •(**) | •(**) | |
| dCSS compatible | •(**) | •(**) | •(**) | |
| Management interface access (datalogs, channel plan...) | Cable Ethernet | Wireless (WiFi/Bluetooth) Ethernet cable |
||
| Dimensions | 175x100x52 mm | |||
| Weight | 510 g. | 510 g. | 550 g. | |
| Color | Black & White | Black & Grey | Light & dark grey | |
| * According to reference ** Free activation of the options with the meter registration |
||||
