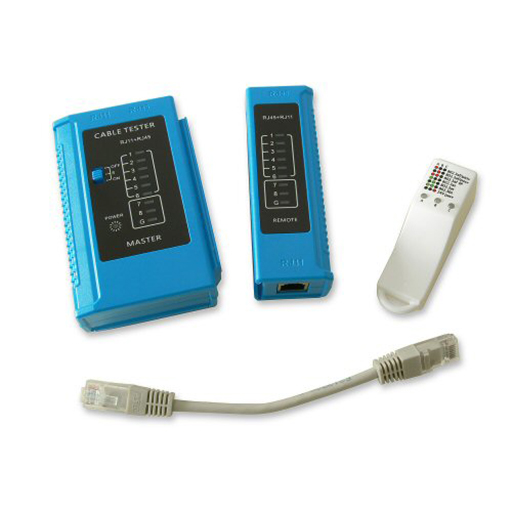

The Compact Network testing kit with added Power Over
Ethernet Checker that can determine what ports or Wall sockets in a building have live
Ethernet as well as the usual pin out tester.
- Including LAN tester with remote , POE Checker , test cord and carry case
- Test Pin Out status on structured wiring systems
- Determine presence of live Ethernet cabling

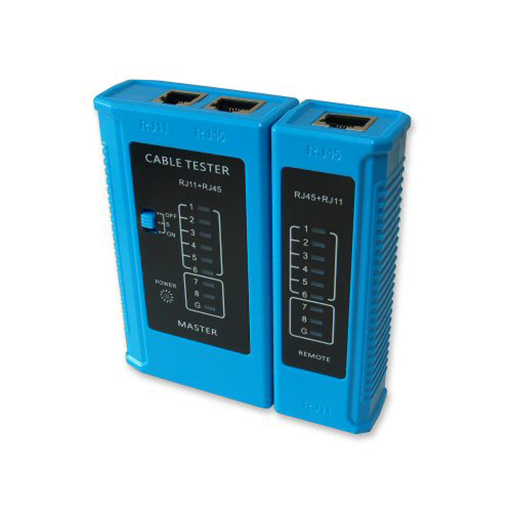

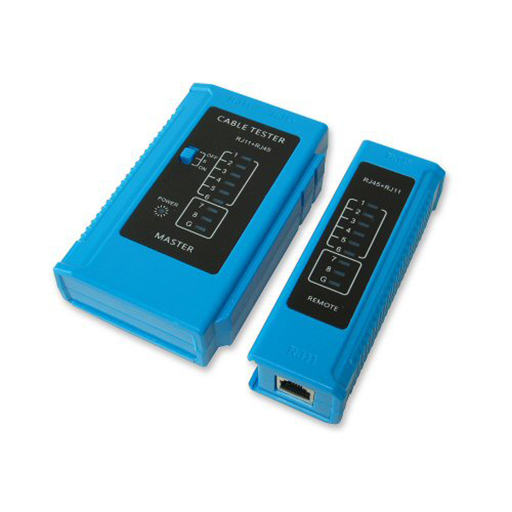

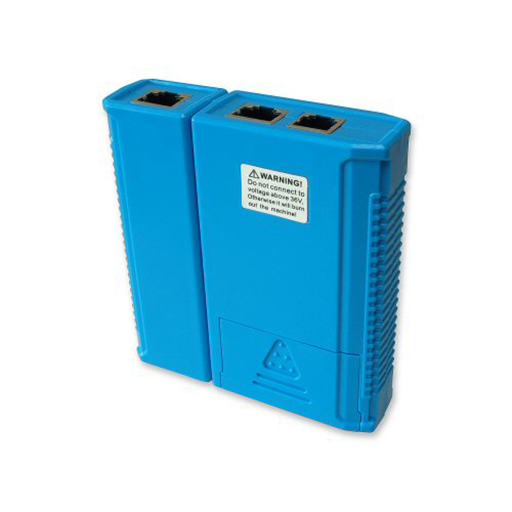

Structured Wiring Cable TesterEconomically priced for confirmation of wiring connection status on
RJ45 based networks. Includes master and remote in a handy carry pouch. Sometimes known as a LAN tester in the trade. Will locate short circuit , open circuit and wrong connection using the attached remote. Has two speeds for testing.
@ Confirms connection and pin out status on RJ45
based systems like
CAT5e , CAT6 and
CAT6A ,
RJ45 to RJ45
RJ45 to RJ11
RJ11 to RJ11
@ Covering both
UTP and
FTP Please Note ; 9Volt PP3 Battery not included. We advise Alkaline MN1604
Power-over-Ethernet CheckerUsefull to determine if a network cable or port is providing Power –over-Ethernet ( PoE)
The LED wil light up if active PoE is detected on the Endspan (pins 12/36) or Midspan (pins 45/78) . The POE Tester is applied to Equipment utilizing the following standards - IEEE 802.3af and IEEE 802.3at POE Plus. - compliant with Voltage within 37-57V
Light sequence as below
- End-Span indicator “light” on - POE Voltage is detected on pins 1,2,3,6
- Midspan indicator “light” on - POE Voltage is detected on pins 4,5,7,8
- No lights on - POE is not detected on the pin outs provided above
SpecificationOperating Voltage 24V AC/DC^60V AC/DC
Operating Current <10mA
Insulation Voltage >1500VAC
CertificationREACH
CE complies EMC and RoSH2
Structured Wiring Cable Tester
Economically priced for confirmation of wiring connection status on RJ45 based networks. Includes master and remote in a handy carry pouch. Sometimes known as a LAN tester in the trade. Will locate short circuit, open circuit and wrong connection using the attached remote. Has two speeds for testing.
Confirms connection and pin out status on RJ45 based systems like CAT5e, CAT6, CAT6A, RJ45 to RJ45, RJ45 to RJ11 and RJ11 to RJ11
Covers both UTP and FTP
Please Note: 9 Volt PP3 Battery not included. We advise Alkaline MN1604
Power-over-Ethernet Checker
Useful to determine if a network cable or port is providing Power-over-Ethernet (PoE)
The LED wil light up if active PoE is detected on the Endspan (pins 12/36) or Midspan (pins 45/78). The POE Tester is applied to Equipment utilizing the following standards - IEEE 802.3af and IEEE 802.3at POE Plus, compliant with Voltage within 37-57V. Light sequence as below
- End-Span indicator light on - POE Voltage is detected on pins 1,2,3,6
- Midspan indicator light on - POE Voltage is detected on pins 4,5,7,8
- No lights on - POE is not detected on the pin outs provided above
